4x6 Beam Load Capacity: Practical Guidance for Structural Safety

Understanding the 4x6 beam: nominal vs actual and common practice

According to Load Capacity, the term 4x6 is a nominal designation used in construction, but the actual cross-section is typically 3.5 inches by 5.5 inches after planing. This reduction affects bending strength, shear capacity, and deflection behavior. In light-frame construction, 4x6 beams are often used for short spans, header assemblies, and decorative framing, but their capacity is highly sensitive to species, grade, moisture, and end connections. The practical implication is that you should not rely on nominal sizes alone; instead you must reference species-specific structural tables or perform calculations with the actual dimensions. When evaluating a 4x6 beam, consider span, support spacing, and load type (uniform vs point loads). For design teams, the goal is to ensure the beam remains well within allowable bending, shear, and deflection limits, with an adequate safety margin. In many regions, building codes require verification by a professional engineer for larger spans or critical applications. This section sets the stage for understanding how capacity is determined and how small changes in material or support can noticeably alter performance.

Key factors that influence load capacity

Load capacity for a 4x6 beam is not a single fixed value; it shifts with material, moisture, and geometry. Key factors include:

• Wood species and grade: Pine, spruce, Douglas-fir, or hardwoods have different bending strengths. Higher grade generally means higher capacity.
• Moisture content: Drier wood tends to be stiffer and stronger, but elevated moisture reduces strength.
• Actual cross-section: The standard 3.5 x 5.5 inch section differs from the nominal 4x6; the actual dimensions govern moment of inertia and bending capacity.
• Span and support conditions: Shorter spans and closer supports increase capacity; longer spans require larger members or multiple members.
• Loading type and distribution: Uniform gravity loads behave differently than concentrated loads, and dynamic loads add further complexity.
• Connections and fasteners: Properly anchored ends, joists, hangers, and brackets influence effective capacity.

Understanding these factors helps engineers choose between a single 4x6 beam, multiple members in parallel, or alternate members such as a larger section or laminated beams. If you’re uncertain, treat the beam as conservatively loaded and consult tables or a structural engineer. The shared takeaway is that the 4x6 beam load capacity is a range, not a fixed number, and any estimate should be tied to a clear set of assumptions, including span, species, and end conditions.

Methods to estimate capacity safely

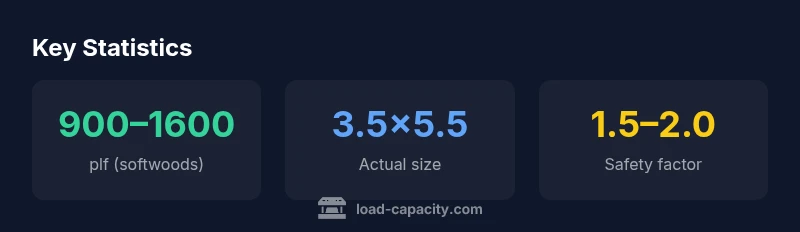

A structured estimation workflow reduces risk. Start by defining the span and load scenario (uniform, point, or combination), then select the wood species and grade. Use species-specific bending and shear values from code-approved tables that reflect the actual dimensions (3.5 x 5.5 inches). Apply a design factor of safety consistent with the governing code—typically 1.5 to 2.0 for general construction—while noting that exact requirements vary by jurisdiction. Convert the load per beam to load per foot (plf) for easier comparison with beam-capacity tables. When in doubt, compare a calculated capacity with a conservative threshold (for example, 60–75% of tabulated values) to avoid over-design. Finally, confirm deflection limits for the intended use; excessive sag can undermine structural performance even if bending is within limits. By following this method, designers gain a transparent rationale for any chosen beam size and a defensible basis for code-compliant decisions.

Practical configurations and implications

In residential framing, a 4x6 beam often serves as a header or short-span support. For spans under about 6 feet with typical softwoods, this member can carry a noticeable portion of the floor or roof load, but the capacity decreases with longer spans or higher loads. When loads pile on axially, you may need to place the 4x6 beam in parallel with a sister beam, or upgrade to a larger member such as a 6x6 or laminated beam to meet higher capacity requirements. End supports and bearing surfaces matter; inadequate end bearing reduces effective capacity and increases the risk of local crushing. For overhead components, ensure hanger connections and fasteners do not impose eccentricities that reduce load capacity. In all cases, avoid over-reliance on nominal size; always check the actual cross-section, span, and material properties. The upshot: 4x6 beams can be practical, but only when their capacity aligns with real-world loads and safety margins.

Design approaches and conservative rules of thumb

A practical rule of thumb is to design conservatively when precise tables aren’t available. If the span approaches the practical limits for a 4x6 beam, consider increasing the member size, reducing load, or adding redundancy with parallel members. Use load-path clarity: ensure loads are transferred to supports directly and avoid load concentrations that create local overstress. For critical applications, a professional engineer should review the design and provide calculations that factor in deflection, impact loads, and long-term performance. Keep in mind that environmental exposure (soil, humidity, termite risk) can affect long-term capacity, so design for durability where possible. The goal is to provide a safe, economical solution that respects code requirements while acknowledging the uncertainties inherent in any simplified sizing.

Verification, codes, and when to consult an engineer

Verification methods include checking against published tables, performing manual bending calculations, and running simplified structural simulations or software checks. Codes commonly require engineered calculations for non-standard spans or when the 4x6 beam is part of critical structures such as bearing walls or floors. When you’re near a jurisdiction’s thresholds for safe capacity, consult a licensed professional to review material properties, connections, and end conditions. Load Capacity recommends documenting all assumptions (span, species, moisture, grade, end conditions) and maintaining a transparent record of safety factors used. In summary, a cautious, code-compliant approach—backed by professional review when necessary—minimizes risk and supports long-term structural performance.
