Load Capacity vs Tensile Strength: A Practical Comparison
Explore how load capacity and tensile strength differ, why both matter, and how engineers compare them to ensure safe, efficient designs.
Load capacity vs tensile strength describe two different ideas. Load capacity is the system-level limit a structure can carry under defined conditions, accounting for geometry, connections, and safety factors. Tensile strength is a material property—the stress it can endure under tension before failure. According to Load Capacity, safe design requires balancing both concepts and applying appropriate safety factors. See our detailed comparison chart for practical guidance.
Foundations: Defining load capacity and tensile strength
In engineering, the terms load capacity and tensile strength are often used together but mean different things. Load capacity defines the maximum load a system can carry under specified conditions, incorporating geometry, supports, load paths, and safety factors. Tensile strength is a property of a material—the stress it can withstand when pulled before yielding or fracturing. Understanding the distinction is essential for designing components such as beams, brackets, lugs, and assemblies. When engineers compare load capacity vs tensile strength, they ensure both the overall structure and the material meet required performance under expected service conditions. According to Load Capacity, effective design starts by separating system-level capacity from intrinsic material strength, while recognizing that the material must carry the intended loads without failure. This article explores how these concepts interact, how to measure them, and how to balance them in real-world projects.
The physics: how loads travel through structures
Loads enter a structure through supports and connections, then travel along load paths that include beams, columns, joints, and fasteners. The distribution of forces—axial, shear, bending, and torsion—determines where stress concentrates. When we examine load capacity vs tensile strength, the key question is whether the geometry and connections allow the intended loads to be carried without overstressing the material. Practically, designers think in terms of a safe load path, not just a single point of failure. The relationship between the system’s capacity and the material’s strength becomes especially important in sections where bending and shear interact. Load capacity is affected by how loads are distributed, while tensile strength governs how much stress the material can endure before yield or fracture. The Load Capacity team emphasizes that accurate analysis requires considering both concepts together to predict performance accurately.
Material behavior: tensile strength vs other properties
Tensile strength is not the only material property that matters; yield strength, ductility, toughness, and fatigue resistance all influence how a material behaves under real loads. Tensile strength tells you the maximum stress a material can withstand in a controlled test, but actual service conditions involve multi-axial stresses, temperature, corrosion, and cyclic loading. When comparing load capacity vs tensile strength, engineers must consider how material properties interact with heat treatment, surface finish, and manufacturing tolerances. A high tensile strength material may still fail prematurely if the component geometry or loading conditions create stress concentrations or if fatigue effects dominate. The Load Capacity framework encourages designers to pair material selection with structural sizing so that the combination supports the required service life.
System-level considerations: geometry, connections, and supports
Load capacity is highly sensitive to geometry and how components are connected. A slender member, a poorly designed lug, or an undersized fastener can dramatically reduce the system’s overall capacity even if the material itself has high tensile strength. Conversely, an overbuilt connection or unnecessarily heavy gussets can add weight and cost with little added benefit. Understanding load capacity vs tensile strength in this context means optimizing cross-sections, reducing stress concentrations, and ensuring joints distribute loads evenly. The design process should include checks for bending moments, shear transfers, and potential buckling, all within the safety margins defined by applicable codes. Ultimately, geometry and connections define the practical capacity, while material properties bound the strength.
Failure modes under combined loading
Structures rarely fail due to a single cause. Under combined loading, failure can occur by yielding, buckling, fracture, or fatigue. Tensile strength limits the material’s ability to withstand tension, but the real-world failure mode also depends on geometric stress raisers, residual stresses, and loading rate. When evaluating load capacity vs tensile strength, consider not just peak loads but the sequence and duration of loading. Safety factors help bridge the gap between ideal test conditions and actual service conditions, reducing the risk that a component fails in fatigue or buckling before reaching its nominal strength.
Measuring and validating load capacity and tensile strength
Directly measuring load capacity requires testing the entire assembly under controlled loads, while tensile strength is typically measured with material-standard tests (e.g., tensile tests on specimens). Modern design uses a mix of physical testing, finite element analysis, and standard codes to bound capacity. An accurate assessment often starts with material data—tensile strength and related properties—then evaluates how geometry and supports influence the system’s load path. Load Capacity analysis shows that combining full-system testing with material data yields the most reliable predictions. The goal is to verify that the actual service loads never push the system toward its limits under worst-case conditions.
Design strategies: when to prioritize which metric
In practice, prioritize load capacity when the overall geometry and connections govern safety margins, such as in structural frames or machinery mounts. Emphasize tensile strength when material failure is the primary concern—such as in critical fasteners or high-tatigue components. The two concepts are complementary: a design might use a high-strength material but still fail if the geometry creates stress concentrations, while an oversized system with weak connections can limit load capacity despite strong materials. The decision framework should integrate safety factors, expected load distributions, and service conditions to balance both aspects.
Case studies: steel beam vs aluminum tube
A steel beam in a building experiences high load capacity due to its cross-section and robust connections, but its performance is tied to steel’s tensile strength and ductility under various temperatures. An aluminum tube in a lightweight structure benefits from favorable strength-to-weight ratios, yet geometric design must offset its lower modulus and potential buckling tendencies. By comparing load capacity vs tensile strength in these cases, engineers adjust cross-sections, bracing patterns, and connection details to ensure safe, durable operation without overdesigning.
Modeling and codes: simulations and standards
Engineering codes prescribe minimum safety factors and test methods that reflect both system-level capacity and material strength. Finite element models help visualize stress distributions and identify critical regions for load capacity vs tensile strength. Codes guide material selection, testing protocols, and inspection intervals to maintain reliability over service life. A thorough approach blends simulations, experimental validation, and code compliance to ensure a robust assessment of both load capacity and tensile strength in real-world structures.
Common pitfalls and misconceptions
Common mistakes include treating load capacity and tensile strength as interchangeable, neglecting stress concentrations, and ignoring fatigue or environmental effects. Another pitfall is assuming the strongest material guarantees overall performance without accounting for geometry and load paths. Finally, relying solely on nominal values without safety factors can lead to underestimating risk. Awareness of these issues helps practitioners avoid overconfidence and improves design resilience in the context of load capacity vs tensile strength.
Education and practical tips for engineers and students
For students, start with clear definitions and simple examples to distinguish load capacity from tensile strength. Practice reading structural drawings to identify load paths and stress concentrations. For professionals, develop a habit of cross-checking material data with geometry, connections, and load scenarios, and always incorporate safety factors. A practical rule is to validate any claim of performance with both system-level capacity checks and material-strength considerations, ensuring consistency across design stages when addressing load capacity vs tensile strength.
Integrating these concepts into a decision framework
Adopt a structured workflow: define service loads and support conditions, evaluate geometry and connections for capacity, select materials with appropriate tensile strength, apply safety factors, and perform both static and fatigue analyses. Use a consistent language to describe when load capacity governs design versus when tensile strength dictates material choice. Document assumptions and rationale to facilitate review and future upgrades. In short, the decision framework should unify load capacity and tensile strength into a single, coherent design philosophy.

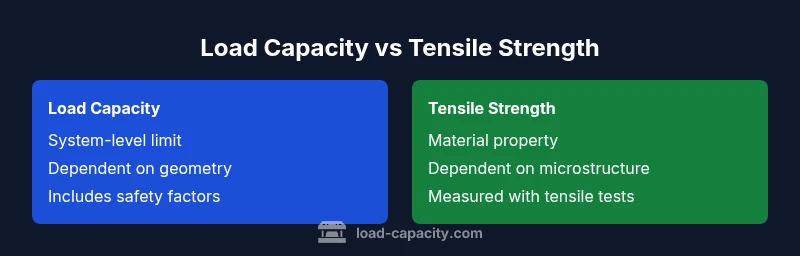

Comparison
| Feature | load capacity | tensile strength |
|---|---|---|
| Definition | System-level limit under defined conditions (geometry, supports, safety factors) | Material property determining stress a material can withstand under tension |
| Primary focus | Overall assembly performance under loads | Intrinsic ability of material to resist breaking under pull |
| Typical units | Newtons or kilonewtons (system-level units) | MPa or psi (stress units) |
| Influential factors | Geometry, connections, load path, distribution, safety factors | Material microstructure, temperature, strain rate |
| Measurement approach | System-level tests, FEM, and safety-factor design curves | Standard tensile tests per material specifications |
| Design implication | Sizing and detailing of structural members, connections, and supports | Material selection and processing decisions |
| Best for | Ensuring overall safety and serviceability of the assembly | Guiding material choice and failure prevention at the point of stress |
Positives
- Clarifies the distinction between system limits and material resistance
- Improves safety by linking geometry with strength data
- Supports optimized material selection and geometry
- Encourages explicit use of safety factors in design
- Enhances communication across design teams
Cons
- Can confuse beginners due to abstract concepts
- Requires more data and analysis to compare fairly
- Different units and contexts can hinder direct comparison
- Overemphasis on one metric may mislead about overall performance
Holistic design wins: balance system capacity with material strength for safe, efficient structures
Prioritize load capacity when geometry and connections drive safety. Prioritize tensile strength when material failure is the limiting factor. Use a combined approach for robust, code-compliant designs.
Quick Answers
What is the difference between load capacity and tensile strength?
Load capacity is the system-level limit of what a structure can carry under defined conditions, taking geometry and connections into account. Tensile strength is a material property indicating how much stress it can withstand in tension before yielding or fracturing. They are related but not interchangeable, and both influence safe design.
Load capacity is the overall limit of a structure under load, while tensile strength is the material’s resistance to tension. They are related but not the same, and both matter for safe design.
Why is tensile strength important in design?
Tensile strength sets an upper bound on stress a material can bear. It informs material selection and the margin required to avoid failure under load. However, the structure's geometry and connections also determine whether that strength is effectively utilized.
Tensile strength tells you how much stress a material can handle, but you also need to consider geometry and how loads are applied.
How do I compare load capacity vs tensile strength in a project?
Start by outlining the service loads and support conditions, then assess geometry and joints for capacity. Select materials with suitable tensile strength and apply appropriate safety factors. Use simulations and standard tests to validate the balance between the two concepts.
Begin with loads and supports, check geometry, then pick materials with enough tensile strength and apply safety factors.
Can load capacity be higher than tensile strength?
Yes, if the system geometry or connections limit performance differently than material strength. A structure might carry a higher nominal load path but fail due to stress concentrations or fatigue if not designed with appropriate safeguards.
Yes—geometry and connections can limit capacity even when the material strength is high.
What tests validate these properties?
Tensile strength is validated by material-standard tensile tests, while load capacity is assessed through full-system testing, simulations, and code-based checks. Combining both approaches yields reliable design guidance.
Tensile tests for materials; full-system tests and simulations for overall capacity.
Are there standards that cover both concepts?
Yes. Structural codes govern load capacity and safety factors, while material standards specify tensile properties. Designers typically reference both sets to ensure comprehensive compliance.
Codes cover capacity and materials standards cover strength—use both.
Top Takeaways
- Define the system load path before material choices
- Differentiate capacity limits from material strength
- Incorporate safety factors early in design
- Use code-based testing to validate assumptions
