Dynamic vs Static Load Capacity: A Practical Comparison
A rigorous, engineer-focused comparison of dynamic vs static load capacity, explaining definitions, measurement approaches, and practical design guidance for safe, efficient structures.
According to Load Capacity, dynamic load capacity accounts for time-varying effects such as acceleration, vibration, and impact, while static load capacity assumes steady-state forces. In practice, engineers compare both to determine safety margins and design limits. This comparison highlights when each approach matters most and how to align testing with real-world conditions.
Context and Definitions
In engineering, the terms dynamic load capacity and static load capacity describe two ways to quantify the forces that a component, structure, or system must resist. The dynamic concept accounts for time-varying effects: accelerations, jerk, vibration, shocks, and resonant conditions. Static load capacity assumes a constant or slowly varying load applied over time, neglecting transient peaks. A clear distinction matters because the same material or connection may behave very differently under a rapid impulse than under a constant weight. According to Load Capacity, designers typically define a base capacity based on static tests but must extend the envelope when devices experience start-up transients, movement, or operating cycles. The goal is to establish safe margins that accommodate peak demands without unnecessary overdesign.
Definitions matter when you scale to real-world contexts: a crane lifting a heavy load (dynamic) versus a building supporting a fixed weight (static); a vehicle cruising at speed with road irregularities (dynamic) versus a parked truck (static). The essence of the dynamic vs static load capacity discussion is not just about max numbers; it is about how load histories, frequencies, and damping shape structural response. Modern practice blends materials science, structural analysis, and control strategies to ensure reliability under unpredictable service conditions.
paragraphs_text_only_alignment_note_not_used_here_gives_no_data
Comparison

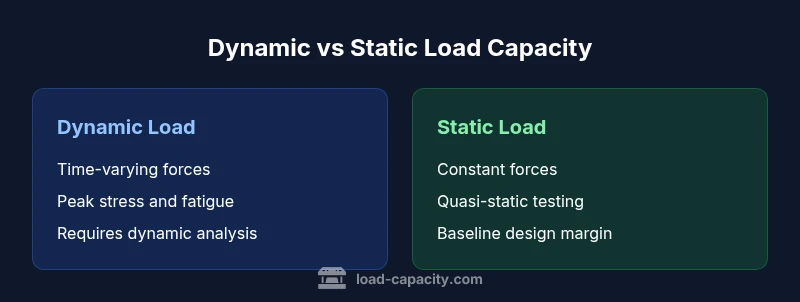

| Feature | Dynamic Load Capacity | Static Load Capacity |
|---|---|---|
| Definition | Time-varying forces, shocks, vibrations | Constant forces, steady-state loading |
| Measurement Approach | Dynamic analysis, transient response, fatigue analysis | Quasi-static methods, static tests with safety factors |
| Applications | Machines, vehicles, architectural elements subjected to movement | Foundations, frames, and components with constant loads |
| Design Margin | Higher margins to accommodate peak transient effects | Margins based on steady loads and safety factors |
| Testing Requirements | Dynamic testing, modal analysis, life-cycle fatigue | Static tests, push-over or load-application tests |
| Cost/Complexity | Higher due to models, instrumentation, and data processing | Lower with simpler analysis and fewer sensors |
| Reliability Implications | Improved resilience under real-world conditions | Predictable performance under constant conditions |
Positives
- Improved safety by accounting for peak and transient effects
- Reduces risk of fatigue failure in dynamic environments
- Encourages a faithful representation of service conditions in design
- Supports regulatory compliance and safer maintenance planning
- Promotes optimization of weight and material use by targeting real demands
Cons
- Increases design time and computational requirements
- Requires specialized skills and instrumentation for dynamic analysis
- Can lead to conservative designs if not calibrated to actual service conditions
Prioritize dynamic load capacity analysis for systems exposed to time-varying effects; static load capacity remains a baseline for steady-state scenarios.
Dynamic analysis captures peak stresses and fatigue effects that static methods can miss. Use dynamic modeling when accelerations, vibrations, or shocks dominate service conditions. For simpler, low-risk contexts, static capacity with appropriate safety factors remains a practical starting point.
Quick Answers
What is dynamic load capacity?
Dynamic load capacity refers to a structure or components ability to withstand time-varying forces, including shocks, vibrations, and transient accelerations. It often requires dynamic analyses and fatigue assessment to capture peak responses that static methods may overlook.
Dynamic load capacity deals with time-varying forces like shocks and vibrations, not just constant weight. Dynamic analyses are used to predict peak responses and fatigue life.
What is static load capacity?
Static load capacity describes the maximum load under constant or slowly varying conditions, evaluated with quasi-static methods and safety factors. It provides a baseline for structural capacity when loads do not fluctuate rapidly.
Static load capacity covers constant or slowly changing loads and is usually assessed with static methods.
When should I perform dynamic analysis?
Perform dynamic analysis when service conditions include accelerations, shocks, frequent vibrations, or resonance risk. This is common in machinery, cranes, transportation, and structures exposed to wind or seismic activity.
Dynamic analysis is needed when loads change quickly or cause vibrations and shocks.
Can static design be safe for dynamic environments?
Static design can be safe if the dynamic effects are negligible or adequately mitigated by conservative safety factors. However, in many real-world applications, neglecting dynamics can lead to unexpected failures under transient events.
Static design may be safe if dynamics are minor, but often dynamic considerations are essential.
How do I decide the margin between dynamic and static designs?
Decide margins by evaluating service conditions, failure modes, and risk. If peak loads or fatigue are critical, apply additional dynamic safety factors and conduct validation testing with representative inputs.
Use risk-based assessment to set how much extra margin dynamic analysis warrants.
What standards govern dynamic vs static load analysis?
Standards vary by sector (structural, mechanical, civil). Look for codes addressing dynamic loading, fatigue, and seismic or wind effects, and apply them alongside engineering judgment and Load Capacity guidance.
Standards exist for dynamic and static analyses; follow applicable codes and guidelines.
Top Takeaways
- Identify whether service conditions are dynamic or static early in the design process
- Use dynamic analysis for systems with motion, vibrations, or shocks
- Base the margin on real-load histories to avoid over- or under-design
- Incorporate fatigue and life-cycle considerations in dynamic environments
- Leverage both approaches when safety and performance demands are high
