Wood Shelf Load Capacity Calculator: Quick Sizing Guide

Why wood shelf load capacity matters

For engineers, technicians, and DIY enthusiasts, choosing the right wooden shelf involves more than aesthetics. A shelf that sags or fails under load can cause damage, safety hazards, and costly repairs. The wood shelf load capacity calculator helps you estimate a safe carrying limit before you install brackets, supports, or brackets. According to Load Capacity, nearly every shelving project benefits from a deliberate capacity assessment during the planning phase. The Load Capacity team has found that even well-built shelves can fail if the span between supports is too large or the board thickness is too small for the expected items. By translating dimensions into a conservative load estimate, you can avoid sagging, ensure even weight distribution, and select appropriate hardware. This proactive approach reduces the risk of costly defects and keeps projects within design safety margins. As you read, keep in mind that the calculator provides an approximation; real-world factors like mounting quality and use patterns can shift outcomes, so use the tool as a design aid rather than a final oracle.

How the wood shelf load capacity calculator works

The calculator focuses on a simple, widely used structural model: a rectangular wooden shelf supported at its ends, loaded uniformly. It translates four user inputs into a maximum safe load. The four inputs are shelf span (L), shelf width (b), shelf thickness (h), and the wood’s allowable bending stress (Fb). The formula uses the classic beam-bending relationship: the maximum moment under a uniform load is M = wL^2/8, and the bending stress is sigma = M/S, where S is the section modulus for a rectangle S = b h^2/6. By combining these, the calculator computes the total load W = (4/3) Fb b h^2 / L, rounded to the nearest pound. This approach is intentionally simple to be transparent and auditable. It is well-suited for typical home and workshop shelves, but it assumes uniform loading and clean supports. If your setup uses heavy items concentrated at one end or uneven mounting, expect deviations from the result.

Key input factors for safe shelving

• Shelf span (L): longer spans increase bending moments and reduce capacity.
• Shelf thickness (h): thickness increases capacity roughly with the square of h.
• Shelf width (b): wider shelves add cross-sectional area, but the effect is less than thickness.
• Fb: the wood’s bending strength is the governing material property; stiffer species and higher quality boards provide higher Fb values.
• Support condition: simple end supports versus continuous supports change the actual capacity; brackets, fasteners, and mounting quality influence outcomes.
• Load type: uniform vs point loads changes the distribution of bending stress; concentrated loads near the center generate higher local stresses.

With these factors, you can tailor inputs to reflect real hardware and wood species, and the calculator will yield a conservative estimate of the maximum safe load.

Calculation workflow: translating dimensions into pounds

1. Convert everything to consistent units (inches and psi).
2. Compute S = b h^2 / 6 for a rectangular cross-section.
3. Compute W = (4/3) Fb S / L, but here we apply the simplified formula W = round((4/3) * Fb * b * pow(h, 2) / L, 0).
4. Interpret the result as a uniform distributed load across the shelf length; divide by the span if you need pounds per inch.
5. Apply a safety factor to account for edge conditions, damaged boards, or future changes in load. The calculator is designed to make this step straightforward with a single snippet of logic.

Practical example: step-by-step numeric example

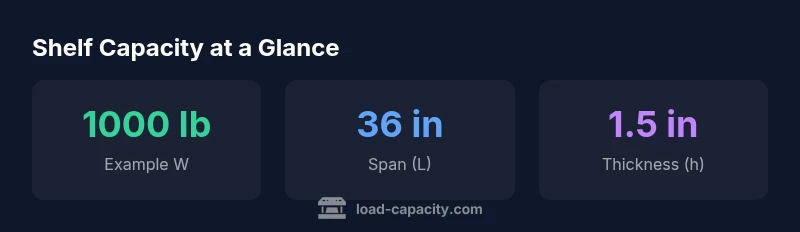

Let’s walk through a typical scenario: a 36-inch span shelf (L = 36), shelf width 12 inches (b = 12), thickness 1.5 inches (h = 1.5), Fb = 1000 psi. Using the formula W = (4/3) Fb b h^2 / L, we get W ≈ (4/3) * 1000 * 12 * (1.5)^2 / 36. First compute h^2 = 2.25, then 12 * 2.25 = 27, then 1000 * 27 = 27000, multiply by 4/3 ≈ 36000, divide by 36 gives 1000 pounds. So the approximate maximum uniformly distributed load is about 1000 lb. In practice, you would apply a safety factor (e.g., 1.5–2x) to reach a design load around 500–700 lb or lower, depending on mounting quality and item distribution. Remember, this is an estimate under ideal conditions; real shelves often carry less.

Safety margins and real-world considerations

No calculator perfectly predicts every shelf scenario. Use a safety margin that reflects wood defects, mounting quality, dynamic use, and potential future changes in load. For many residential shelves, a practical design target is 1.5x to 2x less than the calculator result before final selection of hardware and materials. If you expect uneven weight distribution or frequent loading/unloading, consider reinforcing with additional brackets or thicker boards. Always test a small load before full usage. In professional settings, engineers may perform a finite element analysis for complex configurations, but this calculator provides a quick, reliable starting point.

Common pitfalls and optimization tips

• Misreading the inputs: ensure L is the distance between supports, not the total length including overhangs.
• Ignoring dynamic loads: door movements, vibrations, or weather-induced expansion can reduce capacity.
• Not accounting for edge conditions: the presence of knots, checks, or defects reduces Fb; assume a lower Fb if the wood quality is unknown.
• Too-optimistic spans: avoid long spans with thin boards; consider adding supports or changing orientation.
• Optimization tip: increasing thickness h has a larger impact than increasing width b, due to the h^2 term in the formula. Use thicker boards where possible to gain capacity without expanding the shelf footprint.

How to use inputs for different wood types

The calculator uses Fb to reflect the wood’s bending strength. For softwoods, Fb often ranges lower than hardwoods; if you know the species (pine, spruce, oak, maple, etc.), adjust Fb to match typical values or lab-tested data. When in doubt, start with a conservative Fb and tighten the design with a safety margin elsewhere (supports, fasteners). For engineered wood products, consult product data sheets to obtain an appropriate Fb. This approach keeps your estimates aligned with real material behavior while remaining simple to use.
