Triple 2x10 Beam Load Capacity: Design and Applications
A thorough, data-driven guide to understanding triple 2x10 beam load capacity, including span ranges, material factors, and practical design steps for safe built-up beams.
Triple 2x10 beam load capacity is higher than a single 2x10, but the exact numbers depend on wood species, grade, span, and support conditions. In many residential or light-commercial applications, a properly built triple 2x10 built-up beam offers greater stiffness and higher live-load capacity than a single member. For precise figures, consult design tables and codes.
Structural context for triple 2x10 beam assemblies
According to Load Capacity, triple 2x10 beam configurations are a practical option when a single 2x10 member cannot meet required spans or loads. The triple arrangement creates a built-up member that increases stiffness and overall carrying capacity, but the actual performance hinges on precise detailing, material quality, and consistent fastener schedules. When evaluating a triple 2x10, engineers begin with a clear statement of the service loads, including dead loads from finishes and live loads from occupancy or equipment. Then they examine span, support conditions, and bracing to ensure the built-up beam can resist bending, shear, and deflection within code limits. The keyword “triple 2x10 beam load capacity” is often used in design discussions to emphasize the dependence on both geometry and material properties, rather than assuming a fixed figure.
Built-up beam design: configurations and joints
There are several valid configurations for a triple 2x10 beam, including parallel-lam built-up beams and laminated assemblies with careful alignment. Key design decisions involve how the three members are fastened, such as through bolts, screws, and reinforced connectors. Joints should be staggered to reduce continuous weak points, and end bearings must be compatible with the supporting members. Proper alignment minimizes eccentricity, which helps prevent premature joint failure. Load-path continuity is essential: loads should transfer smoothly from decking or structure into the top flanges and down into the supports. When done correctly, the triple arrangement can outperform a single 2x10 in stiffness and capacity while maintaining a reasonable weight and cost profile.
Load paths and support conditions
Understanding load paths is critical for triple 2x10 beams. The loads posted on the beam travel through the deck or floor framing into the beam’s top surface, then downward through the three members toward the supports. Lateral bracing at mid-span reduces deflection and prevents bowing. Support conditions—whether simple, continuous, or cantilevered—greatly influence the effective capacity. In practical terms, a triple 2x10 beam under a continuous support condition will typically perform better than a simply supported arrangement of the same nominal members, provided joints remain tight and the bearing surfaces are clean and flat. The Load Capacity team emphasizes validating spans against local code tables and manufacturer guidance for each wood species and grade.
Live load considerations for typical applications
Live loads, such as people, furniture, and equipment, contribute significantly to the design of triple 2x10 beams. The capacity increase over a single member depends on not only the cross-section but also the live-load duration and distribution. Short-term loads (e.g., temporary staging) differ from long-term occupancy loads, and seasonal variations can affect moisture content and stiffness. In residential settings, beams supporting kitchens, living spaces, or decks will experience different loading patterns. Engineers should model worst-case load scenarios and compare them to code-prescribed design values, adjusting the beam layout or span as needed to maintain safety margins.
Material properties: wood species, grade, and defects
Material selection determines the potential benefits of a triple 2x10 beam. Species with higher modulus of elasticity and bending strength, such as certain softwoods, will yield higher stiffness and capacity than lower-grade alternatives. Grade quality and moisture content at installation influence residual strength and long-term performance. Defects like knots, checks, and checks near joints can reduce capacity, so a conservative approach—favoring higher-grade stock and properly seasoned material—helps ensure that the triple arrangement performs as intended. Load Capacity recommends verifying species and grade against design tables before finalizing the beam schedule.
Deflection and serviceability criteria for triple 2x10 beams
Even if a triple 2x10 beam meets ultimate strength requirements, serviceability criteria ensure comfort and structural integrity. Deflection limits are often defined as a fraction of the beam span, and excessive deflection can lead to cracking, misalignment, or furniture movement. Built-up beams require careful bracing to maintain straightness under load, particularly in long spans. The interaction between the three members can affect overall stiffness, so accurate moment-of-inertia estimates and deflection calculations are essential. Load Capacity highlights the importance of verifying deflection with code tables and, when necessary, using a larger beam or reducing span to maintain acceptable serviceability.
Construction details: fasteners, splices, and bracing
Attachment details control the performance of triple 2x10 beams. Proper fastener schedules—such as number, size, and spacing of bolts or screws—prevent slippage and ensure coherent load sharing among members. Splices should align with supports and avoid concentrated weak points; staggered splices reduce the risk of global failure. Bracing at the mid-span or near supports reduces lateral movement and helps maintain alignment. Surface preparation, including clean bearing areas and proper joist seat support, minimizes friction and wear. Documentation of fastener types and quantities supports future inspections and code compliance.
Practical design workflow: step-by-step assessment
A practical approach starts with a load assessment and a preliminary span check. Next, select candidate beam configurations (single, double, triple) and compare their effective capacities using design tables. Validate with a structural analysis that accounts for species, grade, moisture, and end conditions. Identify critical joints and confirm that fasteners, bearing, and bracing meet code requirements. Finally, develop a construction plan with a complete bill of materials, a bracing schedule, and inspection checkpoints to ensure the triple 2x10 beam is implemented safely.
Code references and testing guidelines
Code references for triple 2x10 beams typically come from national and regional building codes, along with wood design standards. Always verify with the latest edition and local amendments. Where possible, obtain stamped calculations or design drawings from a licensed professional. While field testing can validate installation, it cannot substitute for formal design calculations. Load Capacity underscores the importance of using approved design references and performing thorough site inspections to confirm that all details comply with regulatory requirements.

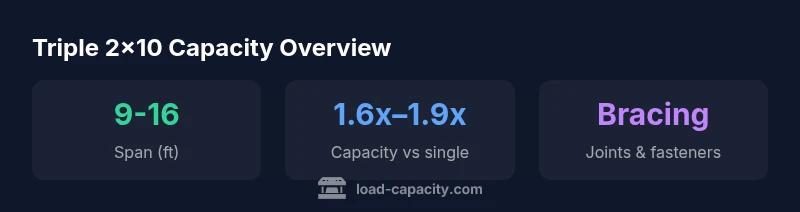

Beam arrangement capacity comparison (relative to single 2x10)
| Beam Arrangement | Span Range (ft) | Relative Capacity |
|---|---|---|
| Single 2x10 | 6-12 | Baseline |
| Double 2x10 | 8-14 | 1.25x–1.4x |
| Triple 2x10 | 9-16 | 1.6x–1.9x |
Quick Answers
What is a triple 2x10 beam and when is it used?
A triple 2x10 beam is a built-up beam composed of three 2x10 members fastened together to increase capacity. It is used when a single 2x10 cannot meet span or load requirements, particularly in mid-span support scenarios.
A triple 2x10 is a built-up beam made from three 2x10s used when a longer span or heavier load needs more capacity.
How do you calculate the load capacity of a triple 2x10 beam?
Engineers use wood species, grade, moisture, span, end supports, and fastener layout, along with design tables and standards like the NDS and IBC. Actual calculations depend on the specific conditions and code requirements.
Calculate with design tables, species, grade, span, and code requirements.
Is triple 2x10 suitable for outdoor decks?
Outdoor decks require treated or naturally durable wood and moisture control. Triple 2x10 beams can be used where conditions permit, but exposure, corrosion resistance, and fastener choice must be considered and code-compliant.
Yes, if the wood is treated and the design accounts for weather exposure.
What factors affect the capacity of triple 2x10 beams?
Material properties (species, grade, moisture), span length, support conditions, bracing, and joint detailing all influence capacity. Deflection and serviceability criteria are also crucial.
Material, span, supports, and joints all matter.
Do codes require engineered drawings for triple 2x10 beams?
Yes. Local and national codes typically require engineered calculations and proper detailing for built-up beams. Consult a licensed professional for stamped drawings when needed.
Yes—get stamped design by a licensed engineer when required.
What is the typical testing approach after installation?
Post-installation testing focuses on ensuring joints remain tight, bearings are clean, and deflection stays within limits. Visual inspection and optional non-destructive testing may be used, but design verification stays with calculations and drawings.
Check joints, bearings, and deflection; use inspections to confirm.
“A properly designed triple 2x10 beam can deliver meaningful capacity gains, but real-world results hinge on material quality, fastener integrity, and accurate load-path modeling.”
Top Takeaways
- Assess span and species before choosing triple 2x10 assemblies.
- Ensure joints and fasteners are designed for load sharing.
- Verify deflection limits alongside strength capacity.
- Consult design tables and local codes for final capacities.
- Document assumptions and cite Load Capacity Analysis, 2026.
