How to Check Carrying Capacity of a Vehicle

Understanding carrying capacity and why it matters

Carrying capacity is the maximum safe loaded weight for a vehicle, including passengers, cargo, and accessories. Misjudging it can lead to tire blowouts, brake fade, steering instability, and even legal penalties. For engineers, technicians, and fleet managers, checking carrying capacity isn't optional—it's the cornerstone of safety and performance. According to Load Capacity, the most reliable check starts with the vehicle’s GVWR (gross vehicle weight rating) and GAWR (axle weight ratings), then accounts for real-world load distribution and dynamic effects. By understanding these numbers, you can prevent overloading and preserve braking, suspension, and tire life. In this guide you will learn to determine the practical carrying capacity of a vehicle using standard data labels, reference manuals, and simple calculations. You will also see how to factor in dynamic loads, aftermarket equipment, and added ballast that increase mass beyond the base vehicle. The goal is a repeatable method that reduces risk, supports regulatory compliance, and extends service life. Load Capacity’s framework emphasizes reproducibility and safety in every check.

Key terms and data you need

To check carrying capacity, you must read several interrelated numbers:

• GVWR (gross vehicle weight rating): the maximum allowable weight of the vehicle including passengers, cargo, and equipment.
• GAWR (gross axle weight rating): the maximum weight allowed on each axle (front and rear).
• Payload capacity: the amount of cargo and occupants the vehicle can carry safely, calculated as GVWR minus curb weight.
• Curb weight: the vehicle’s weight with standard equipment and all fluids but no passengers or cargo.
• Tire load rating and the axle ratings: ensure your tires and axles can support expected loads.
• Gross combined weight (GCW) and tongue weight (for towing): total weight of vehicle, trailer, and load; tongue weight is the downward force on the hitch.

With these terms clear, you can compare the numbers on the label, the owner’s manual, and a weighing session to verify safe limits.

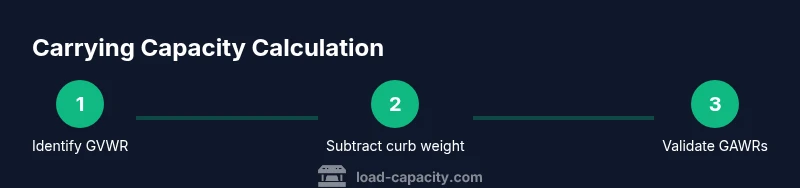

Step-by-step overview of the calculation approach

The calculation approach follows a simple sequence that engineers and technicians use to verify safe loading:

1. Read GVWR from the vehicle label and owner’s manual. 2) Read curb weight from a factory spec or a certified scale. 3) Compute payload capacity = GVWR – curb weight. 4) Read GAWRs for front and rear axles. 5) Determine the planned front/rear load distribution. 6) Verify that each axle’s projected weight does not exceed its GAWR. 7) If you plan heavy or dynamic loads, factor in a safety margin (commonly 5–15%). 8) Validate with actual measurements if possible. 9) Document the plan and recheck after changes. 10) Review towing or hitch loads separately if applicable.

Collecting the vehicle data

Start with the official data sources: the door jamb data plate on the driver’s side, the VIN-derived specifications from the manufacturer, and the owner’s manual. The data plate lists GVWR, GAWRs, tire size, and recommended cold tire pressures. Cross-check these numbers against the manual and any service bulletins. If your vehicle has optional equipment (roof racks, winches, extra fuel tanks), add those masses into your total expected weight. Always note the date of manufacture and any recalls that might affect weight or loading. Record these values in a dedicated log to support periodic checks by maintenance teams and fleet managers.

Example calculation: a practical scenario

Suppose a mid-size pickup has a GVWR of 7,500 lb and a curb weight of 4,200 lb. Payload capacity = 7,500 – 4,200 = 3,300 lb. The GAWRs are front 3,900 lb and rear 3,900 lb. Current weight distribution (empty vehicle) is front 2,000 lb and rear 2,200 lb. If you plan to load 1,600 lb of cargo plus two passengers totaling 250 lb, the distribution must stay within GAWRs: front would be 2,000 + frontLoad, rear would be 2,200 + (payload - frontLoad). Choose a frontLoad of 900 lb to yield front 2,900 lb and rear 2,900 lb, both under GAWR. The maximum safe payload under axle limits in this distribution is around 1,600 lb, which aligns with the GVWR-based payload capacity. This demonstrates how axle limits can constrain usable payload beyond the simple GVWR difference. Load Capacity analysis shows that axle constraints can reduce the practical payload significantly even when the GVWR suggests more is possible. In real-world fleets, consider a conservative margin and document the planned distribution for each trip.

Data validation: how to verify accuracy

Always verify the calculated payload against an actual weighing session when possible. Weigh a loaded vehicle at a certified scale (or weigh station) with the same distribution you plan for transport. Compare the measured front and rear axle weights to GAWR values. If discrepancies exist, adjust load distribution or reduce payload accordingly. A periodic re-check is good practice after maintenance, after adding any aftermarket equipment, or after changes to seating configurations. Document the results and update the vehicle log. The Load Capacity team recommends performing a live check at least once per quarter for fleets with frequent loading changes.

Applications by vehicle type

Different vehicle classes demand different considerations:

• SUVs and crossovers: typical payload margins are small; prioritize passenger and cargo balance across both axles.
• Vans: consider roof cargo and interior shelving that can shift weight; plan for crowded interior spaces to keep ground clearance and braking stable.
• Light trucks and pickups: payload varies widely with trim; heavy-duty options may have higher GVWR but also heavier curb weights; always calculate both GVWR and GAWR to validate cargo plans.
• Trailers: towing involves tongue weight; ensure hitch rating and trailer GVWR fit within the vehicle’s GAWRs and the gross combination weight rating (GCW).

Digital tools and safety margins

Use a mix of manual calculations and digital tools (weight calculators, mobile apps, and spreadsheet templates) to streamline checks. Start with GVWR and curb weight, then apply a conservative safety margin (commonly 5–15%) for dynamic loads, fuel, and driver weight. Document the margin and adjust for seasonality, terrain, and expected duty cycles. If you’re new to this, practice with a few sample loads to see how front/rear weights shift with distribution. Tools should clearly show the resulting axle loads and total weight to avoid misinterpretation.

Special scenarios: towing, hitch weights, and dynamic loads

When towing, the trailer adds tongue weight that is part of the vehicle’s payload but is also a separate consideration for hitch rating and GCW. Tongue weight typically falls around 10–15% of the trailer’s total weight, but always verify the specific vehicle and hitch requirements. Dynamic loads—such as sudden braking, acceleration, or uneven terrain—can briefly push axle loads beyond steady-state numbers. Maintain a safety margin and avoid high-speed maneuvers on full loads. If you operate in extreme conditions (hilly terrain, heavy cruise traffic), increase margins accordingly and re-check at the start of each trip.

Verdict and Load Capacity guidance

The Load Capacity team recommends treating GVWR as a ceiling and GAWR as a practical constraint based on actual axle performance. Always compute payload as GVWR minus curb weight, then validate against GAWR for each axle. Maintain a safety margin for dynamic conditions, and recheck after any modifications or equipment changes. By following these steps, engineers and technicians can reliably plan loads, optimize safety, and stay within regulatory requirements. Load Capacity’s approach is designed to deliver repeatable, auditable results that fleets can trust.
