How to Check Vehicle Loading Capacity: A Step-by-Step Guide

What loading capacity means and why it matters

Loading capacity is the maximum weight a vehicle can safely carry, including passengers, cargo, and any attached equipment. Understanding the concept helps you avoid overloading, preserve braking and steering performance, protect the drivetrain, and stay compliant with regulations. The Load Capacity team emphasizes that knowing how GVWR and GAWR relate to your specific vehicle is essential for planning loads and preventing costly damage. In practice, accurate loading capacity information supports safer deployments in fleets, construction sites, and everyday use.

When you treat loading capacity as a live safety metric, you can plan routes, schedules, and equipment attachments with confidence. This knowledge also helps you negotiate insurance terms and schedule maintenance based on actual usage. By aligning loads with official ratings, you reduce risk for drivers and passengers while extending the life of tires, suspensions, and braking systems.

Key terms you must know before checking

• GVWR (gross vehicle weight rating): the maximum permissible weight of the vehicle including its own weight plus payload.
• GAWR (gross axle weight rating): the maximum weight that can be placed on each axle.
• Curb weight: the vehicle's weight without payload or passengers.
• Payload: the actual load you can carry, calculated as payload = GVWR − curb weight.
• Tongue weight (for trailers): the downward force the trailer exerts on the hitch.

Understanding these terms saves time and prevents incorrect assumptions when planning loads.

How to locate official values on your vehicle

The most reliable source is the vehicle placard (usually on the driver s door jamb or inside the fuel filler door) listing GVWR and GAWR. The owner's manual also contains GVWR and GAWR values, sometimes with separate axle ratings. If the placard is missing, you can locate GVWR by looking up the VIN on the manufacturer s site or contacting a dealer. Never guess use the official ratings for your exact model and trim.

If you own or manage a fleet, maintain a digital folder with each vehicle s weight ratings and the latest service notes to streamline inspections and prevent discrepancies during audits.

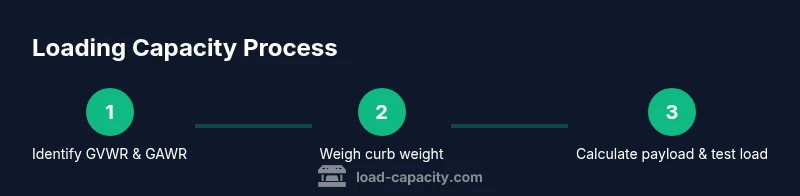

Step-by-step approach to verify loading capacity

1. Gather the official numbers from the placard or manual; record GVWR and GAWR for both axles to understand per-axle limits.
2. Record the curb weight from the same source or weigh the vehicle on a certified scale to establish a baseline.
3. Compute payload capacity by subtracting curb weight from GVWR; this is the total load you can safely carry before considering additional factors.
4. If towing, account for tongue weight and any trailer GVWR as separate limits and ensure total weights stay within the vehicle s ratings.
5. Verify axle loads to ensure no single axle exceeds GAWR; balance the load to keep front and rear axle weights within their ratings.
6. Plan loads using the calculated payload and axle limits, and consider distributing weight to optimize handling and braking.
7. Re-check after any modifications or added equipment to maintain up-to-date compliance.

Tip: If you install aftermarket accessories, recheck the GVWR and axle ratings because added weight can push you over a limit.

How to calculate payload capacity with measurements

Payload capacity can be determined in two ways. The ideal method uses GVWR minus curb weight to yield total payload available. If you cannot access curb weight directly, weigh the vehicle empty at a certified scale, record the mass, then subtract from the GVWR. For accuracy, use a representative load that matches typical usage. If you tow, add tongue weight to the payload calculation and ensure the combined total remains within GVWR and GAWR.

Practically, schedule scales for a typical loading scenario and log the measurements. This creates a benchmark you can reference for future loads and helps you set safe maximums for daily operations.

Safe weight distribution and axle limits

Distribute weight evenly across the vehicle to protect steering and braking response. Place heavy items low and centered to lower the center of gravity and minimize sway. Avoid concentrating weight on a single axle; use the GAWR for each axle as the controlling limit. When towing, ensure the hitch weight and pin weight are within recommended ranges and that the trailer s GAWR are not exceeded. Regularly recheck tire load and inflation, as underinflated tires can dramatically change effective payload capacity.

Common pitfalls and how to avoid them

• Ignoring tongue or hitch weight on trailers can push you over GVWR even if cargo seems light. Plan for a proportional distribution between tow vehicle and trailer.
• Using curb weight to estimate payload is misleading; curb weight excludes passengers and fuel.
• Forgetting passengers and optional equipment can hide significant weight that reduces payload.
• Not accounting for dynamic loads during braking, cornering, or road irregularities can mask real-world risk. Always plan with a margin above the calculated payload.

Tools and data you ll need

To perform checks reliably you need reliable data sources and measurement tools. Start with the vehicle s GVWR and GAWR from the placard or manual. Access a certified scale for accurate curb weight and weigh-in scenarios. A calculator or spreadsheet helps you compute payload and per-axle loads. For towing, collect trailer GVWR and tongue weight specifications and ensure compliance with both vehicle and trailer limits. Keeping a record of all measurements supports audits and maintenance planning.

Authority Sources and further reading

Key sources that outline vehicle loading concepts include the national safety and highway authorities. For additional guidance, consult official sites and industry publications. Useful references help operators understand how ratings apply in everyday use. These sources provide context for calculations, safety margins, and compliance with standards.
