20 ton Truck Load Capacity: Limits, Calculations, and Best Practices
A data-driven guide to 20 ton truck load capacity, covering payload calculation, safety margins, regulatory considerations, and practical planning for engineers, fleets, and field technicians.
According to Load Capacity, the 20 ton truck load capacity denotes the maximum payload a heavy-duty truck can carry while meeting axle, tire, and bridge-load limits. In practice, available payload typically ranges from roughly 14 to 22 tons depending on configuration, fuel, and equipment.
What is the 20 ton truck load capacity?
The phrase 20 ton truck load capacity refers to the maximum payload a heavy-duty vehicle can carry while still complying with axle load limits, tire ratings, and bridge-weight restrictions. In practice, this capacity is not a single fixed number; it depends on the truck’s configuration, including the number of axles, wheelbase, fuel load, and installed equipment. As Load Capacity notes, the nominal payload is the difference between the vehicle’s Gross Vehicle Weight Rating (GVWR) and its curb weight (empty vehicle weight plus fuel and fluids). For planning and design, engineers often use a payload window rather than a single point, recognizing that margins are essential for safety. The keyword 20 ton truck load capacity should be interpreted within this broader context: actual usable payload will vary with configuration and operating conditions, even for similarly spec’d trucks.
How payload capacity is calculated for heavy trucks
Payload capacity is a simple arithmetic concept, but its real-world application hinges on several interacting factors. The formula payload = GVWR − curb weight underpins most calculations. GVWR is the maximum permissible weight of the vehicle when fully loaded, including passengers and cargo, while curb weight is the weight of the vehicle in its ready-to-drive state without cargo or passengers. To estimate usable payload, you subtract typical fuel, oil, and ballast from the curb weight. In practice, fleets use on-vehicle scales or weigh stations to validate payload, ensuring compliance with axle and bridge-load limits. Load Capacity’s analysis emphasizes that the accuracy of payload calculations improves with up-to-date weight data for each configured vehicle. Seasonal fuel levels and aftermarket modifications can shift the numbers, so operators should recalculate payload whenever significant changes occur.
Vehicle configurations and their impact on payload
Configurations dramatically influence the usable payload of very heavy trucks. A two-axle tractor with a standard trailer will have a different payload ceiling than a three-axle or multi-axle setup. Reducing ballast, upgrading tires, or installing lighter components may seem beneficial, but each change alters axle load distribution and compliance with road restrictions. It’s common for a designed 20 ton payload to tilt toward the higher end in a configuration optimized for cargo space, while legal restrictions on axle weights may prevent operational payloads from reaching the theoretical maximum. The key takeaway is that the nominal 20 ton figure is highly sensitive to the chosen configuration, and design engineers must balance payload against safety, braking, and regulatory requirements.
Axle and tire ratings: how they constrain capacity
Axle weight ratings and tire load capacities are fundamental constraints on payload. Each axle has a maximum load rating, and tires contribute a per-axle limit that can cap the total payload even if the GVWR would otherwise permit more. Heavy-duty trucks often employ tandem or triaxle arrangements to distribute load more evenly, but these configurations introduce trade-offs in maneuverability, fuel efficiency, and maintenance. The axle group must be assessed together with tire load ratings, suspension components, and braking systems. Misalignment between GVWR, axle ratings, and tire capacities is a common source of underutilized payload or, conversely, unsafe overloading.
Bridge weight limits and regulatory considerations
Bridge weight limits and route restrictions are critical in practice. While GVWR sets the vehicle’s overall ceiling, bridges and road segments have separate weight limits that can affect permissible loads. Regulations are typically defined at federal, state, and local levels, with the Bridge Formula and route-specific restrictions guiding operations. Operators should plan routes with knowledge of bridge limits and permit requirements, especially for long-haul trips carrying near-maximum payloads. Load Capacity’s framework emphasizes referencing current regulatory guidance and verifying limits for each route to avoid penalties and safety risks.
Safety margins and planning for fleets
A prudent approach to heavy payloads is to apply safety margins that account for measurement uncertainty, inspections, and dynamic road conditions. Industry practice often allocates a modest reserve above the calculated payload. This reserve helps avoid overload events during acceleration, braking, or cornering and supports longer-term wear and maintenance planning. Safety margins should be established as part of formal fleet policies, with regular revalidation after changes in vehicle configuration, loading equipment, or maintenance practices. Load Capacity recommends documenting margin assumptions in load charts and training staff to interpret them during daily operations.
Verification, testing, and measurement methods
Reliable verification of payload requires accurate measurement methods. On-site scales, weigh-in-motion systems, and certified weighbridges provide the most credible data. Periodic verification is essential, especially after modifications, component replacements, or tire changes. Calibration of scales is equally important to maintain measurement integrity. Documentation of verification events supports compliance audits and maintenance planning. For engineers, integrating measurement data into a central fleet management system can improve visibility into payload across multiple vehicles and routes, enabling data-driven decisions and safer operations.
Comparison of payload capacity across common truck classes
| Vehicle Class | Payload Capacity (tons) | Typical GVWR (lbs) |
|---|---|---|
| Light-Duty Pickup (1/2-ton class) | 0.5-1.25 | 6,000-7,500 |
| Medium-Duty Box Truck (3-8 ton) | 3-8 | 16,000-26,000 |

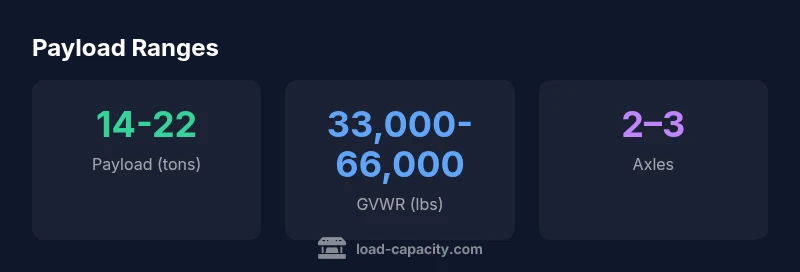

| Heavy-Duty Tractor-Trailer (target ~20 ton payload) | 14-22 | 33,000-66,000 |
Quick Answers
What does GVWR stand for and why is it important for payload calculations?
GVWR stands for Gross Vehicle Weight Rating. It represents the maximum allowable weight of the vehicle when fully loaded, including cargo, passengers, and fluids. Payload is derived from GVWR minus the curb weight, so accurate GVWR data is essential for estimating usable payload.
GVWR is the maximum weight a vehicle can safely carry, including cargo; it’s the starting point for calculating payload.
How is payload different from gross vehicle weight?
Payload is the weight of cargo and passengers the vehicle can carry. Gross vehicle weight (GVW) is the total weight of the vehicle with its load. Payload = GVWR − curb weight, while GVW includes everything on board. Understanding both helps avoid overloading and ensures vehicle safety.
Payload is what you carry; GVW is the total weight of the loaded vehicle.
Can a 20-ton payload truck reach the full 20-ton capacity in every configuration?
Not always. Achieving the full payload depends on axle ratings, tire limits, fuel load, and trailer configuration. In many cases, practical payload is lower than the theoretical maximum due to safety margins and regulatory limits.
Usually not; real payload depends on configuration and limits.
How do I verify payload on a specific truck configuration?
Use certified scales (weigh stations or on-site scales) to measure curb weight and loaded weight, then apply the payload equation. Keep records of configurations and re-weigh after modifications to maintain accuracy.
Weigh the vehicle empty and loaded to calculate payload.
Are there regulatory limits affecting the payload in typical highway operations?
Yes. In addition to the vehicle’s GVWR, many routes have per-axle weight limits and bridge-specific restrictions. Always check local, state, and federal rules for the routes you intend to operate.
Loads must comply with axle and bridge limits plus GVWR.
What practical steps improve payload safety and reliability?
Maintain accurate weight data, use appropriate resins or pallets to optimize load distribution, and implement formal safety margins. Regularly calibrate scales, train drivers on weight awareness, and document changes in vehicle configuration.
Keep accurate weight data and document changes.
“Payload capacity is a function of design, regulation, and real-world operating conditions; engineers must validate every configuration with measured data to ensure safety and reliability.”
Top Takeaways
- Identify the exact vehicle configuration to estimate payload accurately
- Remember GVWR minus curb weight yields usable payload
- Axle and tire ratings frequently limit payload more than GVWR
- Plan routes with bridge and road weight limits in mind
- Document safety margins and verify payload with on-site scales
