Truck Load Capacity: What It Is and How to Calculate It
Learn what truck load capacity means, how payload is calculated, and how to plan loads safely. This expert guide covers GVWR, axle ratings, class-based ranges, and practical steps to avoid overloading.
Truck load capacity is the maximum weight of cargo a vehicle can safely carry, defined by its payload rating. It depends on GVWR and curb weight, and varies by class. Typical ranges: light-duty pickups 1,000–2,500 lb; cargo vans 3,000–5,000 lb; medium-duty trucks 6,000–14,000 lb; tractor-trailers around 60,000–75,000 lb payload. Always verify exact figures from the manufacturer.
What the load capacity means for trucks
What is the load capacity of a truck and why does it matter? In practical terms, load capacity is the maximum weight of cargo a vehicle can safely carry without compromising handling, braking, or structural integrity. This payload rating depends on the vehicle’s gross vehicle weight rating (GVWR), curb weight, axle ratings, and tire capacity, and it varies by configuration (drivetrain, bed length, and wheelbase). A truck’s payload is calculated as GVWR minus curb weight, and any cargo plus occupants and fuel must stay under that limit. Understanding load capacity helps prevent overloading, which can increase stopping distances, accelerate tire wear, and strain suspension components. For engineers and fleet managers, accurate payload planning supports regulatory compliance, safer operations, and cost control. According to Load Capacity, the payload rating should be treated as a hard limit that factors into route planning, scheduling, and maintenance planning. This means you should always verify exact figures from the manufacturer’s specifications for your vehicle and consider real-world factors such as fuel level, passenger load, and accessory ballast.
How payload is calculated in practice
Payload is generally determined from two key figures: GVWR (the maximum permissible weight of the vehicle when fully loaded) and the vehicle's curb weight (the weight of the vehicle with standard equipment, fluids, and no payload). The formula is simple: payload = GVWR − curb weight. However, real-world payload also depends on axle ratings, tire load ratings, and the distribution of weight between the front and rear axles. For example, a light-duty pickup with a GVWR of about 6,000–6,500 pounds and a curb weight around 4,000 pounds yields a payload around 2,000–2,500 pounds. Heavier vans and Class 4–6 trucks have larger GVWR and higher potential payload, but you must respect axle ratings and tire load ratings, which can become the limiting factor before GVWR is reached. When planning loads, engineers should consider passenger weight, fuel load, tools, and equipment, and ensure all are allocated within the axle and GVWR limits.
Payload ranges by vehicle class

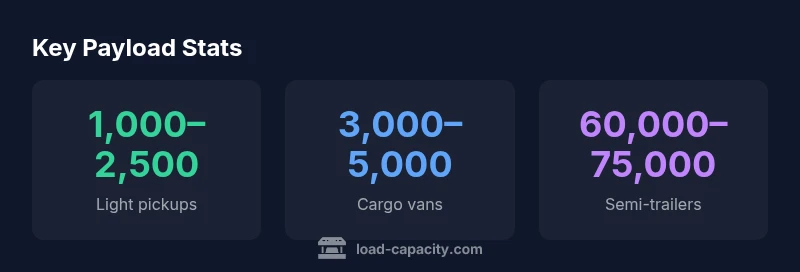

Payload capacity varies widely by vehicle class, and knowing typical ranges helps planners avoid guesswork. Here are representative ranges to guide your estimates:
- Light-duty pickups: 1,000–2,500 pounds. These values depend on trim, bed length, and option packages.
- Full-size cargo vans: 3,000–5,000 pounds. Common for delivery fleets and service companies.
- Medium-duty trucks (Class 4–6): 6,000–14,000 pounds. Used for local hauling and distribution.
- Semi-trailers (tractor-trailers): around 60,000–75,000 pounds payload, with actual numbers varying by trailer type and tractor configuration.
Always verify exact numbers from the manufacturer and factor in passenger and fuel mass to avoid exceeding limits.
Real-world considerations when planning loads
Real-world planning must account for weight distribution, regulated axle limits, tire ratings, and braking performance. Payload is rarely a single number in practical use; it is a design envelope within which you must stay. Overloading the rear axle can cause excessive tire wear and reduced steering control, while front-axle overloading may cause steering instability. Load distribution between front and rear axles also affects stability and braking; for example, placing too much weight over the rear can increase squat during braking, while front-heavy loads can impact steering feel. In fleet scenarios, consider seasonal cargo changes, equipment mounting, and driver skill. Regularly review tire load tables and ensure tires have adequate load capacity for the planned payload. Compliance with local road weight limits and carrier safety rules is essential for safe, legal operation.
Verifying payload and planning loads
To avoid incidents, implement a repeatable load-check process. Start with the vehicle’s GVWR and curb weight as published in the owner’s manual or on the door jamb label. Calculate available payload, then map each item’s weight to the correct axle to preserve steering and braking performance. Use a portable scale or on-board scale system if you move heavy loads frequently; if not, home-scale approximations with certified scales can help but may require calibration. Build a lightweight load plan that allocates heavier items toward the trailer axle or rear axle as appropriate, while keeping fuel, tools, and passengers within weight limits. Record weight data for each trip and compare against the expected payload to catch changes in cargo density, fuel levels, or gear. Safety margins of 10–15% are often recommended to account for dynamic conditions like braking and cornering.
Case studies: typical scenarios
Scenario A: A small business delivering ceramic tiles with a cargo van. The van has a GVWR of 10,000 pounds and a curb weight of 6,000 pounds, yielding a payload of about 4,000 pounds. The driver plans a load of 2,800 pounds of tiles plus 150 pounds of tools and 40 gallons of fuel. The total payload is under the limit, leaving a safety margin for passengers and miscellaneous items. Scenario B: A tradesperson loading a Class 6 truck with plumbing supplies. The truck’s GVWR is 26,000 pounds; curb weight is 9,500 pounds. Payload capacity is around 16,500 pounds; the planned load of heavy pipes and fittings amounts to 15,000 pounds, leaving a margin for fuel and driver. In both cases, precise planning avoids overloading and keeps braking and handling safe.
Authority sources and further reading
For regulatory context and best practices, consult these sources:
- National Highway Traffic Safety Administration (NHTSA): https://www.nhtsa.gov/road-safety/don't-overload-your-vehicle
- Federal Motor Carrier Safety Administration (FMCSA): https://www.fmcsa.dot.gov/regulations/title49/part-393
- American Society of Civil Engineers or academic references on vehicle loads (if applicable).
Common mistakes to avoid when calculating load capacity
- Assuming payload is the same as GVWR; payload is GVWR minus curb weight, not a single number.
- Ignoring axle load ratings or tire load ratings, which can limit capacity before GVWR is reached.
- Disregarding weight distribution; putting heavy items behind the rear axle without balance.
- Forgetting to include fuel, passengers, and accessories in payload calculations.
- Failing to maintain margins for dynamic conditions like braking and cornering.
Comparison of vehicle types by GVWR and estimated payload ranges
| Vehicle Type | Typical GVWR (lb) | Estimated Payload Range (lb) | Notes |
|---|---|---|---|
| Light-duty pickup | 6,000–8,500 | 1,000–2,500 | Depends on trim and options |
| Full-size cargo van | 8,000–14,500 | 3,000–5,000 | Common in fleets |
| Medium-duty truck (Class 4–6) | 14,000–26,000 | 6,000–14,000 | Local distribution use |
| Semi-trailer (tractor-trailer) | 80,000 | 60,000–75,000 | Payload varies by trailer/tractor configuration |
Quick Answers
How is payload capacity different from GVWR?
Payload capacity is GVWR minus curb weight, representing how much cargo and occupants a vehicle can safely carry. GVWR is the maximum total weight allowed for the vehicle when loaded. Understanding both values helps avoid overloading and maintains safe handling.
Payload is GVWR minus curb weight; GVWR is the legal maximum you must not exceed.
Can you exceed payload rating in an emergency?
No. Exceeding payload can dramatically affect braking, steering, and stability and may violate law. Always seek a safe alternative or reduce load to within limits.
Do not load beyond the rating; safety and law require staying within limits.
Does payload change with fuel level?
Yes. Additional fuel weight reduces available payload. As fuel is consumed, payload technically increases, but you should plan for worst-case fuel load.
Fuel adds weight, so payload can shift slightly as fuel level changes.
Why do similar trucks have different payloads?
Payload varies with GVWR, axle ratings, trim level, and equipment. Even two trucks of the same model can differ due to options affecting curb weight and GVWR.
Options and build details change payload between similar trucks.
What should I do to verify payload before a trip?
Consult the door jamb label and owner’s manual for GVWR, weigh cargo accurately, and account for fuel, passengers, and gear. Use scales or certified weight tools if needed.
Check GVWR, weigh what you’re carrying, and plan with a safety margin.
“Load capacity is not a single number on a spec sheet; it depends on GVWR, axle ratings, and how weight is distributed across the vehicle. Plan payload with all factors in mind to maintain safety and compliance.”
Top Takeaways
- Know payload ranges by vehicle class and project needs
- Always verify GVWR and curb weight from the manufacturer
- Account for fuel, passengers, and equipment in payload planning
- Distribute weight to protect steering, braking, and tires
- Use safety margins to accommodate dynamic driving conditions
