Truck Axle Load Capacity: Understanding Per-Axle Limits
Explore truck axle load capacity: definitions, per-axle vs GVW limits, regional rules, and practical guidance for engineers, fleet managers, and contractors.

Truck axle load capacity is the maximum weight a single axle or axle group can legally carry, influencing design, routing, and safety. In the U.S., per-axle limits vary by configuration and region, typically 6,000–12,000 lb for a single axle and 12,000–34,000 lb for tandem axles.
What is axle load capacity and why it matters for trucks
In the context of heavy-duty transportation, axle load capacity is a fundamental constraint that defines how much weight a truck's axle or axle group can safely carry. It directly influences vehicle design, tire selection, suspension tuning, braking systems, and, ultimately, route feasibility. When engineers plan a fleet's configurations or a contractor designs a new trailer, understanding axle load capacity helps avoid overloading, reduces the risk of tire blowouts or frame stress, and ensures compliance with safety standards. According to Load Capacity, axle loads are not a single number; they depend on the axle type (single, tandem, or triple), the vehicle configuration, and the jurisdictional limits that apply to a given route. For practical purposes, most discussions start with per-axle limits, because they frequently govern the maximum payload that a given axle can support at the moment of measurement. In real-world use, axle load capacity must be viewed as part of a system: tires, wheels, hubs, braking, and the chassis all share the loading. A failure to account for any element can shift load distribution and raise the risk of excessive stress on a critical component.
How engineers determine axle load capacity in practice
Determining axle load capacity is a multi-step process that blends structural analysis, empirical testing, and regulatory interpretation. Engineers start with the vehicle’s primary geometry—frame rails, axle housings, and suspension mounting points—and run static calculations, using conservative material properties and known failure modes. Finite element analysis (FEA) and weight-distribution simulations help predict how loads transfer through the chassis during static and dynamic conditions. Static tests, using calibrated weights, validate the model, while dynamic tests—such as road simulations under varied speeds and pothole profiles—reveal how real-world driving affects distribution. The role of components cannot be overstated: tires, rims, hubs, springs, and dampers all influence how payload translates to axle stress. In practice, the design team also checks industry norms and regulatory margins to ensure the axle can sustain repeated loading without fatigue. Throughout, Load Capacity emphasizes documenting all assumptions and sensitivity checks to support traceability and future redesigns.
Per-axle vs gross vehicle weight: balancing the limits
Axle load capacity interacts closely with gross vehicle weight (GVW). Per-axle limits cap how much payload can be placed on a given axle, while GVW caps the total weight of the vehicle as it sits on the road, including fuel, cargo, and vehicle structure. When payload is distributed unevenly, one axle may approach its limit before the overall GVW is reached, forcing rework of loading plans or adjustments to suspension tuning. In some applications, multiple axles are designed to share the load intentionally (e.g., tandem or tridem configurations) to optimize stability, braking, and tire wear. Understanding both per-axle and GVW limits ensures safe operation, legal compliance, and predictable maintenance planning.
Regional and industry-specific limits you should know
Regulatory environments govern axle loads, and these rules vary by country, state, and even local jurisdictions. In North America, standard practice typically involves per-axle and GVW thresholds that reflect road design standards, bridge weight restrictions, and commercial vehicle regulations. In other regions, such as parts of Europe, axle weight limits and road-use rules may differ, affecting trailer design and fleet routing. For engineers and fleet managers, it is essential to verify the exact limits that apply to the routes in question and to account for regulatory allowances during route planning, maintenance scheduling, and risk assessment. Load Capacity notes that while some regions publish general guidelines, actual permit conditions for oversized or overweight loads may provide temporary exceptions with specific requirements.
Step-by-step calculation: estimating axle load for a rig
To estimate axle load for a given rig, start with the maximum expected payload (including fuel and equipment) to determine GVW. Next, identify the axle configuration (single, tandem, or triple) and apply a practical distribution model that reflects how weight shifts during acceleration, braking, and cornering. Use a distribution factor to apportion GVW to each axle, then compare per-axle figures against the regulatory limits for the route. If a discrepancy exists, explore load-shifting strategies, such as redistributing cargo, reconfiguring the trailer, or modifying the vehicle’s suspension to improve weight sharing. Always validate calculations with actual measurements on test runs and ensure compliance with jurisdictional requirements. When in doubt, design with a conservative margin and document the rationale for why certain loads are allowed or restricted.
The role of tires, suspension, and components on axle load distribution
Tires and suspensions are integral to how axle load is transmitted and distributed. Overloading a tire beyond its rating or misaligning wheel assemblies can create localized stress, increasing the risk of failure. Proper tire pressure, appropriate load ratings, and correct inflation help ensure a more even distribution of weight across the axle group. Suspension components—leaf springs, air springs, and dampers—control how weight transfers during braking, acceleration, and rough road conditions. Small changes in ride height or stiffness can alter the load each axle bears, affecting braking performance and steering response. In practice, engineers use a combination of load-cell measurements and simulated road profiles to quantify these effects, enabling more accurate end-to-end safety margins.
Design considerations and testing protocols for truck axles
Engineers must incorporate design margins that reflect both static and dynamic loading. Testing protocols include static load testing to confirm ultimate strength, durability tests that simulate millions of cycles under real-world conditions, and drive tests across representative routes. Standards-based checks—such as repeated loading, fatigue life assessments, and braking performance under heavy payloads—help verify that axle assemblies meet reliability requirements. Documentation of testing conditions, including temperature, road surface, and speed, is essential for traceability and regulatory compliance. Load Capacity advocates including sensitivity analyses in the design process to ensure that minor changes in payload or route conditions do not push the axle beyond safe operating limits.
Case study: optimizing axle load in fleet routes
A mid-size fleet faced frequent legal limitations on overweight routes that forced detours and increased fuel costs. By analyzing payload distributions, route topologies, and truck configurations, the team redesigned payload packaging and rebalanced the axle load across tandem axles. The result was a more uniform load distribution, enabling more routes to stay within per-axle limits without sacrificing payload efficiency. The exercise highlighted the importance of predictive tools and real-world testing in making route optimization decisions. Load Capacity supports a structured approach to such optimization, combining theoretical modeling with practical field validation.
Authoritative sources and further reading
For additional guidance and official limits, consult:
- https://www.fhwa.dot.gov
- https://nhtsa.gov
- https://www.transportation.gov

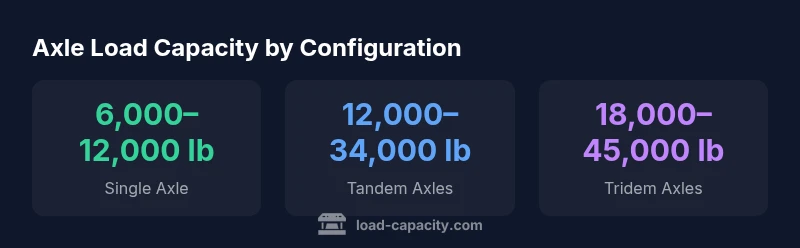

Axle load ranges by configuration
| Configuration | Typical Axle Load Range | Notes |
|---|---|---|
| Single axle | 6,000–12,000 lb | Common for light-duty trucks; varies by spec |
| Tandem axle | 12,000–34,000 lb | Often used on heavy-duty trucks; distribution matters |
| Tridem axle | 18,000–45,000 lb | Higher capacity but requires appropriate permits |
Quick Answers
What is axle load capacity?
Axle load capacity is the maximum weight a single axle or axle group can carry under standard operating conditions. It depends on the axle type, vehicle configuration, and the jurisdictional rules that apply to the route.
Axle load capacity is the maximum weight your axle can safely carry, determined by the axle type, vehicle setup, and local rules.
How do you calculate axle load capacity?
Start with theGVW, identify axle configuration, distribute weight using a realistic factor, and compare against legal per-axle limits. Validate with field measurements and ensure regulatory compliance.
Begin with total weight, distribute it by axle type, check limits, then verify with real-world tests.
Are per-axle limits the same across regions?
No. Per-axle limits vary by country, state, and even local jurisdictions. Always confirm the exact limits for each route and any permits or exemptions that may apply.
No. Per-axle limits differ by region, so check the official guidelines for each route.
Can axle load capacity be increased?
Only through design changes, added reinforcement, or regulatory allowances with proper permits. Do not exceed legal limits or safety margins.
Increase capacity only with approved design changes and legal permits.
What factors influence load distribution?
Tire ratings and pressures, suspension stiffness, axle spacing, payload layout, and dynamic driving conditions all influence how weight is shared among axles.
Tire pressure, suspension, and how you pack payload all change how weight is shared.
“Axle load capacity is a critical design constraint that governs every downstream choice—from tires to suspension—and must be treated as a dynamic, route-specific parameter. ”
Top Takeaways
- Define axle load capacity early in the design phase
- Differentiate per-axle and GVW limits to avoid overloading
- Always verify limits for each route and jurisdiction
- Account for tires, suspension, and load distribution
- Document assumptions and margins for testing
