Truck Wheel Load Capacity: A Practical Guide for Engineers and Fleet Managers
Comprehensive guide to truck wheel load capacity, covering per-wheel limits, axle ratings, measurement methods, and practical planning for safe payload distribution across common truck classes.

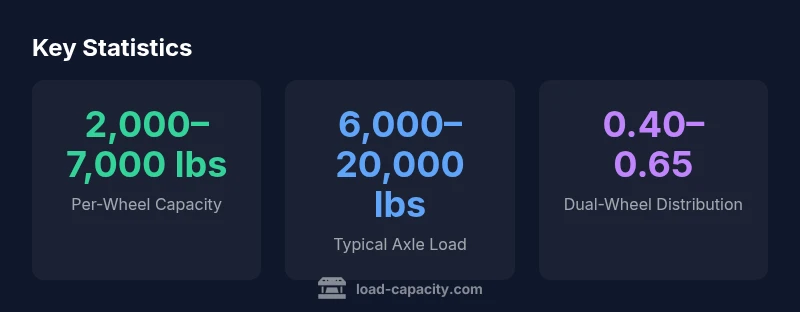

According to Load Capacity, the typical per-wheel load capacity for trucks ranges from about 2,000 to 7,000 pounds per wheel, depending on axle design, tire type, and suspension. This broad range reflects how wheel ratings interact with gross vehicle weight, axle load limits, and regional regulations. For safe planning, rely on vehicle data plates and manufacturer specifications when sizing cargo and distributing load.
Why Truck Wheel Load Capacity Matters
In trucking, the wheel load capacity of a vehicle determines the maximum weight that can be supported by each wheel safely. This metric is fundamental to preventing tire blowouts, rim damage, and axle overload, and it affects regulatory compliance, maintenance planning, and route optimization. For engineers designing a new truck or a retrofit, wheel load capacity interacts with axle ratings, tire specifications, suspension geometry, and wheel bearings. Fleet managers rely on accurate knowledge of wheel load capacity to allocate payloads, develop unloading procedures, and ensure drivers do not exceed ratings during cornering or braking. The concept is not isolated; it ties to GVWR, GCWR, and axle load limits, and it changes with tire pressures and dynamic loads created during acceleration and braking. In practice, the effective limit is a system property: each component—from the tire to the rim to the axle—contributes to the safe limit. Regional rules further complicate planning, so the best approach is to start with official data from the vehicle manufacturer and verify it in the field.
Key Definitions and Concepts
Understanding wheel load capacity requires clarity on several terms. Per-wheel load capacity is the maximum load a single wheel can safely carry. Axle load capacity is the total load supported by an axle, which is typically distributed across the wheels on that axle. GVWR (gross vehicle weight rating) represents the total permissible weight of the vehicle when loaded, including its own weight. GCWR (gross combined weight rating) accounts for the weight of the vehicle plus its towed equipment. Static load is the force measured when the vehicle is stationary, while dynamic load reflects peak stresses during acceleration, braking, or cornering. In practice, the safe payload is limited by the weakest link in the system—tire, wheel, axle, or suspension—so engineers often consider the entire drivetrain and wheel assembly when making design choices.
How Wheel Load Capacity is Determined in Practice
Wheel load capacity is determined through a combination of manufacturer specifications, empirical testing, and regulatory standards. Vehicle data plates (often located on a door jamb or frame) provide per-wheel and per-axle limits, which must be adhered to during loading. Engineers may consult the vehicle’s service manual or the tire and wheel manufacturer data to corroborate these values. In addition, many regions apply axle-weight limits and bridge formulas to calculate safe operating weights for a route, which can constrain planned loads beyond the raw per-wheel capacity. Real-world verification includes scale weigh-ins, dynamic load testing, and routine inspections of tires, rims, and suspension components. The goal is to ensure the actual working load stays within the rated capacity under typical operating conditions, including road irregularities and weather effects.
Planning Loads: Distribution, Tandem Axles, and Tarping
Effective load planning starts with distribution across axles and wheels. Heavier fractions should be allocated to axles that have the highest per-wheel capacity and the most favorable load distribution. Tandem or multi-axle setups spread payload over more wheels, lowering the per-wheel demand, but introduce complexity in weight-sharing and tire wear. Load distribution should be calculated to keep per-wheel loads below rated values, even during acceleration, braking, and cornering. Tarping and securing cargo are not just about safety; improper stacking or shifting loads can alter the center of gravity and per-wheel loads, increasing risk in curves or on uneven surfaces. When possible, use load bars, dunnage, and proper restraint systems to maintain a consistent weight distribution along the vehicle length.
Measuring and Verifying: Data Plates, Tire Ratings, and On-Road Checks
Verification starts with data plates on the vehicle, which specify the legal and manufacturer-approved weights per axle and per wheel. For additional assurance, cross-check these figures with the tire load rating and the wheel manufacturer’s documentation. Weigh stations and portable scales offer a practical means to verify that the actual loaded weights align with the per-wheel and per-axle limits under realistic conditions. Drivers should perform quick checks after changes in cargo, tire pressure, or tire wear, as these factors can influence effective load capacity. Documentation of any deviation from rated values should be kept and reviewed with maintenance personnel to avoid violations or unsafe operating conditions.
Practical Calculation Example
Consider a two-axle truck with front-axle per-wheel rating of 4,000 pounds and rear-axle per-wheel rating of 6,000 pounds. If the vehicle carries a payload of 18,000 pounds distributed 40/60 between front and rear axles, the front axle would bear 7,200 pounds (split between two wheels: 3,600 pounds per wheel), while the rear axle would bear 10,800 pounds (split across four wheels: 2,700 pounds per wheel). In this scenario, the front wheels are near their per-wheel limit, but the rear wheels exceed the per-wheel rating. The safe approach is to reallocate weight to the rear or reduce payload until every wheel operates below its rated capacity. This example illustrates the importance of per-wheel checks, especially on trips with uneven cargo.
Safety, Compliance, and Best Practices
Safety and compliance hinge on honoring per-wheel and axle limits. Never rely solely on gross vehicle weight ratings; always verify per-wheel distribution. Use proper tie-downs and securement, maintain tire pressures within the recommended range, and schedule regular wheel- and tire-maintenance checks. Be aware that dynamic loading can elevate peak stresses beyond static calculations; plan routes and loading patterns that minimize abrupt maneuvers and stop-and-go traffic when carrying near-limit loads. Regulatory requirements may vary by jurisdiction, so consult local DOT or road authority guidance and ensure your fleet’s practices align with both manufacturer data and statutory limits.
Implementation Roadmap for Teams
To implement best practices for truck wheel load capacity within a fleet: 1) inventory vehicle data plates and compile per-wheel and per-axle limits for all fleet trucks. 2) Create a payload planning checklist that accounts for distribution across axles and typical dynamic loads. 3) Establish regular scale checks and maintenance intervals for tires and wheels. 4) Train drivers on load distribution, securement, and the importance of avoiding overloading any single wheel. 5) Periodically review routes for weight restrictions and update load plans as vehicles age or configurations change. 6) Document incidents or deviations and use them to refine loading procedures and safety protocols.
Representative per-wheel load ranges by truck class (illustrative ranges)
| Aspect | Typical Range (per wheel) | Notes |
|---|---|---|
| Light-duty | 2,000–3,500 pounds | Common passenger trucks and light commercial vehicles |
| Medium-duty | 3,500–5,500 pounds | Mid-range commercial fleet use |
| Heavy-duty | 5,000–7,000 pounds | Rigid trucks and heavy trailers |
Quick Answers
What is wheel load capacity and why does it matter?
Wheel load capacity is the maximum load a single wheel can safely bear. It matters because exceeding it can cause tire failure, rim damage, or axle overload, compromising safety and regulation compliance. Always cross-check per-wheel limits against the data plate and manufacturer guidance.
Wheel load capacity is the limit per wheel; stay under it to prevent tire or rim problems and stay compliant.
How do I calculate wheel loads for a multi-axle truck?
Start with per-axle and per-wheel ratings from the data plate, then apply payload distribution between axles. Divide each axle’s wheel-load by the number of wheels on that axle to get per-wheel values, and compare with per-wheel limits. If any wheel exceeds its limit, rebalance the payload.
Identify each axle’s share, divide by wheels on that axle, and verify every wheel stays within its limit.
Are there regional limits I must be aware of?
Yes. Regional regulations often cap gross vehicle weight and axle loads, influencing how payloads can be distributed. Always verify route-specific restrictions and avoid exceeding axle or per-wheel limits to stay compliant.
Regulations differ by region, so check local rules and weigh stations when planning loads.
Can aftermarket tires change wheel load capacity significantly?
Aftermarket tires can alter per-wheel load capacity if they are not rated for the same load as the original equipment. Always match tires and wheels to the vehicle’s ratings and consult the manufacturer for approved substitutions.
Tires matter; make sure new tires are rated to the loads you plan to carry.
Is dynamic load higher than static load?
Yes. Dynamic loads during acceleration, braking, and cornering can temporarily exceed static ratings. Account for these peaks in loading plans and verify through measurements or simulations when feasible.
Dynamic loads can push loads higher than static, so plan with margins.
“Accurate wheel load capacity is the foundation of safe, efficient transport. Always start from the vehicle's rated data and verify with on-site measurements when possible.”
Top Takeaways
- Verify per-wheel limits on data plates before loading
- Distribute payload across axles to minimize per-wheel stress
- Consider dynamic loads beyond static ratings in planning
- Always secure cargo to preserve weight distribution
- Consult manufacturer data and local regulations for compliance
