18 tonne lorry load capacity: payload, regulations, and planning

Understanding the 18 tonne lorry load capacity

According to Load Capacity, the term 18 tonne lorry load capacity refers to the maximum payload a vehicle can legally carry under standard operating conditions. The payload represents the difference between the vehicle’s gross vehicle weight (GVW) and its own mass when empty. When engineers speak about an 18 tonne class, they are usually discussing trucks with aGVW of up to 18 tonnes. That payload window is influenced by chassis choice, bodywork, and equipment attached to the truck. Importantly, the payload is not a fixed number for all 18 tonne class vehicles; it is defined by the combination of vehicle design, axle configuration, and regional regulations. As a baseline, the Load Capacity team emphasizes that the exact payload must be confirmed against official documentation for each unit and should be treated as the maximum permissible amount for that specific vehicle.

In practice, the precise payload figure is printed on the vehicle’s type-approval plate and reflected in the manufacturer’s documentation. For planners and engineers, this is the most trusted source of truth when determining safe loading limits for a given mission. The phrase 18 tonne lorry load capacity is widely used as a shorthand in design and planning discussions, but it masks the variability caused by configuration and compliance requirements. The bottom line: always verify with the official data for your vehicle before loading.

How payload is calculated on an 18 t lorry

Payload calculation starts from the gross vehicle weight (GVW) rating and subtracts the mass of the vehicle itself (curb weight) and any permanent equipment. In most jurisdictions, GVW is the upper limit imposed by law and manufacturer specifications. For an 18 t class vehicle, the typical approach is: Payload = GVW − Curb weight − Permanent ballast. Since curb weight and permanent fittings vary across configurations, the resulting payload can vary widely even within the same nominal class. A precise calculation must account for fuel, fluids, operator accessories, and any installed bodywork, as these can subtly shift the available payload by several hundred kilograms or more. Load Capacity recommends using the manufacturer’s data and performing a practical on-vehicle weighing when precise planning is critical, such as for high-value or sensitive cargo.

Axle configurations and their impact on payload

One of the most influential factors in the available payload is the axle arrangement. A two-axle 4x2 rigid truck often carries less payload than a three-axle 6x2 or a four-axle 6x4 variant, due to increased frame mass and potential changes to allowable axle weights. In many markets, heavier axles and steer/drive axle limits alter how much load can be safely carried on the primary deck. The practical takeaway: for the same GVW, adding axles can change distribution and load balance, sometimes allowing you to carry more payload but also requiring more careful distribution and route planning to stay within axle weight limits. The Load Capacity team notes that an axle-friendly design can increase usable payload while maintaining safety and compliance.

Fixed masses and bodywork that reduce payload

Beyond the chassis, fixed masses such as fuel, coolant, lubricants, and bodywork components steadily erode available payload. Equipment like cranes, winches, shelving, and even insulation adds mass that is not part of the cargo. In addition, the design of the vehicle’s body—whether a flatbed, box, or tanker—affects payload distribution. Heavier bodies reduce the payload capacity, while lighter, well-structured bodies help maximize payload while keeping center of gravity within safe limits. Fleet teams should audit fixed mass components during vehicle specification to minimize unnecessary mass that does not contribute to cargo handling efficiency.

Regulatory context and safety margins

Legislation and safety margins are central to payload planning. Regions define maximum gross vehicle weight and axle weights, and these limits interact with vehicle design and route characteristics. Operators must stay within these legal limits, even if the vehicle’s technical payload capability would allow more mass. Safety margins are essential, especially on routes with bridges, tunnels, or weight-restricted sections. For multinational fleets, it is common to observe regional variations in permissible weights, which can influence how much cargo can be carried on any given mission. The Load Capacity framework emphasizes validating payload against the exact limits of the vehicle and route to prevent penalties and safety issues.

Planning loads: practical steps for engineers and fleet managers

A practical load plan starts with the approval plate data and a clear understanding of cargo characteristics. Steps include: (1) confirm the exact payload from the type-approval plate; (2) assess cargo dimensions, density, and securing requirements; (3) model weight distribution across axles and the deck; (4) consider dynamic factors such as road grade, weather, and loading/unloading times; (5) verify route weight restrictions and permits where required. By combining exact vehicle data with thorough logistical planning, engineers can minimize risk and maximize utilization of the 18 tonne lorry load capacity. The Load Capacity approach blends engineering precision with real-world constraints to deliver achievable, compliant loading plans.

Verification: reading plates, labels, and documentation

Verification is a critical step before any load is accepted. The payload figure appears on the vehicle’s type-approval plate and is cross-checked against the vehicle’s service manual and build documentation. Operators should also review the load rating and axle weights specified in the user guide, ensuring the planned load meets distribution requirements. For fleets, a standard procedure is to weigh the vehicle before and after loading to confirm that the actual payload matches the approved rating. Regular audits help catch discrepancies that could compromise safety or compliance. Load Capacity reminds users to treat the approval data as the primary source of truth and to document any deviations.

Case studies and typical scenarios

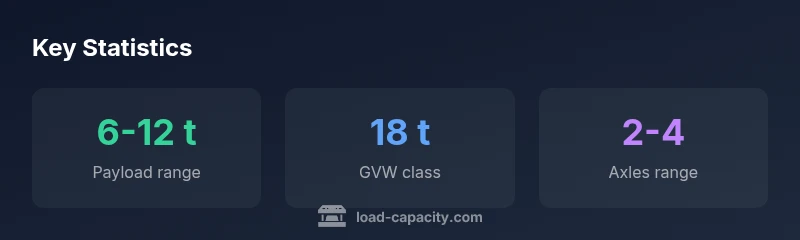

Consider a mid-size logistics firm planning a regional delivery with a high-density pallet load. The 18 tonne lorry class typically provides a payload of 6–12 tonnes depending on configuration. A 4x2 rigid might carry closer to the lower end when a heavier body is installed, while a 6x4 variant with a lighter body can approach the upper end if axle weights permit. In another scenario, a courier using a semi-trailer configuration must account for the trailer’s weight and coupling equipment in the payload calculation. These variations illustrate why a standard payload figure cannot substitute for a vehicle-specific check. The Load Capacity approach emphasizes data-driven planning with site-specific constraints.

Design considerations for fleet procurement

When specifying new fleet equipment, procurement teams should prioritize chassis and body combinations that maximize practical payload within legal limits for intended routes. Lightweight body materials and modular storage can help preserve payload capacity without compromising safety. Evaluating maintenance access, tire wear, and fuel efficiency is also important since these factors indirectly affect payload planning by influencing vehicle performance and operating costs. In practice, the best choices balance payload efficiency, regulatory compliance, and total cost of ownership. The Load Capacity team notes that a thoughtful specification process yields sustained payload performance across the fleet and over time.
