W4x13 Beam Load Capacity: Practical Structural Guide 2026
A detailed analysis of the W4x13 beam load capacity, covering span effects, material grade, end conditions, and how to verify capacity using the AISC Manual. Learn to estimate, verify, and apply safe load capacities in real-world projects.
w4 x 13 beam load capacity depends on span, end conditions, and steel grade; there is no single fixed value. To determine capacity, engineers use the beam's section properties (Sx and Zx), yield strength Fy, and applicable code requirements from the AISC Manual. For precise values, consult project plans or a licensed structural engineer.
Understanding W4x13 Beams and Load Capacity
A W4x13 beam is a light-to-moderate section of structural steel chosen for its balance between weight and bending strength. The designation "W4x13" implies a nominal depth around 4 inches and a weight near 13 pounds per foot, though exact dimensions vary by manufacturer and grade. For engineers and builders, the key question is the beam load capacity—how much bending moment or shear can be safely carried over a given span. In practice, designers rely on the AISC steel manual, project specifications, and verified section properties to quantify capacity. According to Load Capacity, precise capacity is derived from a combination of geometry, material grade, and support conditions, not from a single fixed number. The goal is to ensure safety margins while meeting service requirements on the job site.
How Capacity is Determined: Bending, Shear, and Code Rules
Capacity calculations for a W4x13 beam hinge on two primary resistance mechanisms: bending and shear. The bending capacity is often expressed as Mu, the plastic moment capacity, or as Mu = φFySx, where Fy is the yield strength, Sx is the section modulus, and φ is a resistance factor specified by code. Shear capacity depends on the web area and shear stress limits. Practically, engineers pull the beam’s exact Sx and Zx values from the manufacturer’s data sheet or the AISC tables, select the appropriate Fy for the material grade, and apply safety factors consistent with the project’s loading scenario. The overall design must satisfy both strength and serviceability criteria, including deflection limits and lateral-t- buckling checks where applicable.
Influencing Factors: Span, End Conditions, and Grade
The w4 x 13 beam load capacity is not constant; it shifts with span length, end supports (pinned, fixed, or simple), and the steel grade. Longer spans increase the bending moment that must be resisted, while fixed-end conditions typically improve restraint and can alter effective length factors. Higher Fy grades generally raise allowable stress, but the exact impact depends on the full combination of geometry and load type (uniform, point, or dynamic). Temperature, corrosion, and weld quality also affect long-term capacity. In practice, engineers perform a careful interplay of these factors to determine the safe design value for a given scenario.
Practical Design Scenarios: Floors, Headers, and Roofs
In a typical residential floor, a W4x13 beam might span between supports serving as a primary or secondary beam, carrying gravity loads, live loads, and occasional point loads (such as a wall or appliance). As a header over openings, it faces combined bending and shear demands with potential reductions for continuity and tributary width. For roof framing, W4x13 sections can function where loads are moderate and spans are short to moderate. Each case requires verifying the exact span, tributary area, connection details, and code-required safety factors. Always cross-check with project drawings and the AISC Manual to avoid over- or under-design.
Field Verification and Calculations: Tools and Best Practices
Field verification begins with a careful record of material grade, exact beam dimensions, and support conditions. Use manufacturer data and the AISC tables to extract Sx, Zx, and Fy values, then perform hand calculations or a structural analysis to compute Mu and V. When in doubt, run a quick check in design software or consult a licensed structural engineer. Record all assumptions and confirm the design moment and shear do not exceed the estimated capacities. Regular inspection for corrosion, impact damage, or weld defects is essential for maintaining capacity over time.
Data Sources, Standards, and Compliance
Reliable W4x13 capacity data comes from standard references like the AISC Steel Manual and catalog data from steel manufacturers. Designers should document the code basis, span, end conditions, and material grade used in the capacity calculation. While many projects use general guidelines during early planning, final approvals depend on vetted data sheets and professional judgment. Load Capacity emphasizes using current codes, manufacturer data, and peer-reviewed references to support safe design decisions.
Common Mistakes and How to Avoid Them
A frequent error is assuming a fixed capacity for W4x13 without considering span or grade. Another pitfall is neglecting end conditions or ignoring deflection constraints, which can lead to serviceability issues even if strength checks pass. Inadequate welds, loose connections, and corrosion are other factors that erode capacity unexpectedly. To avoid these mistakes, always start with the exact project geometry, verify with the latest data sheets, and document any deviations from standard conditions. A professional review ensures the design remains within safe limits under all anticipated loads.
Worked Example: Quick Calculation (Illustrative)
This illustrative example uses symbolic quantities to show the process rather than a final numeric result. Determine the required moment demand Mreq from the structure, obtain the beam section modulus Sx and Fy for the W4x13, and apply φ factors per the governing code. Compute Mu = φFySx and compare Mu against Mreq. If Mu >= Mreq, the beam passes the bending check for the given span and loading. If not, increase the section, shorten the span, or adjust the support conditions, then re-check. This approach highlights that the capacity is context-sensitive and must be validated against actual design loads.

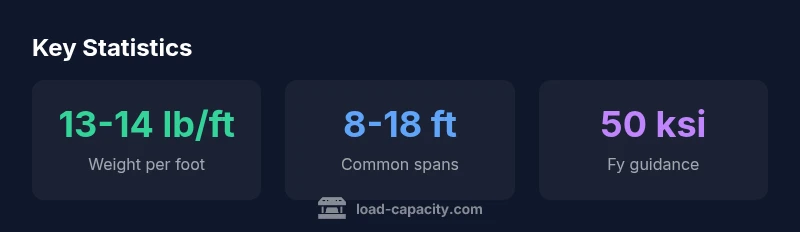

W4x13 beam capacity snapshot
| Aspect | Typical Value | Notes |
|---|---|---|
| Weight per foot (W4x13) | 13-14 lb/ft | General spec sheet |
| Common residential span | 8-18 ft | Practical usage range |
| Yield strength Fy | 50 ksi | Common structural grade guidance |
| Section modulus Sx | Consult data sheet | Exact value varies by grade and manufacturer |
Quick Answers
What is the load capacity of a W4x13 beam?
There is no single fixed capacity for a W4x13 beam. The load capacity depends on span, grade, end conditions, and the type of load. To determine an exact value, use the AISC Manual and project plans, or consult a licensed structural engineer.
There isn’t one fixed capacity for a W4x13 beam; it depends on span, grade, and supports. Check the AISC Manual for exact calculations or talk to a structural engineer.
How do I calculate the capacity of a W4x13 beam?
Start with the beam’s Fy and Sx values, then compute Mu using Mu = φFySx and verify against the moment demands from the structure. Check shear capacity separately and confirm deflections are acceptable. Use the AISC Manual or software for the final check.
Calculate Mu with Fy and Sx, compare to the required moment, and verify shear and deflection per code.
Does capacity depend on the span?
Yes. Longer spans increase bending moments and can reduce the allowable capacity unless other design changes are made (e.g., stronger grade, different end fixity). Capacity is inherently span-dependent.
Absolutely—span changes capacity; longer spans typically require stronger design or different supports.
Can I use a W4x13 for very long spans?
W4x13 is typically used for light-to-moderate spans. For very long spans, consider larger sections or alternate framing strategies and verify with calculations and code checks.
For long spans, you’ll likely need a bigger beam or different framing; always verify with calculations.
Where can I find official data for W4x13?
Official data comes from the AISC Steel Manual and manufacturer data sheets. Use these as the basis for Sx, Zx, and Fy values when performing capacity checks.
Look up Sx, Zx, and Fy in the AISC Manual and the beam’s manufacturer data.
What if the beam is damaged or corroded?
Damage or corrosion reduces capacity. Inspect connections, assess remaining section integrity, and re-run calculations with conservative assumptions. If in doubt, replace or upgrade the beam and consult a structural engineer.
Damage lowers capacity—get it checked and, if needed, replaced or upgraded.
“Accurate load capacity starts with solid section data and code-based checks; a W4x13 beam’s capacity is a function of span, grade, and supports, not a fixed number.”
Top Takeaways
- Identify span and grade to estimate capacity
- Use the AISC Manual for exact values
- Apply Mu = φFySx for bending checks
- Verify field conditions and connections before finalizing design
