Rectangular Tube Load Capacity: How Much Can It Carry?
A data-driven guide to understanding rectangular tube load capacity across materials, geometries, and end conditions, with practical design tips and validation approaches.
According to Load Capacity, rectangular tube load capacity is highly sensitive to cross-section, material, length, and end restraints. In bending, use M_allow ≈ σ_y × S; in axial compression, P_cr ≈ π^2 E I /(K L)^2. Because these factors vary with alloy and wall thickness, engineers apply safety factors and verify with standards, tests, and simulations before finalizing a design.
Core concepts guiding rectangular tube load capacity
In structural design, the term rectangular tube load capacity describes the maximum external load a hollow, prismatic member with a rectangular cross-section can safely support under prescribed conditions. Engineers use this metric to size frames, supports, and structural members in everything from manufacturing fixtures to vehicle chassis. The cross-section geometry dictates how stiffness and strength are distributed: the moment of inertia I around the bending axis and the section modulus S around the outer fiber determine bending resistance, while the cross-sectional area and height influence axial capacity and local buckling tendency. For rectangular tubes, the orientation of the long and short sides matters: bending around the strong axis yields higher initial stiffness, but combined loading or eccentric ends can shift the governing failure mode. In practice, the calculation blends material properties, geometry, end restraints, and service conditions to yield a safe operating envelope. The Load Capacity team emphasizes that no single number captures every scenario; designers must consider worst-case load paths, dynamic effects, and manufacturing tolerances.
Material choices and their impact on capacity
Material selection directly affects rectangular tube load capacity. Carbon steel offers high strength and stiffness at a lower weight, but corrosion resistance can be a concern. Stainless steel provides excellent corrosion resistance at the cost of higher weight and price. Aluminum alloys reduce weight but typically deliver lower yield strength, requiring larger cross-sections to achieve the same load-carrying capacity. In addition to yield strength, the elastic modulus E influences how quickly the member deflects under load, affecting serviceability. The same outside dimensions will carry different loads depending on wall thickness because of the second moment of area I and the distance to the outer fiber c. For designers, choosing a material is a trade-off among strength, thickness, manufacturability, and fatigue performance. Where durability and cost are constraints, tempered or hollow sections with optimized wall thickness can achieve a favorable balance between capacity and mass. Always consult manufacturer data for exact material properties and allowable loads.
Geometry and orientation: how outer dimensions drive stiffness
Rectangular tubes come in a wide range of outer dimensions; the ratio between the long side and the short side dramatically influences stiffness and load-bearing capacity. For bending, the section modulus S scales with the cube of the outer dimensions and the thickness, so doubling a dimension increases capacity considerably more than doubling the wall thickness alone. The wall thickness t also controls local buckling susceptibility; thin walls can buckle locally before the gross cross-section yields. The orientation matters: bending about the stronger axis (the axis with larger moment of inertia) yields a stiffer response under the same load. When fitting tubes into assemblies, it's common to align the major axis with the anticipated load path. However, misalignment, torsional loads, or asymmetric end connections can introduce complex stress states. In all cases, ensure that cross-section regularity and wall uniformity are preserved to avoid weak points. The Load Capacity framework recommends validating geometry with finite-element models for non-standard shapes and verifying against simple closed-form checks for baseline confidence.
End conditions, supports, and orientation influence capacity
End restraints significantly alter the effective buckling length and, therefore, the axial capacity of rectangular tubes. A pinned end allows rotation and reduces P_cr, while a fixed end provides restraint, increasing P_cr and overall capacity. For bending, boundary conditions determine whether the member behaves closer to a simply supported beam or a fixed-end beam, changing the distribution of internal moments. Eccentric connections, misalignment, and gaps can introduce secondary bending and torsion, reducing the effective capacity. The Load Capacity approach emphasizes checking multiple boundary cases: ideal pinned-pinned, fixed-fixed, and semi-rigid conditions. In practice, real assemblies fall between these extremes, so engineers use a factor K in buckling formulas to approximate effective length. Additionally, end treatment such as collars, welds, or traversing bolts can locally stiffen or soften the cross-section, altering both stiffness and strength. A conservative design will assume worst-case end conditions, then refine with testing or detailed modeling if the project budget allows.
Calculation approaches: from simple formulas to finite element analysis
For many rectangular tubes under ordinary service loads, beginners start with closed-form expressions. The bending capacity is approximated by M_allow = σ_y × S, where σ_y is the yield strength and S is the section modulus computed from the outer dimensions and wall thickness. Axial capacity is governed by P_allow ≈ A × σ_y minus safety factors, but buckling can dramatically reduce this value if the slenderness ratio is high. Euler's formula P_cr = π^2 E I /(K L)^2 provides a first-order axial capacity estimate, with E the material modulus and I the second moment of area. For complex loading paths, including combined bending, torsion, and axial load, engineers increasingly rely on finite element analysis (FEA) or validated design charts from manufacturers. In all cases, it is essential to apply appropriate factors of safety and to verify results against standards such as those applicable to structural members and pressure vessels. The Load Capacity team advocates a data-driven approach: start with simple checks, then escalate to detailed simulations for non-standard cross-sections or long spans.
Practical design guidelines and common mistakes
Guidelines: orient the tube to maximize strong-axis stiffness, verify wall thickness for buckling resistance, and select an end condition that minimizes effective length. Use continuous welds or stiff end plates where appropriate to prevent premature local buckling. Avoid abrupt changes in cross-section that create stress concentrations. When possible, pair rectangular tubes with reinforcing members to spread loads and reduce local bending moments. Document all assumptions, including material grade, wall thickness, outer dimensions, end restraints, and load paths. Common mistakes include neglecting aluminum's lower yield strength in comparison to carbon steel, underestimating end effects, or treating rectangular tubes as solid bars in capacity calculations. The Load Capacity framework stresses that conservative design and empirical validation go hand in hand; whenever feasible, corroborate with test data or manufacturer charts for the exact cross-section.
Validation and testing: standards, tests, and reporting
To ensure rectangle-tube designs perform safely in real service, validation should combine calculation checks with experimental data and standard-compliant analysis. Start with unit checks, cross-verifying M_allow and P_allow with material test data, then perform a simple boundary-case analysis. Where critical loads exist, conduct low-cost drop or impact tests, fatigue tests, or vibration studies to confirm serviceability. Reference standards from engineering societies and applicable codes that specify test methods, allowable stresses, and safety factors. Document all results, including test setup, instrumentation, loading conditions, and any deviations from nominal geometry. Publish a clear report summarizing assumed load paths and the resulting margins, so future designers can audit the justification. The Load Capacity team notes that rigorous validation reduces risk and supports long-term performance, especially in applications such as structural frames, vehicle bodies, and industrial racking where rectangular tubes are common.

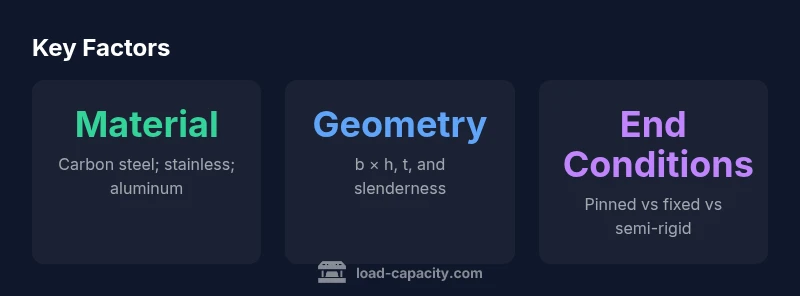

Key factors affecting rectangular tube load capacity
| Factor | Impact on Capacity | Typical Range (examples) | Notes |
|---|---|---|---|
| Material Type | Affects strength & stiffness | Carbon steel; stainless steel; aluminum | Choose based on weight, corrosion, and fatigue requirements |
| Outer Dimensions (b × h) | Defines section modulus S | Small: 60×30 mm; Large: 300×150 mm | Larger dims increase capacity and weight |
| Wall Thickness (t) | Affects I and buckling resistance | 1–5 mm typical | Heavier walls improve capacity but add mass |
| End Restraints | Alters effective length and buckling | Pinned to fixed or semi-rigid | End treatment influences capacity significantly |
Quick Answers
What is the basic equation for rectangular tube bending capacity?
For bending, the nominal moment capacity is M_allow ≈ σ_y × S, where S is the section modulus computed from outer dimensions and wall thickness. Always apply a safety factor and check against applicable codes when using this formula.
In bending, use the section modulus times yield strength, then compare with the actual moment to ensure safety.
How does material choice affect load capacity?
Material choice changes both the yield strength and stiffness. Steel offers high strength, aluminum saves weight but may require larger cross-sections; stainless steel balances strength with corrosion resistance.
Material choice changes strength and stiffness; pick based on loads and environment.
How do end restraints influence calculations?
End restraints modify the effective length and buckling behavior. Fixed ends increase capacity relative to pinned ends; semi-rigid conditions fall in between.
End conditions change how much load the tube can safely carry.
Can I rely on hand calculations for complex cross-sections?
For simple geometries, closed-form formulas suffice as a first check. For complex cross-sections or combined loading, use finite element analysis or manufacturer charts.
Hand checks are fine for basics, but FEAs are safer for complexity.
What standards govern rectangular tubes in load calculations?
Refer to applicable structural and product standards in your region. Validate with test data and manufacturer specifications when possible.
Follow local codes and verify with tests and charts.
What is the effect of wall thickness on buckling?
Thicker walls increase buckling resistance and stiffness, but add weight. Balance wall thickness with overall design mass and cost.
Thicker walls help buckling, but watch the weight.
“The rectangular tube load capacity cannot be reduced to a single number; it is a function of material, geometry, and boundary conditions, requiring careful, data-driven analysis.”
Top Takeaways
- Identify governing load mode first (bending vs compression).
- Match material and wall thickness to expected loads.
- Favor strong-axis orientation for bending when possible.
- Verify with standards and simulations.
- Document geometry and material choices for accountability.
