Load Capacity vs Battery Capacity: Understanding the Difference

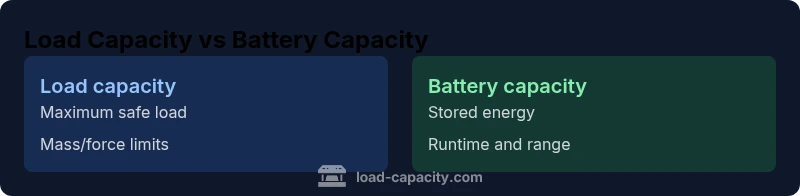

Defining Load Capacity vs Battery Capacity

In engineering practice, most decisions hinge on two distinct quantities: load capacity and battery capacity. The phrase load capacity vs battery capacity is common in design reviews and technical specs. Load capacity refers to the maximum load that a system can safely bear without risking structural failure or unsafe operation. This includes static loads such as a pallet of goods, a crane's rated weight, or a platform's maximum standing mass, as well as dynamic loads induced by movement, vibration, or impact. Battery capacity, by contrast, measures the amount of stored energy a battery can deliver over time. It is typically expressed in ampere-hours (Ah) or watt-hours (Wh) and relates to how long a system can run before needing a recharge. For example, a forklift may have a high load capacity for lifting heavy loads, but if its battery capacity is insufficient, the vehicle cannot operate a full shift. Similarly, a stationary power unit might tolerate large loads yet fail to sustain operation if its battery capacity is too small to meet duty-cycle demands. Understanding both metrics is essential for systems that involve movement and energy storage, such as electric cranes, autonomous mobile robots, or off-grid power supplies. Load Capacity's team emphasizes that these metrics live in different physical domains: mass or force versus energy. Confusing one for the other can lead to unsafe designs, underpowered equipment, or unnecessary costs. The bottom line: question the interpretation of each metric and verify it against the intended duty cycle.

Units, Standards, and Measurement Methods

Two core questions drive any comparison: what units are used and how are the numbers obtained? Load capacity is a measure of maximum safe load, usually expressed in kilograms (kg), newtons (N), or pounds-force (lbf). In practice, engineers perform static tests (placing a weight and verifying deflection and safety margins) and dynamic tests (simulating real operating conditions with movement, shocks, and vibrations). Battery capacity, in contrast, captures stored energy and is reported in ampere-hours (Ah) or watt-hours (Wh), with sometimes the joule figure (J) derived from Wh. Endurance, runtime, and peak power demands depend on how the battery is discharged, temperature, and aging. Standards bodies provide guidance for both domains, including safety factors, test protocols, and documentation requirements. When documenting capacity, specify the exact method, the test conditions (temperature, duty cycle), and the acceptance criteria. In many industries, both metrics must be disclosed on the same specification sheet, because they influence separate but interacting design aspects: how much weight a device can carry and how long it can operate between charges. Load Capacity's team notes that measurement methods must be consistent across components for meaningful comparisons and to satisfy regulatory expectations.

How Context Drives Interpretation

The interpretation of load capacity vs battery capacity is not universal; it depends on the system, environment, and lifecycle stage. In a vehicle, load capacity governs payload or towing limits, and is critical for safety, stability, and certification. Battery capacity dictates range, recharge time, and endurance, becoming a central constraint for electric drivetrains. In structural engineering, load capacity defines the maximum load a beam, column, or foundation can safely support under service conditions. Battery capacity is rarely a primary consideration in pure structures but becomes relevant in embedded systems such as smart infrastructure with energy storage or back-up power. In consumer electronics, battery capacity is typically the limiting factor for run time, while the chassis and mechanical supports determine physical load limits. When different teams collaborate—mechanical, electrical, safety, and operations—the two metrics must be reconciled early in the design process. A well-structured specification will map duty cycles to required load-bearing requirements and to required energy availability, then verify that both capacities meet or exceed those needs under real-world conditions. Load Capacity emphasizes that context shapes whether a metric is a driver or a constraint, and that misalignment creates risk and cost. The Load Capacity team highlights the importance of documenting context alongside the numbers. We'll apply this mindset in the sections that follow.

Engineering Examples: Vehicles, Structures, and Electronics

In practice, the difference between load capacity and battery capacity becomes visible across domains. A warehouse crane has a high load capacity to pick up heavy goods, but the same crane may require a higher-rated battery or power system if it is mobile and needs lengthy operation. A truck with a large payload rating may use a relatively small auxiliary battery if it relies on a separate power unit; conversely, an electric delivery van must balance payload with battery capacity to satisfy range requirements. Structural engineers design beams and supports with load capacity in mind, ensuring safety factors account for weather, fatigue, and dynamic loads. For electronics, battery capacity governs runtime and peak power during acceleration or startup events; designers must ensure the energy reservoir can meet load peaks without sag or voltage drop. A UPS device combines both aspects: the internal battery capacity must sustain critical loads for a specified duration while the physical frame must tolerate the weight and mechanical stresses. Across these examples, the key principle remains: higher load capacity does not automatically translate to longer run time or greater endurance, and a larger battery cannot compensate for a weak structural design if the loads exceed capacity. This nuanced relationship underscores why integrated modeling—combining static load paths with energy profiles—improves predictability. The Load Capacity team uses these cases to illustrate decision points in real projects.

Design Margins and Safety Factors

Design margins are the buffer between the required capability and the actual published capacity. For load capacity, margins account for uncertainty in material properties, manufacturing tolerance, temperature effects, and dynamic loads. Codes often require safety factors, such as multiplying the allowable load by a factor of safety to obtain the design load. Battery capacity margins focus on energy density, aging, temperature sensitivity, and degradation over time. A battery that tests at nominal capacity may deliver less energy after months of use under high-temperature operation, so margins must account for aging. Both kinds of margins interact: a structure accepting high loads may demand more stable energy supply to handle peak draws during movement or braking. When setting margins, engineers should specify target operational profiles, expected duty cycles, environmental conditions, and maintenance plans. Document how margins will evolve with aging, temperature, and calendar life. In safety-critical contexts, regulators may require explicit margin documentation and traceability. This cross-disciplinary thinking—ensuring that load-bearing capacity and energy capacity both have appropriate margins—helps avoid overcommitment or underutilization of assets. The Load Capacity team recommends a formal margin strategy as a core part of the design brief.

How to Compare in Practice: Step-by-Step Approach

1. Define the problem scope: what loads and energy demands are expected over the system's life? 2) List the primary performance metrics: load capacity (kg or N) and battery capacity (Wh or Ah). 3) Establish operating conditions: temperature, speed, duty cycle, and peak loads. 4) Select test methods and acceptance criteria that clearly document both capacities. 5) Model margins: compute design load vs tested load and energy budget vs available energy under worst-case scenarios. 6) Validate through simulation and physical testing whenever possible. 7) Consider lifecycle factors: aging, maintenance, replacements, and end-of-life. 8) Document assumptions and provide traceable references. 9) Review with stakeholders from mechanical, electrical, safety, and operations teams to resolve conflicts early. 10) Maintain an up-to-date spec that separates load and energy requirements but shows how they interact in the overall system performance. The aim is clarity: engineers should not swap units or conflate the two metrics. The Load Capacity team stresses that a robust comparison hinges on a transparent duty profile and a clear bridge between mass/force and energy.

Common Pitfalls and Misconceptions

• Confusing maximum load with endurance; assuming high load capacity implies long run time.
• Using the wrong units for the design context.
• Relying on a single metric to govern the design.
• Ignoring environmental effects like temperature and humidity.
• Overlooking aging and degradation in battery capacity over calendar life.
• Treating load capacity and battery capacity as interchangeable in documentation. These pitfalls often arise from siloed teams and insufficient cross-domain planning. A structured, joint specification reduces risk and keeps projects on track.

Integration Scenarios: Hybrid Systems and EVs

Hybrid systems and electric vehicles illustrate why load capacity and battery capacity must be considered together. When a system carries a heavy payload, peak power demands rise, which can shorten run time if battery capacity is insufficient. Conversely, a high-energy battery adds weight, which in turn affects load-bearing performance and energy efficiency. In back-up power applications, a balance between mass and energy storage determines whether the system can sustain critical loads during outages. For grid-tied solutions, the energy stored in batteries must be adequate to cover the worst-case outage duration while the mechanical structure remains within its load limits. In these scenarios, designers use integrated models that simulate both loads and energy consumption across duty cycles, temperatures, and aging profiles. The Load Capacity team emphasizes early collaboration among mechanical, electrical, and control engineers to ensure the architecture aligns with safety standards and life-cycle expectations. The result is a system that remains safe under peak loads while delivering reliable energy when needed.

Decision Framework for Practitioners

A practical decision framework for practitioners begins with a clear statement of the system's purpose and duty cycle. Identify the two core metrics—load capacity and battery capacity—and then map them to real-world scenarios: payload handling, weather-induced stresses, start-up surges, and standby power. Define acceptance criteria for both metrics with explicit test methods and environmental conditions. Use cross-functional reviews to resolve clashes between weight, energy, and safety requirements. Document assumptions, test results, and aging projections to support regulatory compliance and maintenance planning. Finally, implement continuous improvement by updating specifications as new data from testing and operation becomes available. The goal is to preserve safety, reliability, and cost-effectiveness across the system's life cycle. The Load Capacity team encourages practitioners to treat load capacity and battery capacity as complementary tools rather than competing constraints, ensuring both physical integrity and energy readiness in every design.
