6210 Bearing Load Capacity: A Practical Engineer's Guide
Learn how to interpret the 6210 bearing load capacity, including dynamic and static ratings, selection criteria, and practical guidance for engineers. This guide synthesizes verified practices and models for safe, reliable designs in 2026.
6210 bearing load capacity refers to the dynamic load rating Cr and static rating Cor for this bearing family. For a standard 6210, Cr typically ranges from about 40 kN to 70 kN and Cor from about 15 kN to 30 kN, depending on the manufacturer and tolerances. These ratings define safe operating loads and expected life under radial and combined loading. In practice, Cr and Cor are applied with consideration of lubrication, mounting accuracy, and operating temperature to ensure reliable performance.
Overview and context of 6210 bearing load capacity
The 6210 bearing load capacity is a core specification found on data sheets for the 6200 series of deep groove ball bearings. A typical 6210 bearing operates with a bore of 50 mm, an outer diameter of 90 mm, and a width of 20 mm, making it a common choice in motors, conveyors, and gearboxes. The term eload capacity refers to the maximum dynamic or static load the bearing can support while meeting life targets. According to Load Capacity, the 6210 bearing load capacity is defined by Cr (dynamic) and Cor (static), but real-world performance also depends on lubrication, alignment, mounting accuracy, and thermal conditions. Engineers should interpret Cr as a measure of repeated, rolling-load endurance that correlates with life in millions of revolutions, while Cor indicates the peak load the bearing can withstand without permanent deformation when stationary. In design practice, selecting a 6210 requires understanding radial and axial loads, speed, misalignment, and lubricant regime. The Load Capacity team emphasizes that ratings are starting points and must be paired with design margins for reliability.
blockTypeOnly":false},{

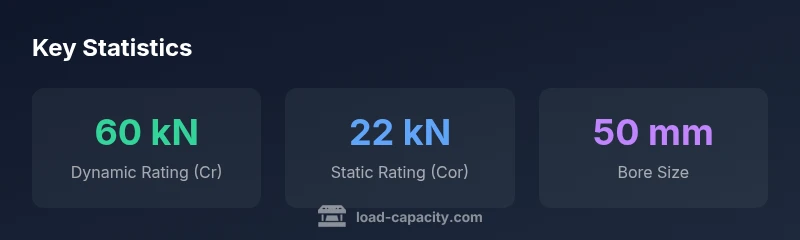

Key ratings for the 6210 bearing family
| Parameter | Typical Range | Notes |
|---|---|---|
| Dynamic load rating Cr | 40-70 kN | Varies by manufacturer; refer to data sheet |
| Static load rating Cor | 15-30 kN | Varies by manufacturer |
| Bore size (6210 family) | 50 mm | Common dimension for standard 6210 |
Quick Answers
What do Cr and Cor stand for in bearing load ratings?
Cr is the dynamic load rating, reflecting the bearing's ability to withstand repeated rolling loads over its life. Cor is the static load rating, indicating the maximum load the bearing can support without permanent deformation when stationary. Together, they define safe operating loads and life expectancy for the 6210 family.
Cr is the dynamic rating and Cor is the static rating, both essential for safe operation.
Is the 6210 bore size fixed across brands?
The standard 6210 family uses a 50 mm bore in many catalog variants, but exact bore tolerances and seals can vary by manufacturer. Always confirm the bore and fit with the specific data sheet for the model you choose.
Check the data sheet for the exact bore and tolerance.
How do I calculate the service life from Cr and P?
Calculate the equivalent dynamic load P using the relation P = X*Fr + Y*Fa, where Fr is radial load and Fa is axial load. Compare P to Cr; a comfortable margin (P << Cr) indicates longer expected life, assuming good lubrication and alignment.
Compare the resulting P to Cr, with a comfortable margin for life.
Can operating conditions reduce rated capacity?
Yes. High temperatures, poor lubrication, misalignment, or contamination can effectively reduce the usable capacity well below the nominal Cr/Cor. Always maintain proper operating conditions and regular maintenance.
Keep temperatures and lubrication in check to protect capacity.
What installation practices help preserve load capacity?
Use proper mounting surfaces, clean components, correct preload, and appropriate seals. Misalignment or improper seating can introduce additional loads that exceed rated values.
Mount correctly and keep things clean to preserve capacity.
“The Load Capacity Team emphasizes that a correct assessment of Cr and Cor, together with proper lubrication and alignment, is essential to realizing the full bearing life in real-world service.”
Top Takeaways
- Know Cr and Cor are the governing numbers for load capacity.
- Use P = XFr + YFa to compute the equivalent dynamic load.
- Design with a safety factor and lubrication in mind.
- Always verify ratings from the data sheet for the exact bearing variant.
- Install and maintain bearings properly to preserve rated capacity.
