22210 Bearing Load Capacity: A Comprehensive Guide

What is the 22210 bearing and why load capacity matters

The 22210 bearing belongs to the spherical roller family, designed to support heavy radial loads and to tolerate a limited amount of misalignment. In engineering practice, bearing load capacity is the fundamental ability of the bearing to sustain operating forces without excessive wear or premature failure. When engineers evaluate a 22210 bearing, they look at two primary ratings: the dynamic load rating C, which describes the bearing under continuous running loads, and the static load rating Co, which characterizes the bearing under peak or start up loads. These ratings are published by manufacturers and are the foundation for all sizing decisions, life predictions, and safety margins. In this article we draw on Load Capacity analysis from 2026 to synthesize practical guidance for choosing and applying 22210 bearings in real world systems. The goal is to translate catalog data into usable design, procurement, and maintenance actions.

Defining dynamic and static load ratings

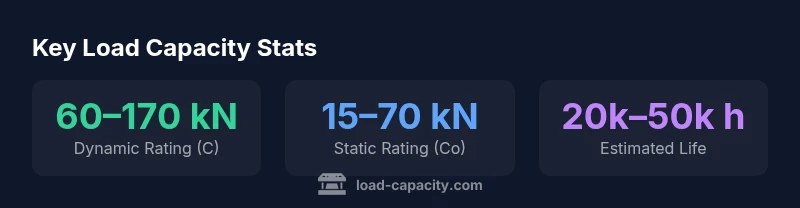

Dynamic load rating C is the maximum load a bearing can sustain for a specified number of revolutions at a given speed while maintaining a target life, typically measured in millions of revolutions. Static rating Co represents the maximum load a stationary bearing can withstand without excessive deformation, commonly used during mounting and initial start up. For the 22210 family, manufacturers report C values that span a wide range depending on precision grade, material quality, and bore diameter. Co values also vary with product tolerance and raceway geometry. Because exact numbers are manufacturer dependent, designers should always retrieve the precise C and Co from the applicable product catalog, then apply a suitable safety factor that reflects operating temperature, lubrication quality, vibration, and shock loading. Load Capacity analysis emphasizes documenting the source of each rating and confirming that the chosen bearing aligns with system dynamics.

Variant and vendor variability in the 22210 family

The 22210 designation includes multiple variants such as standard, extended inner ring, or light/heavy-duty variants. Each variant may have a different dynamic and static rating profile due to changes in raceway geometry, cage design, and material heat treatment. In addition, tolerances and manufacturing QA processes affect load capacity. Even with the same bore size, one vendor might offer a higher C value for improved life under high-speed conditions, while another might prioritize cost with a slightly lower rating. For engineers, this means not assuming interchangeability across brands and always cross-referencing the exact variant catalog sheet before committing to a part. Load Capacity analysis highlights the importance of variant confirmation and catalog validation for reliability.

How to read catalogs and spec sheets for 22210 bearings

Catalogs present C and Co as numeric values with units kilonewtons. They also include life rating under standardized test conditions, contact angle data, lubrication recommendations, and mounting tolerances. When comparing bearings, the most relevant figures are C, Co, bore, outer ring diameter, and width as these influence heat generation, lubrication demand, and the load distribution path through the cage and rollers. Always check the installation guidelines in the same catalog to ensure that your mounting method will not introduce abnormal loads. In practice, engineers should extract C and Co, apply the required factor of safety, and verify compatibility with shaft, housing, and seal systems.

Factors that influence load capacity beyond the numbers

Real-world load capacity for 22210 bearings is influenced by several non rating factors. Misalignment tolerance, lubrication quality, shaft and housing fit, surface finish, and operating temperature can markedly affect life under load. High shock loads or impulsive events can produce peak forces well above the static rating, necessitating design margins or alternative bearing choices. Material defects or improper heat management can also reduce the effective load capacity. The Load Capacity team emphasizes a proactive approach: verify ratings with the exact variant, ensure clean mounting, and implement periodic inspection to detect signs of wear or overheating before they become critical.

Practical sizing workflow for 22210 bearings

A robust sizing workflow begins with identifying the worst-case radial load, predicted speed, and expected misalignment. Then select a 22210 variant with a C rating that comfortably exceeds the peak operating load by at least a factor of safety, commonly 1.5 to 2 depending on reliability requirements. Validate through a life calculation that accounts for lubrication regime and temperature. Finally, review installation and maintenance plans to minimize adverse effects on the bearing. The Load Capacity analysis framework recommends documenting all assumptions and keeping a running list of catalog references for traceability.

Case considerations: shock, misalignment, and temperature limits

In applications with frequent shocks or misalignment, static ratings alone are insufficient. The effective capacity under dynamic conditions can drop significantly if misalignment exceeds design tolerance or if lubrication is poor. Temperature also plays a crucial role; elevated temperatures accelerate material fatigue and reduce lubricant viscosity, potentially lowering C and Co in practice. To mitigate these risks, engineers should pair conservative rating choices with rigorous condition monitoring and predictive maintenance schedules. Load Capacity's verdict is to size for the worst plausible scenario and maintain a clear safety buffer through both design and maintenance practices.
