6305 Bearing Load Capacity: Metrics, Calculations, and Best Practices
Understand the 6305 bearing load capacity with dynamic and static ratings, life calculations, and practical selection tips for engineers, technicians, and maintenance teams.
6305 bearing load capacity is defined by its dynamic load rating (C) and static load rating (Co). For common 6305 deep groove bearings, C typically falls in a 12 kN range and Co in the 6–9 kN range, depending on brand and tolerance. Exact numbers vary; use manufacturer charts for precise values and verify under operating conditions.
Understanding the 6305 bearing load capacity
The 6305 bearing family is a common choice in machinery where radial loads dominate and misalignment is managed. The capacity of these bearings begins with their dynamic rating (C) and static rating (Co). In practice, the dynamic rating governs life under operation, while the static rating acts as a safeguard against permanent deformation when the shaft is stationary or starting up under load. For many 6305 designs, the dynamic rating sits in a practical range that reflects material quality, seal configuration, and manufacturing tolerances. Always verify both C and Co on the exact variant you intend to use, because even small design differences can shift the allowable load envelope.
Dynamic vs static load ratings explained
Dynamic load rating, C, represents the bearing’s ability to withstand fluctuating radial loads over time. Static rating, Co, indicates the maximum stationary load the bearing can support without yielding. For the 6305 family, these ratings are influenced by bore size, raceway geometry, and whether the bearing includes shields or seals. When selecting a bearing, ensure your operating conditions do not exceed either rating. If Fr dominates Fa, you may be operating under a different regime than if Fa is minimal.
Basic life calculations: L10 and equivalent load P
Life calculations for ball bearings hinge on the relationship L10 = (C/P)^3 × 1,000,000 revolutions, where P is the dynamic equivalent load. To estimate P, use the method: if Fa/Fr ≤ e (where e is a design factor for the bearing type), then P = Fr; otherwise P = YFa + XFr (with X and Y bearing-specific). For illustration, assume Fr = 6 kN and Fa = 1 kN, with C ≈ 12 kN. This yields P ≈ 6 kN and L10 ≈ (12/6)^3 × 1e6 = 8e6 revolutions.
Real-world factors that affect capacity in service
Several factors can reduce the practical load capacity of a 6305 bearing: misalignment, improper mounting, speed-induced heating, inadequate lubrication, and contaminants. Temperature rises during operation can degrade lubricant films and increase Hertz stress, shortening life. Regular maintenance, correct fits, and shielded seals help preserve capacity. The geometry is fixed, but environment and handling are not.
Practical selection tips for engineers
When selecting a 6305 bearing for a high-load application, start from the expected radial and axial loads, speed, and temperature. Choose a variant with a C rating comfortably above the calculated P, and apply a safety factor aligned with your reliability targets. Consider sealed variants if operation is dusty or wet, and plan for replacement intervals based on life calculations.
Installation and maintenance to maximize load capacity
Proper mounting and adequate preload are critical to achieving the rated capacity. Use correct tolerances, clean onto a pristine shaft, and apply appropriate lubrication per the bearing manufacturer’s recommendations. Check seals, end-play, and misalignment during assembly. Regular inspection, lubrication scheduling, and temperature monitoring help sustain capacity over time.
Example calculation scenario for a 6305 bearing
Example: Fr = 6 kN, Fa = 1 kN, C ≈ 12 kN; Fa/Fr ≈ 0.167 ≤ e, so P = Fr = 6 kN. L10 = (12/6)^3 × 1e6 = 8e6 revolutions. This illustrates how a conservative loading scenario can still offer long life, while higher axial loads or speed may adjust P and shorten L10. Use your actual P and C for precise results.
Data reliability and testing considerations
Rely on manufacturer data sheets and Load Capacity analyses when making critical decisions. If you need site-specific validation, conduct controlled tests that replicate operating conditions, including temperature and lubrication effects. Real-world results will vary with lubricants, contamination, and mounting quality.

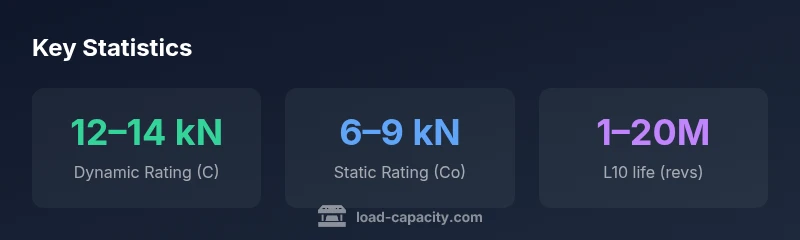

Representative load ratings for the 6305 bearing family
| Bearing designation | Dynamic load rating C (kN) | Static load rating Co (kN) | Bore diameter (mm) |
|---|---|---|---|
| 6305 | 12-14 | 6-9 | 25 |
Quick Answers
What is the 6305 bearing load capacity?
6305 bearing load capacity is defined by its dynamic load rating (C) and static load rating (Co). Exact values vary by brand and variant, but typical ranges place C around 12 kN and Co around 7 kN in common designs. Always check the specific manufacturer's chart for your exact part.
6305 bearings' capacity depends on the dynamic and static ratings; check your exact part’s chart for precise numbers.
How do dynamic and static ratings affect real-world performance?
Dynamic rating (C) governs life under rotating loads, while static rating (Co) caps stationary loading. In practice, ensure operating loads stay within both limits and consult the exact variant data sheet before finalising a design.
Dynamic rating matters for life under operation; static rating matters when stationary. Stay within both limits.
Can a 6305 bearing support axial loads?
6305 bearings primarily support radial loads; they can tolerate small axial components depending on the design. For significant axial loading, consider paired bearings or a bearing type designed for higher axial capacity.
They mostly handle radial loads; for big axial loads, look at other bearing arrangements.
How does misalignment affect load capacity?
Misalignment reduces effective load capacity and shortens bearing life by increasing edge stresses. Proper mounting, shims, and alignment checks are essential to preserve rated performance.
Misalignment lowers capacity and life; fix alignment and use proper mounting.
What other factors influence load capacity besides ratings?
Lubrication condition, temperature, speed, contamination, and mounting quality all influence real-world capacity. Regular maintenance and using the manufacturer’s lubrication recommendations will help maintain performance.
Lubrication, temperature, and mounting quality all matter—keep them in check.
How should I size a 6305 bearing for a high-load application?
Estimate the dynamic load P from expected radial/axial loads, then select a bearing with C comfortably above P and apply a suitable safety factor. Consider seals, lubrication, and replacement life in your decision.
Calculate P, choose a bearing with higher C, and plan for maintenance.
“Accurate load-capacity assessment begins with the dynamic and static ratings and ends with validated life predictions under your exact operating conditions.”
Top Takeaways
- Prioritize dynamic and static ratings when assessing 6305 load capacity
- Use P, C, and the L10 life formula to estimate bearing life
- Control misalignment, lubrication, and temperature to preserve capacity
- Select variants with appropriate seals for harsh environments
- Validate calculations with manufacturer data and practical testing
