Web sling capacity is defined by the Working Load Limit (WLL), which depends on sling width, material (nylon or polyester), and construction grade. For everyday lifting, common WLL ranges span roughly from 1,000 to 10,000 pounds, depending on width. Remember that sling angle, hitch type, and contact with sharp edges can dramatically reduce effective capacity, so always select the lowest-rated element in a lift.
Why web sling capacity matters
Web slings are a core lifting accessory across industries—from construction to manufacturing—providing simple, versatile, and cost-effective load control. Yet capacity is not a single number; it is the intersection of sling width, material, weave, grade, and the specifics of a given lift. When capacity is misjudged, failures can range from frayed slings and damaged hardware to dramatic load drops or dangerous uncontrolled drops. From Load Capacity’s perspective, the most important concept is to identify the Working Load Limit (WLL) for the exact configuration you plan to use and to recognize how real-world factors—such as the angle of lift, number of legs, hitch method, and the underlying surface—alter that capacity. In practice, the safer choice is to use a conservative estimate and err on the side of a higher-capacity option if any uncertainty exists.
Understanding WLL, breaking strength, and safety factors
WLL is the vendor- or standard-based maximum load a sling should lift during normal operation. It is derived from the sling’s width, material (nylon or polyester), and construction grade, incorporating a safety factor that accounts for wear, abrasion, and edge interactions. In many jurisdictions, a minimum safety factor around 4:1 to 7:1 is common for web slings; this is not universal, so consult your applicable standard. Remember also that WLL assumes proper use: no side loading, sharp corners protected, and loads balanced. In short, WLL is a conservative, real-world constraint intended to keep lifting operations safe under anticipated conditions.
How sling width, material, and construction affect capacity
Sling width is a primary driver of WLL: wider slings tolerate heavier loads because the load is distributed over a larger area, reducing local stress and heat. Nylon and polyester are standard materials, each with different abrasion resistance and elongation characteristics; polyester often provides better flexibility and UV resistance, while nylon offers higher stretch which can help absorb shock. Construction quality—how the weave is bound, the stitching pattern, and any hardware compatibility—also affects long-term performance. When selecting a sling, consider your typical lift range and whether frequent exposure to heat, chemicals, or rough edges occurs; these factors can degrade capacity faster than anticipated by nominal ratings.
The impact of lift angle, number of legs, and hitch method
Capacity can decrease dramatically as lift angles increase away from vertical. For two-leg lifts, a wide load angle reduces the effective WLL on each leg, so use angle-corrected charts and keep the legs as vertical as practical. More legs spread the load and can reduce per-leg tension, but they also introduce distribution complexities and potential snag points. Hitch method (eye-strap, choker, or basket) changes how forces are transmitted to the sling. When in doubt, model the lift with conservative assumptions and validate with a practical test or simulation before committing to a full lift.
Edge protection, joint condition, and surface contact
Edge sharpness and surface damage are silent capacity killer culprits. Without edge protection, load contact can quickly cut into the sling weave, reducing WLL and shortening service life. Use rated edge protectors, correct knotting or tie-off methods, and avoid dragging slings across rough surfaces. Regularly inspect for cuts, glazing, pulled threads, chemical staining, or heat damage. Replace any sling showing signs of damage or after a load involvement that caused deformation or significant exposure to heat.
Sizing a web sling for a real lift: step-by-step example
Consider a two-leg lift for a 5,200-lb load using two 1.5-inch nylon slings in a basket hitch. Start by selecting a sling with a WLL per leg exceeding 2,600 lb (to satisfy a 4:1 safety factor). Confirm that the angle is close to vertical; if not, consult angle-correction charts and adjust quantities or sling width. Ensure edge protection is in place, inspect the slings for fraying or cuts, and verify hardware compatibility (hooks, shackles, connectors). If any doubt remains about real-world capacity, choose larger slings or add a third leg to distribute load more evenly. This disciplined approach prevents overloading and supports repeatable, safe lifts.
Inspection and maintenance best practices
Inspection should be a standard operation: inspect before every lift and at wash-downs or storage changes. Look for fraying, glazing, chemical damage, heat exposure, and damaged hardware or wear along the sewn junctions. Record inspection results and retire any sling with damaged weave, missing tags, or compromised hardware. Store slings in a dry, cool environment away from direct sunlight and chemical vapors. Establish a replacement plan aligned with manufacturer guidance and your internal safety policy.
Common mistakes and how to avoid them
Common mistakes include relying on nominal ratings without considering load angle, overloading beyond WLL, using damaged or worn slings, neglecting edge protection, and mixing sling types in a single lift. To avoid these errors, implement a pre-lift checklist, train operators on angle corrections and hitch selection, and maintain a schedule of periodic asset inspections. The most effective way to prevent accidents is to treat every lift as a potential failure scenario and default to conservative sizing.
When to retire or replace web slings
Web slings should be retired if there are signs of damage—snags, cuts, glazing, chemical burns, or heat damage—or if an incident indicates degraded performance. Even without visible damage, a sling’s service life depends on usage frequency, load profiles, and environmental exposure. Keep digital records of usage and inspections; when a sling approaches or surpasses recommended service life or shows any irregularities, replace it. By proactively retiring worn slings, you reduce the risk of a critical failure during lifting operations.

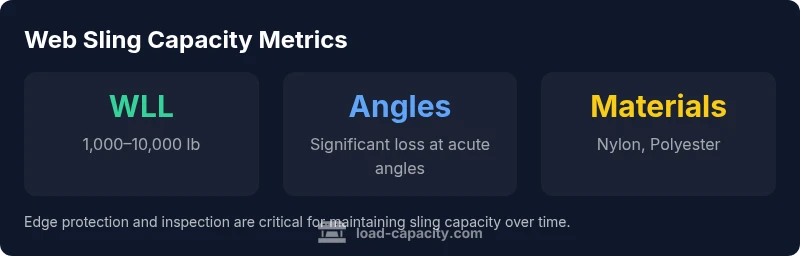

Web sling capacity parameters
| Parameter | Typical value | Notes |
|---|---|---|
| WLL (lb) | 1,000–10,000 | Depends on width, material, grade |
| Sling width (in) | 0.5–4 | Wider slings handle heavier loads |
| Angle (deg) lift | 0–60 | Capacity falls with angle; use charts |
Quick Answers
What is the difference between WLL and ultimate strength?
WLL is the maximum load you should lift under standard conditions, reflecting a conservative safety factor. Ultimate strength is the maximum load the sling material can withstand before failure, which is not used for routine lifting to ensure a safety margin.
WLL is the safe limit for most lifts, while ultimate strength is higher and not intended for everyday use.
How do you calculate effective capacity for a two-leg lift at an angle?
Begin with the per-leg WLL and apply angle-correction factors from standard charts. Small changes in load angle can dramatically reduce capacity, so verify with a conservative correction and consider adding a third leg if needed.
Use angle correction charts and err on the side of caution.
Can web slings be reused after an impact or visible deformation?
No. Any impact, deformation, or damage to the weave or hardware warrants retirement. Even if damage seems minor, the weakened fabric can fail under load.
If damaged or deformed, retire the sling and replace it.
What are best practices for inspecting web slings?
Inspect before each lift for fraying, glazing, chemical damage, or heat exposure. Check stitching, tags, and hardware. Document findings and retire damaged slings.
Always inspect before use and retire if you see damage.
Are there color codes for sling grades?
Yes, many manufacturers use color-coded tags to indicate load capacity and material. Always verify color against the manufacturer’s tag and consult your site’s standards.
Color codes help identify capacity, but always verify with the tag.
How often should web slings be replaced?
Replace slings after visible damage, after a significant load event, or according to the manufacturer’s life recommendations and your safety policy.
Replace damaged slings or after impactful events.
“Effective web sling capacity is best understood through WLL and the real-world factors of angle, hitch, and edge protection. Proper selection and inspection are non-negotiable for safe lifting.”
Top Takeaways
- Assess WLL based on the lowest-rated component
- Account for load angle and number of legs
- Inspect web slings before every lift
- Use edge protection to prevent damage
- Follow Load Capacity guidelines for safe lifting
