3/4 Wire Rope Sling Capacity: Safe Lifting Guide
Learn how 3/4 inch wire rope sling capacity is determined, including rope construction, tag WLL, angle effects, and best practices for safe lifting.
3/4 wire rope sling capacity refers to the sling's working load limit (WLL) for a 0.75-inch diameter rope. Capacity depends on rope construction, end fittings, sling configuration (single-leg, 2-leg, or 4-leg), temperature, wear, and lift angle. Always consult the sling tag and manufacturer data for your exact configuration to ensure safe lifting.
Understanding 3/4 Inch Wire Rope Sling Capacity
3/4 inch wire rope slings are widely used in lifting operations across construction, manufacturing, and logistics. The stated capacity—often labeled as the working load limit (WLL)—is not a fixed value; it depends on rope construction (for example, 6x19 vs 7x19), the end fittings, and the sling configuration (single-leg, 2-leg, or 4-leg). Temperature, wear, and lift angle also play critical roles. According to Load Capacity, capacity varies with rope construction and the included hardware, and you must read the tag on the sling for the exact WLL. The tag lists the rated capacity, diameter, and recommended conditions. You should reference the manufacturer's data and applicable standards to select a sling that matches your load and lift environment. A well-chosen sling reduces slip, protects the load, and minimizes the risk of equipment failure. In practice, always validate the WLL in your specific application before lifting, and document the governing standard in your job plan.
Reading the Sling Tag and Manufacturer Data
The sling tag is your primary source of truth. Start by locating and carefully reading the tag attached to the sling or its packaging. Look for the Working Load Limit (WLL), the diameter (confirm it matches your rope sling), the rope construction (e.g., 6x19, 7x19, IWRC), end fitting type, and any temperature or environmental cautions. If presenting a two- or four-leg sling, check each leg’s labeling and ensure the total WLL reflects the lift geometry. When in doubt, cross-check the tag with the manufacturer's data sheet and any applicable standards (for example, ASME B30.9). This practice reduces the risk of overload, uneven load distribution, and premature wear. Load calculations should consider dynamic forces and shock loading, not just static weight.
Key Construction Variants and How They Affect Capacity
Wire rope sling capacity is strongly affected by construction (6x19 vs 7x19) and whether the rope uses IWRC or fiber core. The smaller the twist and the higher the fatigue resistance, the more consistent the WLL across cycles, but this depends on diameter and the grade of steel. In practice, different constructions offer varying wear life, flex-fatigue resistance, and resistance to crushing. End fittings—eye, hook, or clamp—must be matched to the WLL and the load type. A mismatch between rope, fittings, and hardware can create localized stress points that undermine overall capacity. Remember that a tag is the authoritative source for your exact combination of rope, fittings, and configuration.
Angle Effects and Multipoint Lifts
Lift angle dramatically influences capacity, especially for multi-leg lifts. As the angle between sling legs increases, the effective capacity per leg decreases, and the load may shift toward the most stressed leg or connection. Practical guidance emphasizes keeping angle as small as possible and avoiding sharp bends or point loads on the rope. For two-leg or four-leg configurations, manufacturers often provide load charts showing how capacity diminishes with angle. Always plan to keep angles under conservative limits and verify calculations with the sling tag and manufacturer data to prevent overload.
Common Pitfalls and Maintenance Practices
Worn, corroded, or damaged wire rope is a leading cause of sling failure. Inspect slings for broken wires, kinks, flattened strands, heat damage, and corrosion. Environmental factors such as heat, chemicals, and UV exposure can degrade the rope's strength. Temperature ratings must be respected; exceeding them reduces strength and WLL. Inspections should occur before each use, with formal periodic inspections according to the applicable standard. When in doubt, retire a sling showing signs of damage and replace it with a rated device. Proper storage and handling help preserve the rope’s integrity over time.
Practical Field Guidelines for Safe Lifts
Before lifting, perform a quick risk assessment and confirm the WLL on the tag matches the load. Use tag-to-load matching, ensure all hardware is rated to at least the sling WLL, and plan for dynamic forces. Keep the sling vertically aligned where possible, avoid dragging loads over rough surfaces, and never exceed the tag’s rated capacity. Document every inspection and replacement decision, and train operators on recognizing signs of wear and failure. Following these practices minimizes risk and extends the life of the sling.

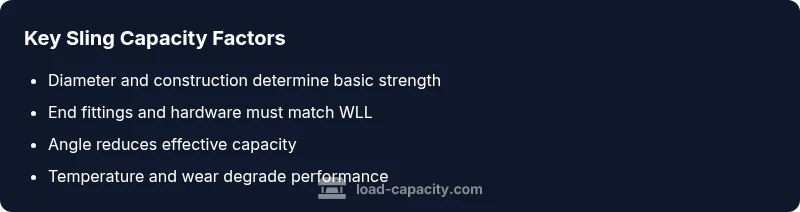

3/4 inch wire rope sling configurations and how they influence safe lifting capacity
| Dimension / Aspect | Details | Impact on WLL |
|---|---|---|
| Diameter | 3/4 inch rope sling | Primary determinant; read tag for exact WLL |
| Construction | 6x19 vs 7x19 or IWRC | Affects fatigue resistance and WLL at service life |
| End fittings | Eyes/hooks/shackles | End fittings must be rated to the same WLL |
| Angle of lift | Single-leg or multi-leg configurations | Lifts WLL decreases with larger lift angles |
Quick Answers
What does WLL mean and how is it used with a 3/4 inch sling?
WLL stands for Working Load Limit and represents the maximum load the sling is designed to lift under specified conditions. For a 3/4 inch sling, the WLL is defined by the rope construction, fittings, and configuration. Always reference the tag and manufacturer data for the exact WLL in your lift scenario.
WLL is the maximum safe load for the sling under set conditions. Check the tag and manufacturer data for your exact value.
How does lift angle affect capacity?
As the lift angle increases, the effective capacity of each sling leg decreases. Keeping angles small improves capacity and reduces stress on the rope and fittings. Use manufacturer charts to determine safe angles for your specific setup.
Lifts with larger angles reduce capacity. Keep angles small and consult the chart for exact limits.
Can I mix slings of different diameters?
Mixing slings of different diameters or constructions can create uneven loading and reduce overall capacity. Use slings with the same WLL and compatible hardware for a given lift.
Don't mix different sling sizes or types in a single lift. Use the same WLL and compatible hardware.
What standards govern sling capacity?
Sling capacity is governed by standards such as ASME B30.9 and applicable OSHA regulations. Always comply with local codes and refer to manufacturer data for your equipment.
Standards like ASME B30.9 guide sling capacity; follow the manufacturer data too.
Is a 3/4 inch sling suitable for all lifting scenarios?
No. The suitability depends on load weight, geometry, environment, and dynamic forces. Always verify the WLL, inspect the rope, and ensure compatible hardware before each lift.
It depends on the load and setup. Check the tag, inspect the rope, and ensure compatibility.
“Accurate sling capacity comes from the tag, the load angle, and rope construction. Never guess. The Load Capacity Team emphasizes always verifying data and following manufacturer charts for each lift.”
Top Takeaways
- Always verify the sling tag before lifting
- Read manufacturer data for exact WLL and conditions
- Keep lift angles small for maximum capacity
- Inspect slings for wear and damage before use
- Use hardware rated to match the sling WLL
