Understanding the load capacity of a 3 8 eye bolt

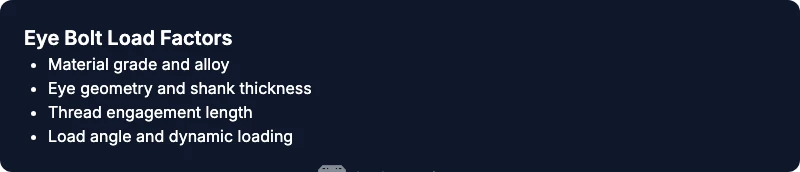

Key factors that determine the load capacity of a 3 8 eye bolt

The load capacity of a 3 8 eye bolt is not fixed solely by the nominal diameter. Several interdependent factors determine the effective WLL (working load limit) for any lifting or tying application. Material grade and alloy composition strongly influence yield strength and fatigue resistance. The eye geometry, thread engagement length, and shank design affect how load is transmitted through the bolt. Operational conditions—such as frequent dynamic loads, heat, corrosion, and environmental exposure—also alter performance over time. Finally, the orientation of the load (axial vs. angled) and the presence of any bending or misalignment can dramatically reduce usable capacity. In practice, engineers begin with the manufacturer’s published WLL data and then apply conservative adjustments for real-world conditions. Load paths that induce bending moments or cross-loading are a common source of unexpected capacity loss. Load-path orientation and ensuring that the pulling force remains as close to the bolt axis as possible are crucial for preserving capacity.

• Material and grade: Higher-grade alloys generally yield higher WLL, but cost and availability vary by supplier.
• Eye geometry and bolt length: A well-formed eye with adequate thickness resists deformation under load better than a marginally finished eye.
• Thread engagement: Sufficient engagement length is essential to prevent thread stripping under load. Short engagement or damaged threads considerably lowers WLL.
• Environmental effects: Corrosion, heat, and chemical exposure can degrade material properties; choose a finish suited to conditions, such as stainless steel for corrosive environments.
• Load characteristics: Static axial loads are typically safer than repetitive or shock loads; dynamic lifts require more conservative limits and sometimes supplemental hardware.

To ensure safety, always verify the exact WLL from the manufacturer for your specific bolt grade and configuration, and apply the intended safety factor in your lift plan.

Reading and interpreting eye bolt load charts

Eye bolt load charts translate material, diameter, thread, and eye geometry into a usable number for lifting planning. A typical chart will present the WLL (and sometimes the proof load and ultimate load) for a given bolt size and material grade, along with recommended installation practices. When reading charts for a 3 8 eye bolt, you should confirm:

• Material grade and coating: Carbon steel, stainless steel, and coated variants may have different WLL.
• Eye bolt type: Standard, machine-threaded, or shoulder eyes can influence how load is transmitted through the shank.
• Engagement length: Charts often require a minimum thread engagement length to achieve published WLL.
• Load angle: Most charts assume a straight axial lift; angled lifts reduce capacity and may require a derating factor.

If you are unsure, consult the manufacturer’s data sheet rather than assuming the WLL from the diameter alone. Always perform a clear headcount of the critical parameters before lifting.

• Axial, single‑plane loads are typically the baseline case.
• Multi‑point or angle lifts require applying published derating factors.
• Dynamic loads may call for an additional safety margin beyond the standard 5:1 guideline.
