Load Capacity of 3 8 Bolt: Technical Guide

Overview of the load capacity of 3 8 bolt

According to Load Capacity, the load capacity of a 3 8 bolt is not a single fixed number; it depends on how the bolt is manufactured, installed, and loaded. The phrase load capacity of 3 8 bolt is commonly used when assessing bolted connections in machinery, automotive assemblies, and structural components. The most important variables are bolt grade, material, and shank diameter, along with how the bolt engages with the mating thread, the plate thickness, and whether washers or locking devices are used. When assessing capacity, engineers distinguish between tensile loading, shear loading, and mixed-loading conditions, because each mode imposes different stress patterns on the bolt and the surrounding material. Surface conditions, lubrication, and corrosion protection influence friction, clamp load, and long-term performance. This block sets the stage for a practical approach to predicting safe loads without overdesigning or underestimating risk. The objective is to select a configuration that satisfies safety factors while keeping weight and cost reasonable; this means thinking in ranges rather than a single exact figure.

Material, grade, and their effect on strength

Material choice is a major determinant of capacity. The 3 8 bolt is a nominal diameter; when you select steel grades, Grade 2 is common for light‑duty applications with lower yield and break strength; Grade 5 and Grade 8 represent higher strength, offering greater potential load-carrying capacity. Alloying, heat treatment, and coating affect not only strength but fatigue resistance. Real-world use often requires evaluating the entire bolted joint: bolt, nut, washers, and plate stack. Temperature, humidity, and environment influence performance, so material compatibility matters. For design calculations, you need the grade identification on the bolt to apply the correct allowable stress. In many designs, you will also consider whether the joint is bolted or thread-locked, which changes the effective friction and thus the capacity. Finally, bolt elongation and necking under load should be accounted for, particularly in high‑duty cycles. The stiffer the bolt relative to the surrounding members, the more predictable the load distribution will be.

Engagement length and thread design considerations

Thread engagement length is a key lever to capacity. Longer engagement increases the threaded contact area, reducing the stress on the bolt shank and distributing load more evenly across threads. For a 3 8 bolt, ensure you have sufficient engagement with the mating nut or tapped hole to avoid thread stripping. In addition to engagement length, thread quality, fit class, and cleanliness affect performance. Debris, misalignment, or cross‑threading can dramatically reduce real‑world capacity. Lubrication reduces friction, which can raise clamping force but may also affect torque-tension relationships; use appropriate lubrication per code and torque specs. The bolt and nut pairing should match in strength class to avoid the weakest link limiting capacity. Finally, consider fatigue: repeated cycles can degrade thread engagement and reduce effective capacity over time; plan for inspections and replacements as needed.

Calculating safe load: steps and practical guidelines

Load Capacity analysis shows a practical approach to estimating the safe load for a 3 8 bolt in typical configurations without resorting to proprietary data. Step 1: identify the bolt grade and material. Step 2: determine the nominal diameter (3/8 inch) and select the appropriate shear area. Step 3: determine the allowable stress for the grade based on manufacturer data or a relevant code. Step 4: calculate the static capacity using the engagement and loading mode. Step 5: apply a conservative safety factor appropriate to the service environment and application. Step 6: verify with a professional engineer when in doubt. Because exact values depend on the entire joint geometry, you should always compare the calculated value with supplier data and applicable standards. Note that if the joint experiences mixed loading (tension plus shear), the effective capacity is reduced; design accordingly by using a load-path analysis or finite-element method if precision is required.

Real-world scenarios: example calculations with ranges

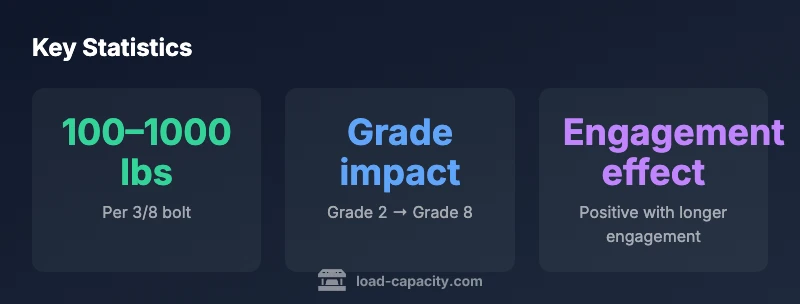

Scenario A: a steel plate joined by a 3 8 bolt in pure shear with Grade 5 bolts. In this case, a realistic range for per-bolt capacity might be on the order of hundreds to low thousands of pounds, depending on plate thickness and engagement. Scenario B: a high‑duty connecting joint in a machine housing, using Grade 8 bolts and good engagement; capacity per bolt may approach the upper end of the range, again depending on joint geometry. In all cases, verify with data from the bolt manufacturer and consider safety factors. In practice, engineers also account for corrosion, vibration, and assembly tolerance, which can erode nominal capacity over time. The key point is to use a conservative estimate and then validate with actual testing or codes.

Design tips for bolted connections

Use uniform tightening technique and ensure washers, lock nuts, or thread-locking adhesives as required by the design. Use torque values recommended by the manufacturer to reach the intended clamping force and document the resulting load path. Consider using anti-seize compounds for disassembly; ensure compatibility with materials. Where possible, avoid bending the bolt by misalignment or excessive flex in the connected plates. For dynamic loads, pair bolts with washers that accommodate movement without sacrificing clamp. Use redundant bolts or higher safety factors for critical joints. Finally, plan for inspection: check for loosening, corrosion, and thread wear during service life.

Inspection and maintenance considerations

Regular inspection is essential for bolted joints carrying significant loads. Check for signs of loosening, thread wear, corrosion, and fatigue cracks. Replace worn bolts and re‑torque after maintenance according to the service schedule. Document the grade and lot information to ensure traceability. Use non-destructive testing (NDT) or tactile checks where appropriate to catch hidden faults early. In high‑vibration environments, consider using locking mechanisms or thread‑locking compounds to maintain clamp. Environmental exposure increases corrosion risk; select protective coatings accordingly. Finally, maintain clean contact surfaces; burrs and foreign matter can create stress concentrations. This proactive approach helps retain the intended load path and reduces failure risk.

Quick-start checklist for field engineers

• Confirm bolt size (3/8) and grade; verify compatibility with mating parts.
• Inspect thread engagement length and presence of washers or nut types.
• Apply a code-based safety factor suitable for the environment.
• Verify torque control with manufacturer specifications.
• Check surface condition and corrosion protection; plan for maintenance windows.

Limitations and consulting a professional

The numbers discussed here are general guidance; real-world results depend on full joint geometry, material properties, and service conditions. For safety-critical or high-load applications, consult a licensed engineer and reference applicable standards and testing data.
