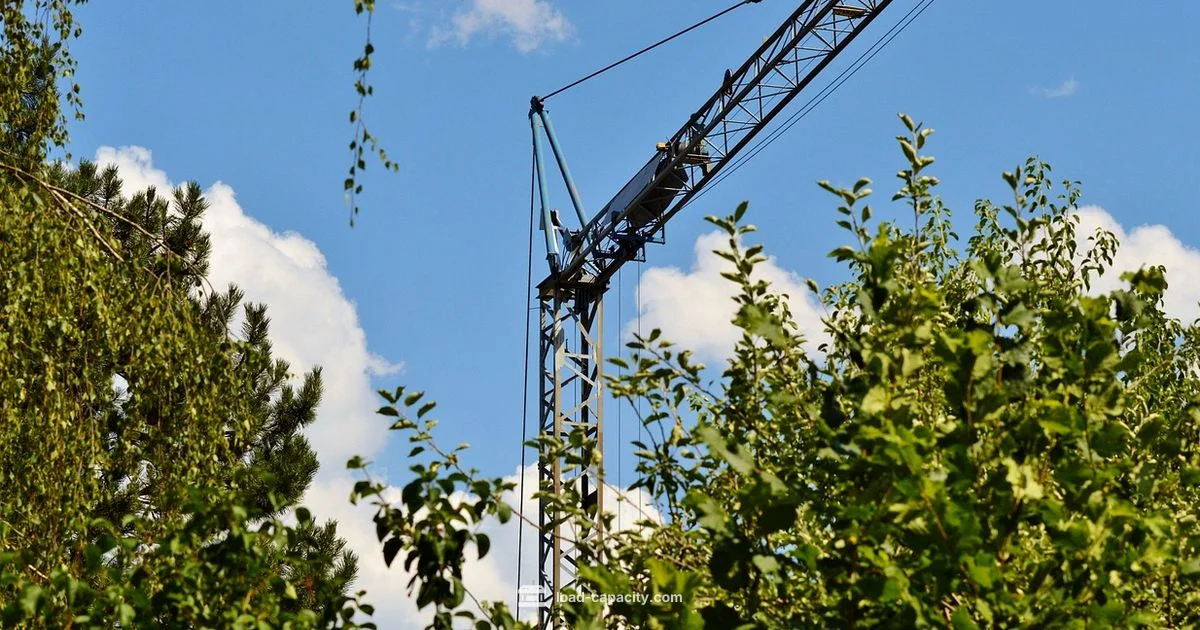

Lifting Capacity Test: Safe, Accurate Procedure

What is a lifting capacity test

A lifting capacity test is a structured procedure used to determine the maximum safe load that a crane, hoist, or lifting device can handle under real-world conditions. The test applies progressively increasing loads—often using calibrated weights or test loads—while monitoring structural response, deflection, and stability. The goal is not only to identify a single number but to verify consistent performance across operating ranges, confirm that safety devices engage correctly, and establish a documented limit that can be referenced in maintenance and operations procedures. In practice, engineers tailor the test to equipment type, support structure, and site constraints, ensuring measurements are traceable to calibration certificates. A well-executed lifting capacity test reduces risk, supports compliance with standards, and provides confidence for operators.

During planning, define what constitutes a pass, what margins are acceptable, and how to handle dynamic effects such as sway or surge. Always align with local regulations and manufacturer guidance. The lifting capacity test should be conducted by trained personnel using documented procedures and appropriate PPE.

Safety foundations for a lifting capacity test

Safety is the cornerstone of any lifting capacity test. Establish a written test plan that specifies the purpose, scope, acceptance criteria, and emergency stop procedures. Ensure the testing area is clear of bystanders, with barriers, warning signs, and controlled access. All personnel should wear approved PPE, and a designated observer should monitor for deviations from plan.

Before lifting, verify that all lifting gears, slings, hooks, and attachments are in good condition and within rated limits. Calibrated measurement devices must be verified or re-certified, and test loads should come from traceable sources. A culture of safety means stopping the test at the first sign of abnormal noise, excessive deflection, or unexpected movement. Load paths should be reviewed to prevent uncontrolled swinging or load drop, and a clear communication protocol must be in place between operators and the spotter. According to Load Capacity, standardized safety checks reduce risk and improve reproducibility of results.

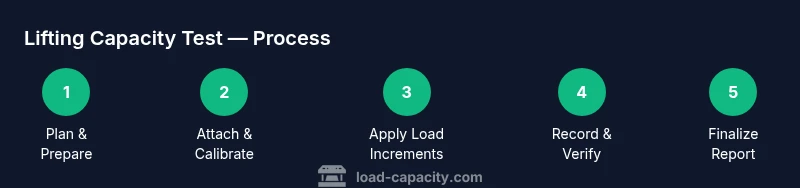

Planning the lifting capacity test: scope, standards, and measurement plan

A sound plan defines the equipment under test, load targets, and the method for collecting measurements. Identify the test object (crane, jib, hoist, or other lifting device) and confirm its current maintenance status. Choose measurement methods that provide traceable data—such as calibrated load cells, dynamometers, and crane scales—and specify how deflection, oscillation, and slippage will be monitored. Document the expected load profile, including target loads and ramp rates, and set clear acceptance criteria for performance margins. Align the plan with applicable standards and manufacturer recommendations. Prepare a data sheet to log load, time, crane angle, and environmental conditions so results are reproducible in future tests. The lifting capacity test should produce a formal report with calibration certificates attached.

Required equipment and calibration considerations

An accurate lifting capacity test requires dependable hardware and properly calibrated instruments. Essential equipment includes calibrated test weights or load blocks, rated slings and connectors, load cells or dynamometers, crane scales, and a data-logging device or computer to capture measurements. Auxiliary gear includes sighting targets for measuring deflection, a tape measure for geometry checks, and PPE for personnel. All measurement devices must be calibrated within the required interval and accompanied by a current calibration certificate. Ensure that load attachments and rigging are compatible with the test and rated for the test loads. Regularly verify that sensors are zeroed and that data records are time-stamped and tamper-evident. For a robust test, maintain a traceable chain of custody for all loads and measurement data. Load Capacity emphasizes calibration accuracy as the backbone of trustworthy results.

Designing the load profile for a lifting capacity test

The load profile determines how loads are applied and progressed during the test. Start with a light, non-load condition to verify setup and control responses, then apply incremental loads up to the planned target range. Use a consistent ramp rate to avoid dynamic effects that could distort readings. Record each increment with time stamps and environmental notes (wind, temperature, surface condition). Include a realistic distribution of loads to reflect real operating scenarios, such as uneven load distribution across a hook or multiple lines in use. The goal is to confirm that the system behaves predictably across the full range of operation while maintaining safety clearances and acceptable deflection limits. Throughout, maintain alignment with the test plan and document any deviations for review.

Setting up the test area for a lifting capacity test

Prepare a controlled environment to minimize risk during the test. Establish a dedicated testing zone with barriers, signage, and exclusion of non-essential personnel. Ensure pass-throughs are clear and the load path is unobstructed. Check ground conditions or support surfaces for stability and levelness. Position spotters to monitor the load path and to communicate with the operator. Verify that emergency stop devices are accessible and tested prior to lifting. Plan for weather considerations if outdoors, and provide shade or shelter as needed to maintain instrument accuracy. Good site setup reduces the likelihood of accidental movement and improves measurement reliability during the lifting capacity test.

Executing the lifting capacity test: controlled lifts and monitoring

Begin with warm-up lifts at low load to confirm control and instrumentation functioning. Incrementally increase load according to the plan, maintaining smooth, steady movements and staying within rated limits. Monitor deflection, sway, and vertical/horizontal alignment in real time, and log any deviations. If readings exceed acceptance criteria, stop the test and assess. Ensure communication remains clear between the operator, spotter, and data collector. After reaching maximum intended load, perform a controlled return to rest, verifying that all systems return to baseline and that no residual movement remains. The lifting capacity test should document how the system responds under peak conditions and confirm that safety devices engage appropriately when needed.

Recording data and creating a lifting capacity test report

Accurate data capture is essential for a credible test report. Compile load, time, deflection, pendant current, hook orientation, and environmental conditions into a single record. Attach calibration certificates for all measurement devices and reference the test plan in the report. Use charts or graphs to illustrate load vs. deflection and any outliers. Provide clear conclusions about whether the equipment met acceptance criteria and any recommended actions, such as retesting after maintenance or adjustment of load profiles. The final report should be prepared with traceable authorship and signed by responsible personnel, ensuring readiness for audits or regulatory review.

Interpreting results: acceptance criteria and margins

Interpreting the results involves comparing observed performance to planned acceptance criteria. Check for acceptable deflection under load, safe brake and limit switch operation, and stable vertical alignment throughout the test. If the results meet criteria, document a verified lifting capacity limit and note any recommended margins for safe operation. If discrepancies arise, identify root causes—such as rigging issues, measurement errors, or structural concerns—and plan corrective actions. Document all decisions and maintain traceability to calibration data and test parameters. A rigorous interpretation process ensures that the lifting capacity test yields actionable, defensible conclusions.

Common challenges and error sources in lifting capacity tests

Even well-planned tests can encounter challenges. Common issues include incorrect load placement, inadequate rigging, sensor drift, or interference from nearby equipment. Dynamic effects like swing or gusts may distort readings if not properly controlled. Operator hesitation, inconsistent ramp rates, or poor data synchronization can introduce bias into results. To mitigate these risks, implement redundancy in measurements, cross-check with independent instruments, and maintain a robust communication protocol. Recognize that small errors in setup can scale into big uncertainties in results. Staying vigilant about potential error sources is a hallmark of a trustworthy lifting capacity test.

Next steps: maintenance and re-testing schedule after a lifting capacity test

A lifting capacity test informs maintenance planning and safety programs. After testing, incorporate findings into a preventive maintenance plan, update operating procedures, and schedule re-testing according to manufacturer recommendations and regulatory requirements. Document any changes to rigging, structural components, or control logic and re-validate the test results if major modifications occur. Establish a re-test interval based on usage, criticality, and observed wear. Regularly revisit calibration cycles for load sensors and measurement devices to ensure continued accuracy. The goal is to sustain reliable lifting capacity information over the asset’s life.
