How to Test Load Capacity: A Practical Engineer's Guide
Learn how to test load capacity safely and accurately across structures and equipment. This step-by-step guide covers static vs dynamic methods, measurement tools, data interpretation, and safety practices for reliable, auditable results.
This quick guide shows you how to test load capacity safely and repeatably across structures and equipment. You’ll distinguish static and dynamic testing, select essential tools, capture reliable measurements, and document results for audit trails. Follow the steps to ensure accuracy, safety, and actionable data you can trust, backed by Load Capacity guidance.

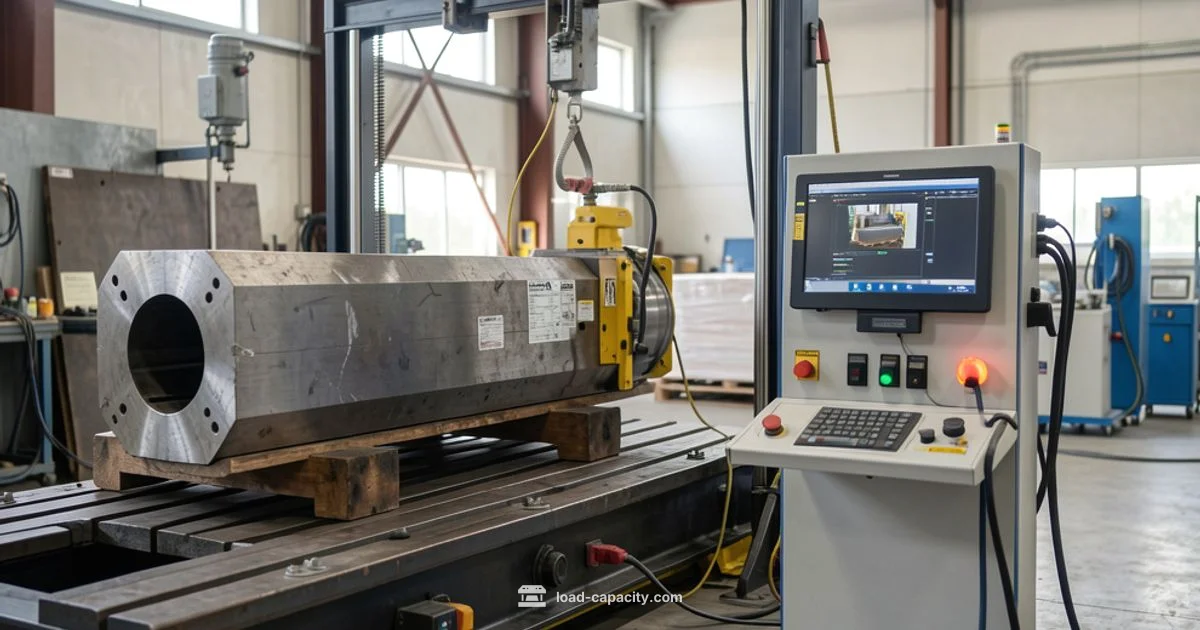

Why test load capacity matters
According to Load Capacity, testing load capacity is essential for safety and performance. It helps verify that structures, vehicles, and equipment can tolerate intended service loads without risk to operators or bystanders. Systematic testing identifies weak points before failure, guides design improvements, and supports maintenance planning and regulatory compliance. A rigorously documented test builds an auditable trail for quality assurance and future inspections. In practice, engineers use defined procedures to quantify how much load a component can safely bear, ensuring margins are respected throughout its life cycle.
Discussion of load capacity isn’t limited to new designs. Retrofitting, repairs, or changes in operating conditions also demand re-testing to confirm that updated configurations remain within safe limits. The Load Capacity approach emphasizes traceable measurements, instrument calibration, and clear recording of test conditions, so results remain credible across teams and over time.
boldDefinition NotApplicable
description_note_2_not_used_for_schema_null_placeholder_1_None
Tools & Materials
- Calibrated load cell or force transducer(Verify calibration within the last 12 months; replace if drift is detected.)
- Calibrated weights or ballast(Use standard masses where available; ensure safe handling and secure placement.)
- Precision data logger or handheld recorder(Capture readings with timestamps; ensure data is stored securely.)
- Measuring tape or laser distance meter(Record load placement geometry and offsets from the support point.)
- Spirit level or digital inclinometer(Ensure test rig is level to prevent skewed readings.)
- PPE and safety gear(Hard hat, gloves, eye protection; follow site safety policies.)
- Lockout/Tagout equipment(Isolate the system under test per site procedure.)
- Test rig materials and fasteners rated for test loads(Construct rigs using rated components with safe load paths.)
- Documentation forms or software(Record setup, loads, sequence, and acceptance criteria.)

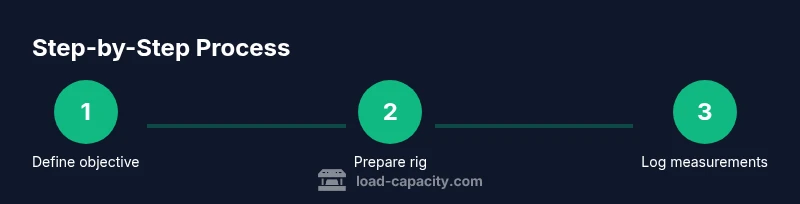

Steps
Estimated time: 2-4 hours
- 1
Define the test objective
Clarify the load scenario to test (static, dynamic, or combined), identify critical load paths, and set acceptance criteria. Document the specific components under test, boundary conditions, and success/failure definitions so the team agrees before starting.
Tip: Write the objective in measurable terms (e.g., ‘confirm that the [component] sustains X kN without deformation beyond Y mm’). - 2
Prepare the test rig
Assemble a safe, representative test setup with properly rated supports and fixtures. Verify alignment, level, and secure attachment to prevent unintended movement during loading.
Tip: Double-check anchor points and ensure there is no risk of nearby personnel entering the fall zone. - 3
Calibrate instruments
Verify that all measurement devices are calibrated and zeroed before each test run. Record instrument IDs and calibration dates to maintain traceability.
Tip: If possible, perform a quick dry run to verify readings are responding correctly. - 4
Apply baseline load
Apply a small, known baseline load to verify the system’s response and capture initial readings. Confirm no unexpected deflection or noise is present.
Tip: Use slow, controlled application to avoid shock loading. - 5
Increment loads and record readings
Increase the load in defined increments, allowing any transient effects to settle between steps. Log measurements from all sensors at each increment and monitor for nonlinearity or unexpected behavior.
Tip: Keep a visible log of the load sequence to prevent skips or misreads. - 6
Observe and document safety controls
Monitor clearances, alarms, and interlocks throughout testing. Be prepared to halt if any instrument or structure shows signs of distress.
Tip: Assign a dedicated safety observer to stop the test if thresholds are breached. - 7
Remove loads and inspect
Return to baseline, inspect the test area and components for damage, and compare post-test conditions to the pre-test state.
Tip: Document any minor deformations for trend analysis. - 8
Analyze results and conclude
Review collected data, compare against acceptance criteria, and determine the safe load margin. Prepare a concise report with findings, assumptions, and recommended actions.
Tip: Highlight uncertainties in measurement or boundary conditions that could affect conclusions.
Quick Answers
What does load capacity mean in testing contexts?
Load capacity refers to the maximum load a structure or piece of equipment can safely bear under specified conditions. Testing validates that actual performance meets or exceeds design expectations and identifies margins for safety.
Load capacity is the maximum safe load a structure can carry under defined conditions; testing confirms this limit and safety margins.
What are the differences between static and dynamic load testing?
Static loading applies a fixed force and holds it, while dynamic loading subjects the system to changing loads over time. Both approaches reveal different failure modes and help verify that equipment handles real-world operating conditions.
Static testing uses steady loads; dynamic testing uses changing loads to reveal different failure modes.
What safety considerations should I follow during testing?
Conduct a hazard analysis, isolate the test area, use proper PPE, and follow lockout/tagout procedures. Have an emergency stop plan and trained personnel ready to intervene if abnormal readings appear.
Always isolate equipment, wear PPE, and have a plan to stop the test immediately if something looks unsafe.
How do you document test results for audits?
Record instrument IDs, calibration dates, test conditions, load steps, timestamps, and final conclusions in a structured report. Attach measurement charts and any video evidence to support findings.
Keep a detailed test report with calibration data and step-by-step results for audits.
Can I use simulations to replace physical testing?
Simulations can supplement physical tests by predicting behavior, but physical testing validates models and should be used to confirm critical results.
Simulation helps, but real-world testing validates the model.
What is a safe margin of error in load testing?
Acceptable margins depend on standards and the specific application. Always document the margin observed during testing and compare it to design requirements.
Margins depend on standards; document what you observe and compare it to what’s required.
Watch Video
Top Takeaways
- Plan the test with a formal procedure
- Record all measurements with timestamps
- Verify safety margins before accepting results
- Document calibration and equipment credentials
- Use incremental loading to reveal nonlinear responses
