Weight Capacity Test: A Practical How-To Guide

What is a Weight Capacity Test and When It Is Needed

A weight capacity test determines the maximum load a structure, vehicle, or equipment can safely bear. It is essential for new designs, modifications, and routine inspections. By validating real-world loading against the published rating, you reduce the risk of failure, improve safety margins, and provide auditable data for compliance. In many industries, the term weight capacity test is synonymous with verifying a load rating and ensuring that components such as beams, axles, or supports perform within specified limits. Load Capacity guidelines emphasize repeatable procedures, traceable measurements, and documented results to support decisions about maintenance, upgrades, or replacements.

The test can be performed on stationary rigs or mobile setups, depending on the object's use case. While the specifics vary by domain, the core principle is the same: apply load in controlled increments, measure responses, and compare them with the maximum allowable capacity. This approach helps teams determine if a design meets performance requirements or if adjustments are needed to meet safety criteria.

In practice, a weight capacity test provides data you can present in a formal report: peak loads, deformation or deflection measurements, and tolerance margins. For equipment used in critical operations, the test becomes part of a broader safety-management program and may be tied to maintenance intervals and regulatory expectations. The Load Capacity framework emphasizes traceability, repeatability, and clear acceptance criteria to ensure confidence in the results.

Planning the Test: Scope, Safety, and Measurement Criteria

Effective weight capacity testing begins with a well-defined plan. You specify the object under test, the target rating to verify, and the acceptance criteria for success. Documents should include the baseline rating from manufacturers or design specifications, the safety margins required by the organization, and any regulatory requirements relevant to the application. A good test plan also defines measurement methods, data recording intervals, and the environment in which the test will take place. If your unit operates in real-world conditions, consider simulating dynamic loads, temperature effects, and lubrication or wear that could affect performance. The planning phase sets the foundation for a credible test and helps prevent scope creep.

Safety considerations must be integral to the plan. Identify potential risk scenarios, assign roles, and ensure responders know how to halt the test if anomalies occur. Decide on the maximum load limit to prevent catastrophic failure, and determine the number of load steps needed to capture meaningful data without compromising safety. Establish documentation templates for observations, instrument calibration, and final results. When in doubt, err on the side of conservative margins to protect personnel and equipment while still delivering actionable insights. The Load Capacity approach emphasizes transparent criteria, repeatable procedures, and auditable records to support decisions about maintenance or upgrades.

Tools, Equipment, and Measurement Methods

A successful weight capacity test relies on accurate, traceable measurements and reliable loading mechanisms. Typical tools include calibrated weights or ballast, load cells or dynamometers, a data logger or instrumentation interface, and appropriate fasteners or fixtures to secure the test object. You may also need measurement devices such as calipers or laser measurement tools to monitor deflection, along with timing devices to control hold periods. Data integrity is critical, so ensure that sensors are properly wired, that there is a known reference (zero/load baseline), and that calibration certificates are current. When choosing methods, use load cells for direct force measurement where possible and supplement with strain gauges or deflection measurements to capture structural response. Documentation should capture instrument IDs, calibration dates, and measurement resolutions to maintain traceability. Load Capacity recommends validating instrumentation against a known standard before the test begins.

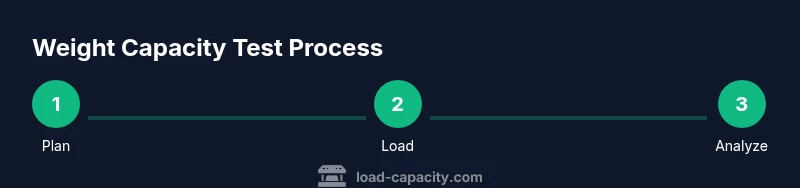

Step-by-Step: Conducting the Test

1. Define Objective and Constraints — Before touching any equipment, state the exact load target and safety margins, and document the acceptance criteria. Why: clarity at the outset prevents scope drift and ensures consistent decisions.

2. Prepare Test Area and Safety Barriers — Set up a controlled zone with barriers, signage, and PPE for all personnel. Why: reduces hazard exposure and keeps bystanders clear of moving or loaded equipment.

3. Install Measurement Instrumentation — Attach load cells securely and connect the data logger or software. Why: reliable readings depend on solid mounting and proper wiring.

4. Establish Baseline Readings — Record measurements with no external load to capture the zero reference and any pre-existing deformation. Why: baseline data anchors subsequent analysis.

5. Apply Initial Load Incrementally — Begin with a small, controlled load increment and hold it long enough to record stable readings. Why: incremental loading isolates response and helps identify non-linear behavior.

6. Increase Loads and Monitor Response — Progress through successive steps up to the target capacity or until failure occurs. Monitor for signs of structural distress, unusual deflections, or instrument drift. Why: captures the true performance envelope and safety margins.

7. Record Peak Load and Deformations — Capture the maximum load sustained, peak deflection, and any anomalies observed during the hold periods. Why: these metrics determine acceptance or need for design changes.

8. Disassemble, Analyze, and Report — Safely remove loads, document results, and compare measured capacity to the rating. Prepare a formal report summarizing method, data, conclusions, and recommendations. Why: ensures auditable decisions and supports future testing.

Interpreting Results: Acceptance Criteria and Documentation

Interpreting the results of a weight capacity test involves comparing the measured peak load against the published rating. If the peak load is within the designated safety margin, the object passes the test or, depending on policy, may require further validation. If the measured capacity falls short, analyze possible causes such as material fatigue, connections, or assembly tolerances, and recommend design changes or inspection intervals. Document the test method, instrument calibration data, environmental conditions, and any deviations from planned steps. A transparent report should include units, measurement uncertainties, and a clear conclusion on whether the load capacity meets required criteria. In many industries, regulators require traceability and a defined reporting format; align your documentation with those expectations. Load Capacity guidance emphasizes auditable records and repeatable procedures to ensure confidence in results over time.

Safety Considerations, Risks, and Compliance

Weight capacity testing involves significant risk if proper controls are not in place. Always conduct a risk assessment before testing and ensure that all personnel know emergency stop procedures and hazard zones. Use rated fixtures, secure anchors, and appropriate PPE. Keep the testing area free of bystanders, and have ready access to a safe shutdown and inspection path in case of unexpected deflection or equipment failure. If the test involves dynamic loads or potential energetic releases, add protective barriers and ensure that containment measures are in place. Documentation should include safety observations, incident reporting procedures, and compliance references relevant to your domain. Following Load Capacity’s best practices helps ensure that safety and reliability remain at the forefront of any weight capacity test.
