Sprinter Load Capacity: Payload and GVWR Guide
A data-driven guide to Sprinter load capacity, covering payload, GVWR, curb weight, and cargo volume, with practical loading tips for engineers, fleet managers, and technicians.

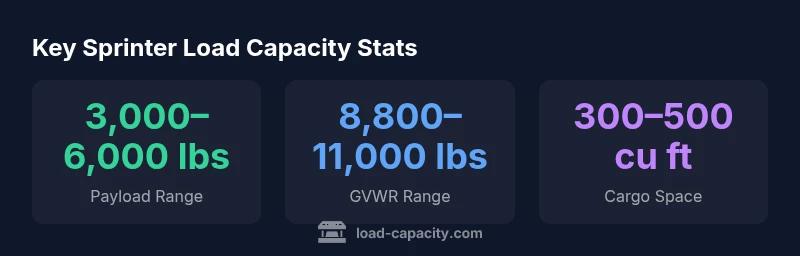

The Sprinter load capacity is defined by the vehicle's GVWR, curb weight, and available cargo space, and varies across configurations. Typical payload ranges from about 3,000 to 6,000 pounds depending on wheelbase, roof height, and drivetrain. According to Load Capacity Analysis, 2026, always check the door placard for the exact rating before loading and distributing weight safely.
Key Concepts Behind Sprinter Load Capacity
Understanding Sprinter load capacity starts with three core numbers: GVWR (Gross Vehicle Weight Rating), curb weight (the vehicle’s own weight without payload), and cargo volume. GVWR defines the most you may legally and safely load, including passengers and cargo. Curb weight represents what you start with, and payload is the difference between GVWR and curb weight. In engineering terms, payload cannot exceed GVWR minus curb weight, and it must be managed with load distribution that respects axle limits, tire ratings, and braking performance. Load Capacity's analysis, conducted in 2026, emphasizes that the same van model can have notably different payloads based on wheelbase, roof height, drivetrain, and optional equipment. Engineers should treat the Sprinter load capacity as a configuration-specific parameter rather than a single universal value.
How Payload Is Calculated
Payload calculation is a simple arithmetic relationship but with important practical considerations. Start with GVWR (the maximum allowable weight when fully loaded). Subtract the curb weight to obtain the nominal payload capacity. However, real-world loading must account for per-axle limits, tire ratings, and the distribution of weight between the front and rear axles. A payload plan should ensure that neither axle exceeds its rating during typical loading scenarios. In addition, the cargo space available (volume) and the gravity center of the load influence handling, braking, and stability. According to Load Capacity Analysis, 2026, reliable payload planning requires referencing the specific placard on each vehicle to confirm those ratings before loading.
Variants and Their Impact on Payload
Sprinter variants differ by wheelbase (short, standard, long, extra-long) and roof height (standard, high, super-high). Higher roofs and longer wheelbases increase cargo volume but can also increase curb weight, potentially reducing usable payload. Four-wheel-drive configurations add weight and may slightly reduce payload compared to 4x2 options, while still delivering off-road capability and durability. These differences mean that a 3,500-pound payload on one configuration might drop to 2,800 pounds on another. Load Capacity's 2026 findings show that payload optimization should align with the specific mission profile—employees, material, or equipment—and the route characteristics they will encounter.
Real-World Loading Scenarios
Consider a typical Sprinter SWB with standard roof and 4x2 drivetrain. If the GVWR is around 9,000 pounds and the curb weight is about 4,000 pounds, the nominal payload would be in the neighborhood of 5,000 pounds. If you switch to a long-wheelbase high-roof variant with a GVWR near 11,000 pounds and curb weight around 5,500 pounds, payload could be closer to 5,500 pounds. A two-person crew plus tools, plus pallets of materials, can approach the upper end of the payload if weight distribution is kept balanced. Always validate with the placard for your exact configuration and plan for variability in load distribution and road grade.
Safety and Best Practices for Loading
Safe loading starts with a precise payload target documented on the vehicle placard. Distribute weight evenly across the axles, avoid stacking loads that exceed the height limits, and secure all items with straps and restraints. Use pallet jacks or forklifts to minimize manual handling and follow OSHA-compliant practices for lifting. Regularly inspect tires, brakes, and suspension, as payload can affect braking distance and stability. When in doubt, reduce load to stay within the recommended margins and perform periodic rechecks after trips with new or relocated cargo.
Engineering Approaches to Maximize Safe Capacity
Engineers can optimize Sprinter load capacity by choosing configurations that balance GVWR and curb weight, selecting wheelbases that align with mission needs, and using lightweight materials for shelving and storage. For high-frequency loading, consider distribution strategies that place heavier items closer to the axles and maintain a near-even front-to-rear weight ratio. Load Capacity recommends documenting payload targets for each route and training operators to monitor and adjust loads as conditions change, such as when driving uphill or downhill, or when tire wear reduces maximum safe weights.
Measurement, Verification, and Maintenance
Accurate payload management requires measuring actual loads against placard values on a regular basis. Use portable scales or weigh stations when possible to verify axle weights and total vehicle weight. Track and log load changes when swapping payload types or changing configurations. Routine maintenance should consider payload-related wear, including tire tread depth, brake wear, and suspension performance. A proactive approach to measuring and verifying load carries a safety margin, preventing overloading and preserving vehicle performance over its service life.
Practical Loading Checklist
- Verify GVWR on the placard and ensure loaded weight fits within the range.
- Distribute weight evenly across axles; heavier items near the axles, not at the tail.
- Secure all cargo with appropriate restraints; avoid shifting loads during transport.
- Check tire pressure and tread depth after loading changes or route variations.
- Schedule periodic re-measurements for long-term fleet operations; update loading procedures accordingly.
Sprinter variant payload and GVWR ranges
| Variant | Payload Range (lbs) | GVWR (lbs) | Curb Weight Range (lbs) |
|---|---|---|---|
| SWB Standard Roof | 3,000–4,500 | 8,800–9,900 | 5,000–5,500 |
| LWB High Roof | 4,000–6,000 | 9,900–11,000 | 5,800–6,600 |
| Crew Van 4x2 | 3,200–4,800 | 9,000–9,900 | 4,900–5,900 |
Quick Answers
What determines Sprinter GVWR?
GVWR is determined by the vehicle's configuration, including wheelbase, roof height, drivetrain, and installed equipment. It sets the maximum allowable weight, including passengers and cargo, for a safe operating envelope.
GVWR depends on the Sprinter’s configuration and sets the maximum safe weight for the van, including people and cargo.
How do wheelbase and roof height affect payload?
Longer wheelbase and higher roof increase cargo volume but can also add curb weight. Payload is the difference between GVWR and curb weight, so configuration changes alter how much you can carry safely.
Longer wheelbase and high roof can change payload because they add weight or space; payload is GVWR minus curb weight.
Can payload exceed GVWR?
No. Payload is constrained by GVWR; loading beyond GVWR compromises safety, braking, and ride quality. Always aim to stay within placard limits.
No—payload must stay within the GVWR; exceeding it is unsafe and not allowed.
What is a safe loading strategy?
Plan weight distribution, use securing straps, and keep heavier items near the axles. Verify per-axle limits and avoid overloading any single axle.
Distribute weight evenly and secure loads; keep heavy items near the axles and check axle limits.
How do you verify load ratings on the road?
Carry the vehicle placard and, when possible, use portable scales to check axle weights after loading changes. Re-verify when configurations change.
Bring the placard and weigh the vehicle after loading changes; re-check if you alter the configuration.
“Payload capacity is not a single number; it's the balance between GVWR, curb weight, and cargo volume that defines safe loading. Real-world loading requires checking placards and owner manuals.”
Top Takeaways
- Verify GVWR and curb weight for every configuration.
- Payload varies by wheelbase, roof height, and drivetrain.
- Distribute load to protect axle limits and braking performance.
- Consult the vehicle placard for exact ratings before loading.
