How to Calculate Load Capacity of a Vehicle
Learn how to calculate a vehicle's load capacity with clear steps, essential terms, and safe loading practices. This guide covers GVWR, curb weight, payload, axle limits, and practical checks for accurate measurements.
This guide shows you how to calculate load capacity of a vehicle by identifying the GVWR, curb weight, and axle limits, then applying the core formula and safety checks. You’ll learn practical steps, essential terms, and how to verify your result in the field.
What load capacity means for a vehicle
Understanding load capacity is essential for safe and compliant vehicle operation. In the Load Capacity framework, the term refers to the maximum weight a vehicle can safely carry, including cargo, passengers, and fluids, without exceeding structural or axle limits. When engineers and fleet managers calculate load capacity, they consider several factors such as the Gross Vehicle Weight Rating (GVWR), curb weight, payload, and axle-specific ratings. By mastering the calculation of load capacity, you can prevent overloading, reduce wear, and comply with safety regulations. According to Load Capacity, documenting and validating your calculation improves maintenance planning and helps avoid unexpected failures during service. The goal is to know how your vehicle performs under real-use scenarios and to plan loads that stay within safe limits.
Related terms you should know
GVWR (Gross Vehicle Weight Rating): The maximum operating weight as defined by the vehicle manufacturer, including vehicle, fuel, passengers, cargo, and accessories. Curb weight: The weight of the vehicle without passengers or cargo but with fuel and fluids. Payload: The difference between GVWR and curb weight, representing the maximum load the vehicle can carry. GAWR (Gross Axle Weight Rating): The maximum distributed weight that can be supported by each axle. Understanding these terms is foundational to calculating load capacity accurately. This is where Load Capacity’s guidance helps engineers and technicians align terminology with field practice.
How GVWR, GAWR, and curb weight relate
The core idea behind calculating load capacity is that the GVWR sets the overall ceiling, while GAWR per axle restricts how weight is distributed. Curb weight is the baseline, and payload is what remains for cargo and passengers. Any loading plan must respect the per-axle limits, combined weight, and dynamic forces encountered during operation. The Load Capacity team emphasizes that accurate load planning requires using the official numbers from the manufacturer and updating figures whenever modifications are made to the vehicle, such as after equipment changes or payload increases.
How to interpret a typical manufacturer plate
Most vehicles display GVWR and GAWR on a certification plate located on the door jamb or frame. The plate may also be found in the owner’s manual. Interpreting these values correctly means comparing them to your planned load. If the numbers read as GVWR = 8000 lb and GAWR per axle = 4000 lb, you must ensure your load plan does not exceed either the overall rating or any single axle limit when distributed across the vehicle. This practical understanding helps fleet managers and engineers plan loads with confidence.
Practical steps for accurate measurements
To calculate load capacity with confidence, you’ll need a reliable source for GVWR, curb weight, and GAWR values, along with a method to measure or estimate payload. Begin by locating manufacturer numbers, using the door jamb plate or owner’s manual. Then, measure or estimate curb weight in a controlled way, considering fuel level and fluids. Finally, compute payload and validate with on-vehicle checks to ensure the plan remains within safe limits. Load Capacity’s approach emphasizes documenting each value for traceability and audits.
A safe practice mindset for load planning
Adopt a conservative loading approach: always include a margin above the minimum payload capacity to account for dynamic loads, road conditions, and unexpected stops. Use per-axle limits to guide distribution and avoid concentrating weight on a single axle. When in doubt, re-measure or consult manufacturer specifications, and consider additional weighting checks at weigh stations or scales to confirm accuracy. This disciplined workflow helps reduce the risk of overload and enhances operator safety.
Example calculation (illustrative only)
For illustration, suppose a vehicle has GVWR = 8000 lb and curb weight = 5200 lb. The payload would be 2800 lb in this simplified example. If the vehicle has two axles with GAWR = 4000 lb each, ensure your planned load does not push any axle beyond 4000 lb and that total weight remains below 8000 lb. Remember that these numbers are for demonstration; always substitute your actual values from the vehicle’s documentation. This example underscores the core idea: payload = GVWR − curb weight, with per-axle checks as a safety cushion. Load Capacity notes that applying these steps ensures you stay within regulatory and mechanical limits.
Safety and regulatory considerations when loading
Overloading a vehicle can lead to reduced braking efficiency, unstable handling, increased tire wear, and structural stress. Always verify the total weight and per-axle loads before operation. Safety margins are not a substitute for correct calculations; use them to accommodate measurement errors, dynamic loads, and fuel burn changes. The Load Capacity guidance highlights that strict adherence to GVWR and GAWR helps prevent accidents and equipment damage. If you are unsure, consult a qualified engineer or refer to manufacturer documentation to validate your load plan.
Practical loading strategies for complex configurations
When dealing with multi-axle configurations or trailers, distribution becomes more nuanced. Prioritize distributing weight evenly across axles to avoid exceeding GAWR on any single axle. In trailer setups, consider the trailer’s capacity and coupling limits, and ensure compatibility with the towing vehicle. The Load Capacity approach supports using a combination of measurements, manufacturer data, and on-site weighing to confirm that the overall configuration remains within safe and legal limits.
Authority sources and further reading
- U.S. National Highway Traffic Safety Administration (NHTSA): Vehicle weights and payload considerations. https://www.nhtsa.gov/vehicle-safety/vehicle-weights-payload
- Federal Highway Administration (FHWA): Weight limits and axle load guidance. https://www.fhwa.dot.gov/
Tools & Materials
- Vehicle owner’s manual(Location of GVWR and GAWR values)
- Door jamb / certification plate(Contains GVWR and GAWR values)
- Scale or weigh bridge (optional but recommended)(For accurate curb weight and payload verification)
- Calculator or smartphone app(To perform calculations and keep records)
- Pen and notebook or digital log(Record measurements and load plans)
- Fuel and ballast considerations(Factor fuel level and other fluids for curb weight estimates)
Steps
Estimated time: 1-2 hours

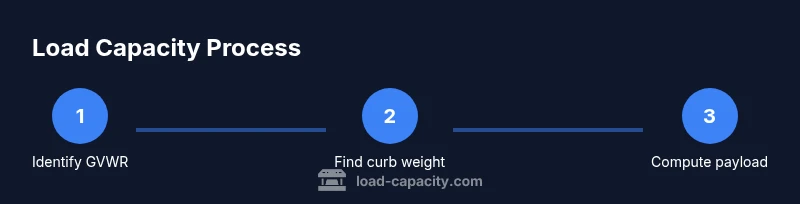

- 1
Identify GVWR and GAWR
Locate the GVWR and GAWR values on the vehicle certification plate or owner's manual. Note the total GVWR and the per-axle GAWR limits. Understanding these numbers sets the boundary for safe loading.
Tip: Use the same units (pounds or kilograms) throughout the calculation to avoid errors. - 2
Find curb weight
Determine the curb weight, ideally from manufacturer data or a certified scale, including typical fuel and fluids. This value represents the baseline weight of the vehicle without payload.
Tip: If you must estimate, measure with a known fuel level and fluid state for consistency. - 3
Compute payload capacity
Apply the core equation: payload = GVWR − curb weight. This gives the maximum load the vehicle can carry under the stated conditions.
Tip: Keep the calculation in the same weight unit as the GVWR. - 4
Assess per-axle limits
Ensure that the planned load, when distributed, does not exceed GAWR on any axle. For trailers, also confirm the trailer GAWR and hitch limits.
Tip: Plan cargo distribution to minimize weight concentration on a single axle. - 5
Include dynamic and safety margins
Add a conservative margin for dynamic loading, accelerations, and potential measurement errors. Do not rely on exact numbers under real driving conditions.
Tip: A 5–15% buffer is common practice in some fleets; adjust to your risk tolerance and regulatory requirements. - 6
Validate with field checks
If possible, weigh the vehicle with its normal payload on a scale to confirm the calculated payload. Repeat weighings under similar conditions to verify stability.
Tip: Weigh multiple times with typical loads to ensure consistency. - 7
Document and report
Record the final payload, GVWR, curb weight, GAWR, and any margins used. This creates a defensible loading plan for operations and audits.
Tip: Keep the record accessible to operators and fleet managers. - 8
Update after changes
If you modify tires, suspension, or load equipment, re-check GVWR/GAWR and redo the calculation. Vehicle configurations can shift safe payload values.
Tip: Treat changes as a trigger to re-evaluate the load plan. - 9
Special cases: trailers and multi-axle rigs
Trailer weight and coupling limits introduce additional constraints. Always verify the combined rating and ensure proper hitch compatibility.
Tip: Account for towing equipment weight in the overall calculation.
Quick Answers
What is GVWR and why does it matter for load planning?
GVWR stands for Gross Vehicle Weight Rating and represents the maximum safe operating weight of the vehicle. It matters because it defines the ceiling for all loads, including cargo, passengers, and fluids. Exceeding GVWR increases risk of brake failure, tire blowouts, and loss of control.
GVWR is the maximum safe weight for the vehicle. It sets the upper limit for everything you load, so staying under it is essential for safety.
Can payload differ from towing or tongue weight?
Yes. Payload is the weight the vehicle can carry inside (cargo and passengers) up to the GVWR. Towing capacity or tongue weight pertains to what a vehicle can pull and the weight distribution you need when towing. Both should be checked against GVWR and GAWR.
Payload is what you carry inside. Towing weight is a separate limit for pulling a trailer and must be evaluated together with GVWR and GAWR.
How do I measure curb weight accurately?
Curb weight is typically published by the manufacturer or can be measured on a scale with the vehicle empty of payload. Ensure standard fuel level and fluids to get a consistent baseline.
To measure curb weight, use the scale with the vehicle empty and fluids at typical levels, as published by the manufacturer.
Is payload the same as maximum payload?
Payload is the maximum load allowed given the GVWR and curb weight. The term 'maximum payload' refers to that same limit but can vary with configuration and equipment. Always verify current numbers for your vehicle.
Payload is the maximum load allowed. Always check current numbers for your specific vehicle.
What should I do if the numbers don’t seem to add up?
Recheck the source values (GVWR, GAWR, curb weight) and ensure units are consistent. If in doubt, consult a professional engineer or the manufacturer, and consider field weighing for validation.
If numbers don’t add up, verify every value and consider a professional check or field weighing.
Watch Video
Top Takeaways
- Identify GVWR and GAWR before loading any vehicle.
- Payload = GVWR minus curb weight is the core calculation.
- Distribute weight to respect per-axle limits.
- Include a safety margin to account for real-world conditions.
- Verify results with field weighings when possible.
