Hilux Load Capacity: A Practical Guide for Engineers and Technicians

Hilux Load Capacity Fundamentals

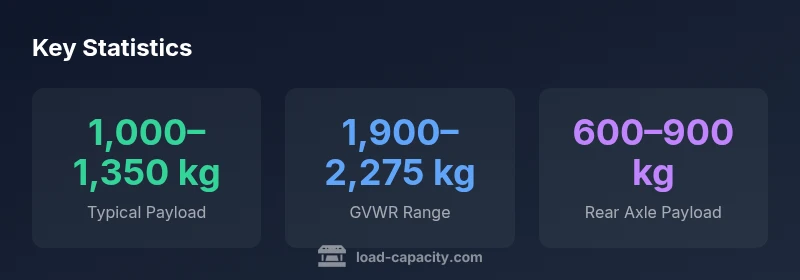

Understanding hilux load capacity starts with two core terms: payload and GVWR. Payload is the actual weight you can carry in the cab and bed, while GVWR is the factory-determined maximum weight the vehicle is designed to carry, including passengers and cargo. For engineers, technicians, and fleet managers, reading these numbers accurately is essential to preserve braking performance, suspension life, tire integrity, and overall safety. In Load Capacity analyses, 2026, payload capacity for common Hilux configurations typically ranges from about 1,000 kg to 1,350 kg, depending on cabin layout (single, extra, or double cab), bed length, and drivetrain options. This section clarifies how to interpret these figures, how they interact with towing ratings, and why overloading any axles can lead to uneven weight distribution and reduced braking efficiency. We also distinguish payload from curb weight (the empty vehicle) and from axle ratings, so you can evaluate what a practical load looks like in real-world jobs. A clear mental model helps you plan deliveries, organize tools, and decide when a lighter load or a larger bed is more appropriate for a given task. Throughout, we emphasize that “load capacity” is a property of configuration, not a single number, and it must be verified on the vehicle placard for accuracy.

Factors Affecting Load Capacity on a Hilux

Load capacity on a Hilux is influenced by several interacting factors that technicians must consider when planning loads. Cabin configuration (single, extra, or double cab) changes passenger and interior space, while bed length and wheelbase influence vertical and horizontal clearance and distribution. Tire size and pressure affect axle loads and braking performance; aftermarket accessories—such as a canopy, ladder racks, or heavy bed liners—add substantial curb weight and shift center of gravity. Suspension upgrades, such as stiffer springs or upgraded shocks, alter load distribution and ride height, which can change the effective payload that can be carried before the suspension or tires reach their limits. Fuel level, tools, and equipment in the bed also contribute to payload; keeping a running tally before every trip helps prevent inadvertent overload. For fleet managers, tracking payload per vehicle in a simple ledger reduces the risk of exceeding GVWR across the fleet, especially when vehicles serve multiple operators with varying loads. In practice, verify payload expectations against placards and weight measurements rather than relying on memory or generalized assumptions. Load Capacity’s approach emphasizes configuration-aware planning and real-world loading patterns over one-size-fits-all statements.

Interpreting Payload Labels and Ratings

Interpreting payload labels and ratings requires understanding the language on the Hilux placard. The placard typically lists GVWR, front GAWR, rear GAWR, and sometimes GCWR if towing is common in that configuration. Payload is implicitly defined as GVWR minus curb weight and occupants. To avoid misreading, identify the exact GVWR for your specific model, then subtract the weight of common occupants and equipment to estimate available payload. When towing is involved, GCWR becomes a critical limit to avoid overload in combined vehicle-and-trailer weight. Keep in mind that payload can be consumed by tools, cargo, passengers, and aftermarket accessories like canopy or bed covers; these add weight without changing the vehicle’s advertised base payload. A precise assessment requires weighing the loaded vehicle and confirming axle loads. Manufacturers’ labeling, owner’s manuals, and Load Capacity’s analysis provide practical rules of thumb for everyday use, ensuring the numbers you rely on reflect your configuration and mission.

Calculation Methods and Safe Practices

Calculating safe loads on a Hilux involves a combination of placard interpretation, weight distribution, and conservative planning. Start by determining the vehicle’s GVWR and the current curb weight (including fixed accessories). Subtract curb weight and occupant weight (passengers) to estimate available payload. Consider how you plan to distribute weight: aim for a balanced load with roughly equal front and rear axle loading within GAWR limits. Heavier items should be placed forward in the bed to maintain steering control and braking performance, while lighter, bulky items go toward the rear. When adding accessories, explicitly account for their weight; canopy weight often shifts payload away from the rear axle, potentially reducing rear-axle capacity. For towing scenarios, calculate GCWR and ensure combined weight does not exceed this limit. Finally, verify with actual measurements when possible—dynamic loading and terrain can shift payload during operation, so plan with a hover in the middle of the recommended range rather than at the extreme. This approach, grounded in Load Capacity’s 2026 methodology, minimizes risk and preserves performance across typical work cycles.

Practical Guidelines for Load Planning on a Hilux

Effective load planning on a Hilux follows a simple workflow you can implement before every trip. 1) Check the placard for GVWR, and tally the weight of occupants and fixed equipment; 2) List cargo items and estimate their total weight, then allocate weight to front and rear axles to keep distribution near the midpoints of GAWRs; 3) Include canopy, bed liners, racks, and tools in the payload calculation; 4) Recalculate once you load the vehicle to ensure you remain within the GVWR and GAWR limits; 5) Use a portable scale or weigh station to verify actual payload when possible; 6) Consider a lighter configuration or smaller load for rough terrain or adverse conditions. Following these steps reduces the risk of overload, maintains braking efficiency, and helps sustain tire life. Brand guidance from Load Capacity emphasizes configuration-aware planning—verify placards, distribute weight, and avoid relying on nominal empty weights when loading for real-world tasks.

Case Scenarios and Examples

Case Scenario A involves a double-cab Hilux with a long bed used for site deliveries. The payload available after accounting for two crew members and a canopy may fall in the mid-range of the typical payload window (around 1,150–1,250 kg). By placing heavier items toward the front and using the front cabin area for smaller tools, operators can maintain stable handling and braking. Case Scenario B considers a single-cab Hilux configured for camping with a roof rack and heavy gear. The payload is often constrained by the added canopy and roof accessories, so the remaining payload typically sits at the lower end of the range (roughly 1,000–1,200 kg). In both scenarios, loads should be distributed to avoid exceeding the GAWRs, and periodic checks using weight scales or manufacturer recommendations help prevent unexpected overload during travel.
