How to Determine the Load Capacity of a Utility Trailer
A comprehensive, step-by-step guide to determine a utility trailer's load capacity, including GVWR, tare weight, tongue weight, and GCWR. Learn how to measure, calculate, and verify safe payload limits for engineers, technicians, and fleet managers.
By definition, the load capacity of a utility trailer is the maximum payload it can safely carry, determined as the trailer's GVWR minus its tare weight, with additional checks for axle, hitch, tire ratings, and vehicle towing limits. This guide provides a practical, step-by-step approach to identify and validate those values on any trailer.
Understanding load capacity concepts for utility trailers
Load capacity defines the maximum weight a utility trailer can safely carry. For engineers and fleet managers, the distinction between payload capacity (the cargo the trailer can transport) and towing limits on the tow vehicle is critical. According to Load Capacity, these numbers originate from the GVWR (Gross Vehicle Weight Rating) plate on the trailer and the tare weight when empty. The payload capacity is conceptually the difference between GVWR and tare weight, but real-world use also depends on tongue weight, axle capacity, tire load ratings, and the towing system (GCWR for combined vehicle-plus-trailer limits). Grasping these fundamentals helps ensure safety, keep components within design limits, and maintain compliance with regulatory standards. This foundational understanding sets the stage for precise calculations and safer transport operations across construction sites, landscaping jobs, or service fleets. It also helps align with best practices used by engineers and technicians who rely on Load Capacity guidance for critical decisions.
Data you need before calculating capacity
Before running numbers, collect data from multiple sources to avoid guesswork. The trailer GVWR plate should list the maximum permissible trailer weight, including cargo. You’ll also need the tare (empty) weight of the trailer, the axle ratings, the tongue/drawbar weight, and the vehicle’s GCWR (gross combination weight rating) and hitch rating. If any datum is missing, you should obtain it from the manufacturer’s manual, the trailer manufacturer’s data sheet, or a certified weighing facility. Because these values interact, ensure you’re cross-checking them for consistency and safety. As you assemble data, maintain a clear record for future audits and inspections, which is especially important for fleets and student projects alike.
How to calculate the trailer's payload capacity
The primary calculation for trailer payload capacity is straightforward: Payload capacity = GVWR − tare weight. This yields the maximum cargo the trailer can carry when empty and ready to load, without exceeding the trailer’s own structural limits. To ensure compatibility with the tow vehicle, also compare the GCWR (vehicle plus trailer) to your planned loads. If your load is substantial, the tongue weight (roughly 10–15% of the payload) must be considered to avoid unloading or handling problems at the hitch. In practice, you’ll verify the GVWR plate, measure tare weight, and then compute a safe payload range that respects both the trailer’s and the towing vehicle’s ratings. Always round down to maintain a safety margin.
Cross-checking with vehicle towing limits
The towing system has its own limits that may cap safe payload even if the trailer plate allows more. Review the tow vehicle’s GCWR and the hitch’s rating, then confirm the sum of the trailer’s tare weight and the planned cargo weight does not exceed the GCWR. Also verify that tongue weight remains within the hitch’s recommended range. If there is a mismatch, reduce the payload accordingly or adjust the load distribution. This cross-check helps prevent axle overload, braking inefficiencies, or tire failure, and it aligns with prudent Load Capacity practices for responsible trailer operation.
Weighing and recording tare weight
Accurate tare weight is essential for a precise payload calculation. Weigh the empty trailer on a certified scale or weigh station to determine tare weight. If access to a scale is limited, consult the manufacturer’s data or use an industry-standard tare estimate with a conservative safety margin. Document the tare weight, the GVWR, and the plate location. A clear, timestamped record will support future audits, maintenance planning, and load planning for job sites.
Verifying tire, axle, and hitch ratings
Tire load ratings, axle capacities, and hitch classes all constrain the usable load. Inspect tire sidewalls for load index and speed rating, confirm axle GAWR ratings, and match the hitch to the vehicle’s TM or Class specification. If any component is undersized for the planned payload, upgrade the corresponding parts before loading. This verification helps prevent failures that could lead to accidents, downtime, or costly repairs, and it reflects best practices in Load Capacity’s guidance for safe trailer use.
Safety margins and dynamic loading
Real-world loads are rarely perfectly even or perfectly still. Dynamic factors—acceleration, braking, cornering, and road conditions—shift loads and can temporarily exceed static ratings. Build a conservative safety margin (commonly 10–15%) into your payload planning and avoid operating at the upper limits. This reduces the risk of tire blowouts, frame stress, and axle overheating. Always recalculate after changing loads or equipment, and document the updated figures for future reference.
Practical examples and common scenarios
Consider a trailer with a GVWR of 7,000 pounds and a tare weight of 2,000 pounds. Payload capacity would be 5,000 pounds. If the tow vehicle and hitch bring GCWR into play at 9,000 pounds, ensure combined weight does not exceed that limit and that tongue weight remains within the hitch’s range. In another scenario, a lighter trailer with a higher GVWR may still require careful load distribution across axles and ensuring tires match the payload. These practical cases illustrate how the core concepts translate to everyday use on job sites and for DIY projects.
Documentation, maintenance, and best practices
Keep a living log of GVWR, tare weight, payload, GCWR, tongue weight, and component ratings. Re-check values after modifications, after heavy use, or when replacing tires, wheels, or the hitch. Regular audits support regulatory compliance and ensure ongoing safety for your team. The Load Capacity team recommends maintaining organized records, performing periodic weigh-ins, and validating payloads before each deployment to sustain safety and reliability.
Tools & Materials
- Trailer GVWR plate(Locate on the trailer tongue or frame; capture both GVWR and GAWR values if listed.)
- Certified scale or weigh station access(Weigh empty trailer (tare) and loaded trailer for accurate payload calculations.)
- Vehicle GCWR and hitch rating documentation(Obtain from the vehicle owner’s manual or manufacturer data sheets.)
- Tire load rating information(Check sidewall load index and speed rating for each tire on the trailer.)
- Pen, notepad, and calculator(Record GVWR, tare, payload, and GCWR values; perform quick checks during loading.)

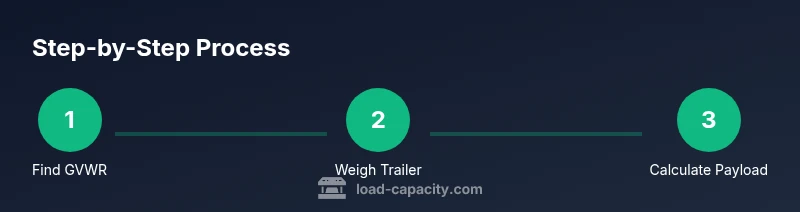

Steps
Estimated time: 1-2 hours
- 1
Find the GVWR plate
Locate the trailer's GVWR plate on the tongue or near the coupler. Copy GVWR and GAWR values and note where the data is located for future reference.
Tip: Take a high-resolution photo of the plate for your records. - 2
Weigh the empty trailer (tare weight)
Weigh the trailer without cargo using a certified scale to determine tare weight. Record the exact value and the scale used.
Tip: If empty weighing isn’t possible, use manufacturer data as a conservative baseline and annotate the assumption. - 3
Determine your planned payload
List cargo items and estimate their total weight. Verify if the items can be distributed across axles to balance the load.
Tip: Weigh heavy items individually when feasible to improve accuracy. - 4
Calculate trailer payload capacity
Compute payload capacity as GVWR minus tare weight. This is the maximum cargo weight the trailer can carry at once.
Tip: Round down to a safe margin; don’t rely on exact saturation of the limit. - 5
Cross-check GCWR and hitch rating
Ensure the combined weight of vehicle, trailer, and cargo does not exceed GCWR and that tongue weight is within hitch limits.
Tip: Distribute weight to keep tongue weight near the recommended range (often 10–15%). - 6
Verify tire and axle ratings
Confirm tires, wheels, and axles are rated for the expected load. Inflate tires to the recommended pressure for the load.
Tip: Under-inflated tires are a leading cause of tire failure under load. - 7
Apply a safety margin for dynamic loads
Plan to carry less than the maximum by 10–15% to account for road dynamics and uneven loads.
Tip: This reduces risk during braking, cornering, and rough terrain. - 8
Test with a controlled load
Load a representative weight and verify scales at different points (axles, tongue) to ensure readings align with calculations.
Tip: Document test results and compare against planned payload. - 9
Document and maintain records
Store all data in a central log and re-measure after changes in equipment or loads. Review annually or after major repairs.
Tip: Keep records organized for audits and future trips.
Quick Answers
What is payload capacity?
Payload capacity is the maximum weight a trailer can carry, calculated as GVWR minus tare weight. It considers the trailer alone; always cross-check with towing limits for the vehicle.
Payload capacity is GVWR minus tare weight. Always verify against the vehicle's limits before loading.
How do I find the GVWR plate?
The GVWR plate is usually on the trailer tongue or near the coupler. It lists GVWR and GAWR values, which you need for calculations.
Look on the trailer tongue or near the coupler for the GVWR plate; it shows the key weight ratings.
Can I overload my trailer if I balance the load?
No. Overloading any component can exceed axle, tire, or hitch ratings and compromise safety, even if the overall payload appears balanced.
No, you can't overload by balancing; every component has a limit that must not be exceeded.
Do I need professional weighing to determine load capacity?
Not always, but it’s recommended when precise payload calculations are critical, such as for large fleets or high-risk loads. Use certified scales when possible.
Professional weighing helps ensure accuracy, especially for critical operations; use certified scales when you can.
What about tongue weight?
Tongue weight is the downward force at the hitch and should fall within the hitch’s recommended range, typically about 10–15% of the total load.
Tongue weight is the load at the hitch; aim for roughly 10 to 15 percent of the total load.
How often should I recheck load capacity?
Recheck whenever the trailer, hitch, or tires change, or after major repairs. Regular checks prevent unexpected failures.
Recheck whenever you change equipment or loads; regular checks prevent surprises.
Watch Video
Top Takeaways
- Identify GVWR and tare weight from the plate and scale data.
- Payload = GVWR − tare; verify GCWR and tongue weight as applicable.
- Check tire, axle, and hitch ratings before loading.
- Apply a safety margin for dynamic loads and maintain records.
- Document results and update them after changes.
