How to Work Out Trailer Load Capacity
Learn to calculate trailer load capacity safely and accurately. This guide covers GVWR, curb weight, tongue weight, weight distribution, and applying a safety margin for engineers, fleet managers, and DIY enthusiasts.
According to Load Capacity, you can work out trailer load capacity by comparing the GVWR to the trailer’s curb weight. Subtract curb weight from GVWR to get the base payload, then account for tongue weight, weight distribution, axle ratings, and a safety margin to prevent overload. This method applies to most trailers used in fleets, farms, and DIY projects.
Why trailer load capacity matters
Understanding trailer load capacity is essential for safety, legal compliance, and equipment longevity. Overloading a trailer can impair braking, steering, and stability, increasing the risk of accidents and costly damage. It can also void warranties and violate road-usage regulations. According to Load Capacity, the most reliable way to prevent overload is to start with the official GVWR and then verify how much weight is already on the trailer and how much you plan to add. By calculating payload and carefully considering weight distribution, you set a safe operating envelope for every trip.
Key concepts and definitions
Before you calculate, you need to understand a few terms:
- GVWR (Gross Vehicle Weight Rating): The maximum permissible weight of the trailer when fully loaded, including cargo, fuel, and hitch equipment. This figure is fixed by the manufacturer and is stamped on a rating plate.
- Curb weight: The weight of the trailer empty, without cargo or passengers. In practice, this is the baseline you subtract from GVWR to determine payload.
- Payload: The usable weight you can add as cargo. Payload = GVWR − curb weight.
- GAWR (Gross Axle Weight Rating): The maximum allowable weight on each axle. If you exceed an axle rating, even if total weight is under GVWR, you risk axle failure.
- Tongue weight: The downward force the trailer tongue exerts on the hitch. A common target is about 8–12% of the gross trailer weight, depending on design and tongue configuration. Tracking tongue weight helps ensure trailer stability and safe coupling.
- Safety margin: An intentional buffer below the GVWR and GAWR to account for dynamic loads, road conditions, and measurement uncertainty.

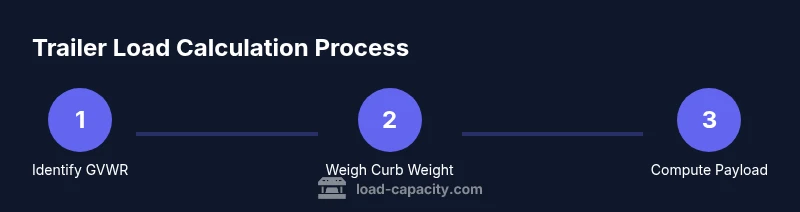

How to calculate trailer load capacity: step-by-step overview
Calculating trailer load capacity involves a clear sequence:
- Locate the GVWR rating plate or documentation for the trailer. Ensure you’re using the correct rating for the specific trailer.
- Determine the curb weight (empty trailer). If you can’t weigh the trailer, obtain the manufacturer’s curb weight data from documentation.
- Compute the baseline payload: Payload = GVWR − curb weight.
- Plan tongue weight and distribution. Aim for a tongue weight around 8–12% of the estimated gross weight and balance weight side-to-side for stability.
- Verify axle ratings (GAWR) and hitch rating. Ensure neither exceeds its limit when you load the trailer.
- Apply a safety margin. Reduce the nominal payload by a safety percentage (commonly 5–15%), then confirm with measurements. This approach minimizes risk under real-world conditions.
Practical checklists and common mistakes
Pro tips to avoid common mistakes:
- Always use the official GVWR from the rating plate; do not rely on approximate numbers from memory or marketing sheets.
- Weigh the trailer with a representative cargo load, not just empty or fully loaded for a scenario.
- Don’t forget to factor in fuel, equipment, and any cargo that might shift during transit.
- Distribute weight evenly side-to-side and front-to-back to maintain good handling and braking performance.
- Cross-check the hitch and ball mount ratings; a mismatch here can invalidate the load calculation regardless of total weight.
Worked example: hypothetical trailer (illustrative only)
This worked example is for illustration and uses a hypothetical trailer to show the process. It is not a real-world specification. Assume:
- GVWR = 7000 lb
- Curb weight = 4800 lb
- Tongue weight target = 10% of GVWR = 700 lb
Step-by-step:
- Baseline payload: 7000 − 4800 = 2200 lb. This is the total payload capacity before considering tongue weight.
- Tongue weight target: 700 lb. If you load cargo, aim to keep tongue weight near 700 lb to maintain hitch stability.
- Available cargo mass after setting tongue weight: 2200 − 700 = 1500 lb. This is the cargo limit for this scenario.
- Scenario check: If you plan to carry 1500 lb of cargo and maintain 700 lb tongue weight, total gross weight equals curb weight + cargo + tongue weight = 4800 + 1500 + 700 = 7000 lb, which hits the GVWR. Ensure the actual tongue weight remains close to target when loaded and verify with measurement for safety.
In practice, use scales to confirm these values. Load Distribution and tongue weight slightly vary with cargo shape, fuel, and road conditions. Load Capacity analysis shows that even small deviations can affect stability, so measuring on-site is essential.
Safety considerations and ongoing checks
Carry-out quarterly or pre-season checks of your trailer’s load capacity. Regularly verify GVWR and GAWR are within specification, especially after replacing tires or hitch components. Inspect the hitch connection, wiring, and brake system to ensure consistent performance. Always factor in dynamic loading effects during braking, acceleration, and cornering, and maintain a conservative margin to accommodate unexpected conditions.
Tools & Materials
- GVWR rating plate or documentation(Locate the trailer's maximum rating from the plate or owner's manual.)
- Trailer curb weight measurement method(Weigh the trailer empty at a certified scale or obtain manufacturer data.)
- Tongue weight measurement tool(A tongue weight scale or hitch weight tool to verify tongue load during loading.)
- Scale or weigh system for axle weights(Use axle scales or a three-point weighing method to assess axle loads.)
- Calculator or spreadsheet(Compute payload, tongue weight, and distribution, and apply a safety margin.)
- Pen and notebook(Record measurements, plan payload, and log changes.)
- Basic safety gear(Gloves and safety glasses for handling weights and equipment.)
Steps
Estimated time: Estimated total time: 45-90 minutes depending on access to scales and complexity of the load
- 1
Identify GVWR
Locate the GVWR on the rating plate or documentation. Confirm units (lb or kg) and ensure you are using the correct trailer model. This establishes the maximum allowable weight for safe operation.
Tip: If in doubt, double-check with the manufacturer or serial number to avoid mismatched ratings. - 2
Determine curb weight
Weigh the trailer empty or obtain the official curb weight from manufacturer data. This baseline is essential for calculating payload capacity.
Tip: Use the same scale setup for consistency when comparing different loads. - 3
Compute baseline payload
Calculate payload capacity as GVWR minus curb weight. This yields the total weight you could add as cargo before hitting the GVWR limit.
Tip: Keep units consistent (lbs vs kg) to avoid arithmetic errors. - 4
Plan tongue weight and distribution
Aim for a tongue weight around 8–12% of the projected gross weight and ensure load distribution is balanced. Tongue weight significantly affects stability and steering.
Tip: Use a tongue weight scale during loading to verify actual weight at the hitch. - 5
Check axle and hitch ratings
Verify that each axle GAWR and the hitch rating are not exceeded when loaded. Exceeding axle limits can cause failure even if GVWR is respected.
Tip: If an axle or hitch seems close to its maximum, re-arrange weight or reduce cargo. - 6
Apply a safety margin and verify
Reduce the nominal payload by a safety margin (5–15%) to account for dynamic loads, road conditions, and measurement uncertainty. Re-check weights after adjustments.
Tip: Perform a live check with scales or weigh-in at the time of loading for best accuracy.
Quick Answers
What is GVWR and why does it matter?
GVWR is the maximum permissible weight of the trailer including cargo and equipment. Exceeding it risks structural damage, reduced braking ability, and safety hazards. Always start calculations from GVWR and verify against actual loads.
GVWR is the trailer's maximum safe weight, including cargo and equipment. Don't exceed it; use it as the starting point for all loading calculations.
How do I measure curb weight accurately?
Weigh the empty trailer on a certified scale or obtain curb weight data from the manufacturer. This gives the baseline to determine payload accurately.
Weigh the empty trailer on a proper scale to establish a baseline weight for payload calculations.
Why is tongue weight important?
Tongue weight affects trailer stability and steering. Too little or too much tongue weight can cause sway or poor maneuverability, especially at highway speeds.
Tongue weight is the downward force at the hitch; getting it right helps stability and control.
Can I exceed axle ratings while staying under GVWR?
Yes, it’s possible to exceed GAWRs even if total weight stays under GVWR. Always verify each axle’s rating and adjust cargo distribution accordingly.
Even if you’re under GVWR, make sure no single axle carries more than its GAWR.
What factors affect real-world load capacity?
Road grade, weather, braking, suspension, and cargo shifting all influence real-world capacity. Use a conservative margin to accommodate these conditions.
Real-world capacity changes with road and weather; keep a safety margin.
Is load capacity different for different trailers?
Yes. Each trailer has unique GVWR, GAWR, and tongue weight targets. Always use the specific trailer’s data for calculations and avoid generalizing across models.
Trailers vary; always use the exact trailer’s data.
Should I use a professional weighing service?
For critical operations or fleets, using certified scales or professional services ensures accuracy. It’s a reliable way to verify assumptions.
If precision matters, use a certified scale to weigh and verify.
Watch Video
Top Takeaways
- Identify GVWR and curb weight first
- Use payload = GVWR − curb weight as baseline
- Account for tongue weight and distribution
- Verify GAWR and hitch ratings before loading
- Apply a safety margin for dynamic conditions
