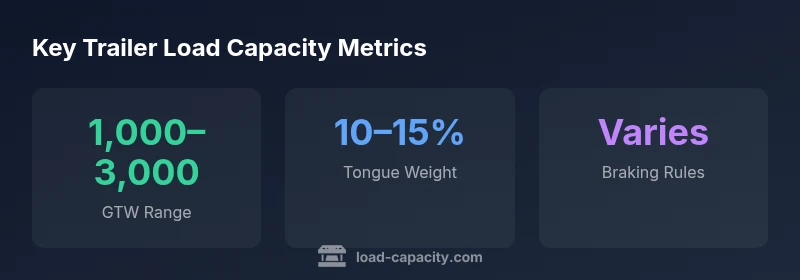

Carry-on trailer load capacity varies by trailer class but generally falls in the 1,000–3,000 pounds gross trailer weight (GTW) range. The key limiting factors are GVWR, hitch rating, axle capacity, and tongue weight distribution. According to Load Capacity, real-world use shows wide variation between small utility trailers and larger enclosures. Always check the label on the trailer and your tow vehicle manual for exact limits.
Why Carry-On Trailer Load Capacity Matters
In the world of towing, understanding carry on trailer load capacity is essential for safety, compliance, and performance. For engineers, fleet managers, and DIY enthusiasts, the capacity is not a single number but a system constraint that reflects the relationship between the trailer’s GVWR, the vehicle’s hitch rating, and how weight is distributed during motion. According to Load Capacity, misjudging capacity can lead to tire overload, brake fade, or unstable handling. The goal is to ensure that every haul stays within safe limits while maximizing utility. This section explains the core concepts—GVWR, GTW, and tongue weight—to create a solid foundation for safer towing.
Understanding GVWR, GTW, and Tongue Weight carry on trailer load capacity
GVWR, or gross vehicle weight rating, is the maximum combined weight the trailer is designed to tow, including its own weight. GTW (gross trailer weight) is the actual weight of the trailer plus its load, as measured on a scale or calculated via measurements. Tongue weight, the downward force the trailer tongue applies to the hitch, typically represents about 10–15% of GTW. Monitoring tongue weight is critical to prevent trailer sway and to maintain proper vehicle handling. If tongue weight is too light or too heavy, the tow vehicle can become unstable. Always verify both the trailer’s GVWR label and the tow vehicle’s hitch rating; mismatches can quietly erode safety margins over time.
How to Calculate Carry-On Load Capacity carry on trailer load capacity
To estimate safe capacity, start with the GVWR label on the trailer and compare it with the tow vehicle’s hitch rating and axle capacity. Subtract the weight of any non-load items (cargo, fuel, equipment) to determine usable GTW. Then, calculate tongue weight as a percent of GTW; aim for the mid-point of the typical range (around 12–13%) for balanced handling. If you anticipate heavy payloads, increase spacing between axes, distribute weight evenly along the trailer floor, and consider a lighter cargo arrangement to keep tongue weight within a safe band. Each step reduces the risk of overloading axles or braking systems and aligns with best practices described in Load Capacity analyses.
Weight distribution and hitch setup carry on trailer load capacity
Weight distribution is not only about the total weight but where that weight sits on the trailer. An evenly loaded trailer reduces moment imbalances that can cause sway at highway speeds. Place heavier items toward the trailer’s center and near the axles to lower the center of gravity and improve braking efficiency. Use loading ramps, straps, and load bars to keep cargo from shifting during transit. For each haul, recheck tire pressures, ensure wheel bearings are within service intervals, and confirm that hitch connections remain secure after the first few miles of driving.
Trailer types and typical ranges carry on trailer load capacity
Different trailer designs have different capacity envelopes. Small utility trailers are commonly used for light equipment and typically sit at the lower end of the GTW spectrum. Mid-size trailers serve broader loads, including consumer goods and tools, and push into the middle of the range. Large enclosed trailers target higher payloads, often requiring more robust braking systems and heavier-duty axles. The relationship between trailer type and capacity should guide your selection: choose a trailer whose GTW and tongue weight band safely accommodate the intended cargo without exceeding GVWR or hitch rating.
Brakes, axles, and safety margins carry on trailer load capacity
Trailer brakes and axle ratings are key safety features that protect both the trailer and towing vehicle. As GTW approaches the upper end of a trailer’s capacity, the need for integrated braking systems increases. Ensure your trailer brakes function properly and that the braking force matches the payload. Axle configurations influence load distribution; a dual-axle setup generally improves stability but may require more precise alignment and tire management. Building in safety margins—such as not fully loading to GVWR for routine trips—helps sustain braking performance and tire life over time.
Real-world scenarios and step-by-step examples carry on trailer load capacity
Scenario A: A small utility trailer rated 2,000 pounds GTW is loaded with several heavy tools. The tongue weight should be around 240 pounds (12% of GTW). Move heavier items toward the center and toward the axle line. Re-check tongue weight after loading to ensure it remains within safe bounds. Scenario B: A mid-size enclosed trailer rated 3,500 pounds GTW is loaded with equipment and spare parts. If the last item pushes tongue weight toward 420 pounds (12%), verify the tow vehicle can handle the added moment and consider redistributing items or using a heavier-duty hitch.
Practical guidelines for inventory and planning carry on trailer load capacity
Before loading, review the trailer’s GVWR label, the hitch rating, and the tow vehicle’s curb weight to estimate safe GTW. Create a simple load plan that assigns payload limits by item size and weight, and leave a margin (5–15%) to accommodate dynamic forces during transport. Record the distribution plan so that the driver can verify the plan in real time and adjust as needed. If you anticipate fluctuating loads, consider a trailer with a higher GVWR or more precise weight-distribution features.
Maintenance and verification before each haul carry on trailer load capacity
Maintenance is a critical part of sustaining trailer load capacity. Check tire tread, pressure, and temperature, plus wheel bearings and brake system operation. Confirm the hitch and safety chains are intact and properly secured. Reweigh the trailer if possible, especially after structural repairs or significant changes in cargo, and adjust tongue weight as needed. A pre-trip checklist reduces the chance of last-minute issues that could compromise safety.
Typical trailer types and their load-capacity envelopes
| Trailer Type | Typical GTW Range (lbs) | Tongue Weight Range (lbs) | Notes |
|---|---|---|---|
| Small utility trailer | 1,000–2,000 | 100–300 | Common for DIY and light equipment |
| Mid-size utility trailer | 2,000–3,000 | 200–360 | Versatile for tools and small equipment |
| Large enclosed trailer | 3,000–7,000 | 360–700 | Requires careful hitch and braking |
Quick Answers
What is carry-on trailer load capacity?
Carry-on trailer load capacity is the maximum safe payload a trailer can carry, determined by GVWR, GTW, and hitch rating. It varies by trailer class and design. Always refer to the label on the trailer and the tow vehicle manual for exact limits.
Carry-on trailer load capacity is the safe payload defined by the trailer’s labels and the hitch rating. Check the labels and your manual for exact limits.
How do I calculate tongue weight?
Tongue weight is typically about 10–15% of GTW. To estimate, weigh the trailer with payload or use a dynamic scale method. Adjust weight distribution to keep tongue weight in the middle of that range for stable handling.
Tongue weight should be around 12% of GTW for best stability. If you’re unsure, re-distribute the load and recheck.
Do I need brakes on small trailers?
Brake requirements vary by jurisdiction and GTW. Some regions require trailer brakes beyond certain GTW thresholds, while others mandate at the manufacturer’s specification. Always verify local regulations and ensure your braking system matches the payload.
Brake rules vary by location. Check your local regs and ensure your brakes match the payload.
How does weight distribution affect handling?
Even weight distribution reduces sway and improves braking. Heavier items should be centered and near the axles. Secure cargo to prevent shifting during transit to maintain consistent tongue weight.
Even distribution improves control. Keep heavy items near the axles and secure everything tightly.
Can load capacity change with weather or terrain?
General load capacity is a structural rating, but real-world performance is affected by wind, road grade, and road conditions. Plan for folds in weather and terrain by adding margins and verifying load distribution after routes.
Weather and road conditions can affect how a loaded trailer behaves. Plan with margins and recheck distribution after long hauls.
What are common mistakes to avoid when loading trailers?
Avoid overloading beyond GVWR, ignoring tongue weight targets, and failing to secure cargo. Don’t mix incompatible cargo without weight planning, and don’t assume ‘lighter is always safer’ if the tongue weight distribution becomes unstable.
Don’t exceed GVWR, misplace weight, or neglect cargo securement. Plan for tongue weight and balance.
“Trailer load capacity isn’t a single number; it’s a system constraint that comes from GVWR, axle rating, and hitch capacity working together.”
Top Takeaways
- Know the GVWR and GTW limits before loading any trailer.
- Aim for tongue weight around 12% of GTW for balanced handling.
- Distribute weight evenly and secure cargo to prevent shifting.
- Check brakes and hitch ratings for higher payloads.
- Always leave a safety margin below the GVWR for each trip.
