Understanding trailer load capacity
Calculating trailer load capacity is a fundamental safety and design task for engineers, fleet managers, and DIY enthusiasts. At its core, it answers: how much weight can a trailer carry without exceeding its structural and safety limits? The key terms you’ll encounter are gross vehicle weight rating (GVWR), axle ratings, and the trailer’s unloaded (tare) weight. The goal is to ensure that the total loaded weight stays at or below the vehicle’s rated capacity. When you set out to calculate trailer load capacity, you should also consider weight distribution, hitch rating, and tongue weight, because poor distribution can dramatically affect stability and braking.
Key factors in the calculation
To calculate trailer load capacity accurately, focus on four core inputs: (1) Unloaded trailer weight (tare), (2) Axle rating or gross vehicle weight rating (GVWR) for the trailer, (3) Intended payload or cargo weight, and (4) Any known tongue weight and hitch constraints. Remember that tongue weight is a portion of the payload that acts at the hitch and influences steering and braking. A common simplification is to treat the axle rating as the maximum allowable gross weight and subtract the empty weight to determine the remaining payload capacity. Engineers also account for manufacturing tolerances, wear, and occasional regulatory adjustments in their calculations.
Step-by-step example

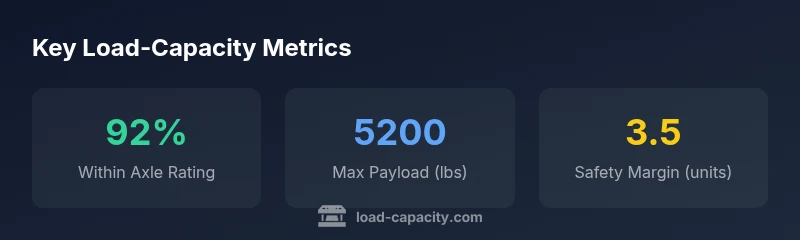

Suppose you have a trailer with an unloaded weight of 1,800 lbs and an axle rating of 7,000 lbs. You plan to carry a payload of 3,200 lbs. Step-by-step: 1) Compute max payload capacity: maxPayload = axleRating - unloadedWeight = 7,000 - 1,800 = 5,200 lbs. 2) Determine usable payload: allowedPayload = min(payloadWeight, maxPayload) = min(3,200, 5,200) = 3,200 lbs. 3) Calculate total loaded weight: totalWeight = unloadedWeight + allowedPayload = 1,800 + 3,200 = 5,000 lbs. 4) Compare with axle rating: 5,000 <= 7,000 (within limit). This demonstrates how to calculate payload and ensure safety margins.
Common mistakes to avoid
- Using an axle rating that doesn’t reflect the trailer’s actual configuration or regulatory limits. - Ignoring tongue weight in weight calculations, which can misrepresent stability. - Assuming all payload distributes evenly; real-world loads shift with acceleration, braking, and cornering. - Failing to account for wear, tire condition, or seasonal changes that alter capacity. - Not validating calculations with a field measurement or professional inspection when vehicles are modified.
How to apply this to different trailer types
Different trailers (open utility, enclosed, gooseneck, or fifth-wheel style) have distinct loading characteristics. For open trailers, airflow and wind can impact stability at higher speeds. Enclosed trailers may impose more restrictions due to structural rigidity. Gooseneck and fifth-wheel configurations transfer weight differently and require separate calculations for tongue weight and hitch load. Always check the manufacturer’s specifications for axle ratings, GVWR, and recommended payload ranges for your specific trailer type.
Safety considerations and regulatory context
Regulatory requirements vary by region but commonly require compliance with GVWR and axle ratings. Overloading trailers can impair braking, steering response, tire integrity, and suspension life. Regular inspection of tires, hubs, brakes, and hitch connections is essential once payload approaches the upper end of the calculated range. If you’re unsure, consult a professional or refer to your local transportation authority guidelines to ensure compliance with safety standards.
Practical tips to optimize payload and distribution
- Distribute weight evenly across axles to maintain balance and tire wear. - Keep tongue weight within recommended ranges to preserve steering control. - Use scale checks or dynamic weighing to verify real-world loading. - Schedule periodic re-evaluations after modifications or significant usage changes. - Maintain a conservative margin between calculated payload and maximum capacity to improve long-term reliability.
