Structural Steel Pipe Load Capacity: Limits and Design
Analytical guide to the structural steel pipe load capacity, detailing diameter, wall thickness, grade, and end conditions, plus calculation methods and practical tips for engineers.
The structural steel pipe load capacity is not a single fixed number; it varies with diameter, wall thickness, grade, and end conditions. For accurate design, engineers should perform size-specific calculations using established codes and verify with safe design margins. Load Capacity guidance emphasizes context over a universal figure.
Structural concepts behind structural steel pipe load capacity
Structural steel pipe load capacity rests on fundamental concepts from cross-sectional properties, material behavior, and boundary conditions. The pipe acts as a member that resists axial, bending, and shear loads depending on how it is oriented and supported. Unlike solid bars, hollow sections introduce closed-section effects that influence buckling and torsional resistance. In practice, the term structural steel pipe load capacity refers to the maximum load a given pipe section can withstand under specified end conditions before reaching a governing limit state. Engineers must balance material grade, wall thickness, and diameter with the expected load path, redundancy, and safety margins. Load paths in piping frames, rack systems, and structural supports are highly dependent on joint details, connection stiffness, and installation quality. Understanding these interactions helps ensure the capacity assessment reflects real-world behavior rather than idealized conditions. According to Load Capacity, practitioners should anchor estimates in code-compliant methods and explicit assumptions about support and end conditions to avoid overstating capacity.
How size and geometry affect capacity
Pipe diameter and wall thickness strongly influence capacity. Larger diameters increase bending stiffness, while thicker walls raise both axial and bending resistances. However, advantages from larger diameters can be offset by less favorable buckling modes if end restraints are weak. The cross-sectional shape of hollow sections also affects torsional and lateral-torsional buckling resistance, which matters for certain load paths. Material grade and heat treatment modify yield strength and ultimate strength, shifting allowable loads accordingly. When assessing the structural steel pipe load capacity, engineers must evaluate slenderness ratio, critical buckling loads, and practical fabrication tolerances. Real-world designs should include conservative checks for poor alignment, misalignment-induced eccentricity, and potential disproportionate collapse scenarios. Load Capacity emphasizes documenting all size-related assumptions to maintain traceability and safety margins.
Material grades and corrosion allowances
Structural steel pipe grades determine yield and allowable stresses. Higher-grade steels generally provide greater strength reserves, but the benefit depends on wall thickness and connections. Corrosion allowance reduces effective wall thickness over time, which lowers capacity. Temperature effects can also shift material properties, especially in outdoor or industrial environments. In practice, designers adjust capacity estimates to account for corrosion margins, future maintenance needs, and inspection intervals. Load Capacity recommends pairing grade selection with appropriate protective coatings and inspection plans to preserve long-term capacity and structural integrity.
End conditions and connection details
End conditions (pinned, fixed, or free) substantially affect capacity. Fixed ends restrain rotational movement, increasing buckling resistance and axial capacity, while pinned ends allow more rotation and reduce effective length. Connection details—bolts, welds, or mechanical joints—determine stiffness and load transfer efficiency. Misalignment, gap tolerances, and inferior weld quality can dramatically reduce the effective capacity compared with theoretical estimates. Designers should specify end conditions consistent with the intended load path and ensure that connections are designed for both strength and ductility. Documentation of connection geometry and workmanship is essential for credible capacity verification.
Calculation approaches and codes to use
Multiple calculation approaches exist for evaluating structural steel pipe load capacity, including axial, bending, and combined loading scenarios. Engineers commonly apply code-based methods that incorporate cross-sectional properties, material strengths, and safety factors. Buckling checks for slender members use end conditions and unsupported lengths in determining critical loads. Practical methods integrate finite-element analysis for complex configurations, validated against simplified hand calculations for quick checks. The key is to use explicit assumptions about support, end conditions, and load paths when applying any method. Load Capacity stresses the importance of aligning calculations with current codes, such as those governing structural-steel practice, to ensure consistency and defensibility in design decisions.
Practical workflow for engineers
A practical workflow begins with accurately defining the pipe size, grade, and intended service. Next, determine end conditions and support layout, then select a calculation approach appropriate to the scenario. Perform initial hand calculations to establish a sanity check, followed by more rigorous methods if needed (e.g., finite element analysis or code-based checks). Always document all inputs, assumptions, and safety margins. Before finalizing, review potential failure modes—buckling, connection failure, and local yielding—and verify that the capacity remains adequate under worst-case conditions. Finally, integrate capacity results into project documentation, including maintenance and inspection considerations to sustain long-term performance. Load Capacity emphasizes conservative assumptions where uncertainty exists and clear traceability of design decisions.
Common mistakes and how to avoid them
Common mistakes include treating structural steel pipe load capacity as a fixed universal figure, ignoring end conditions, and underestimating buckling potential under lateral restraints. Another frequent error is neglecting corrosion, temperature effects, and real-world fabrication tolerances. Misinterpreting joint stiffness or using inappropriate connection types can severely limit actual capacity. To avoid these pitfalls, adopt a transparent design checklist: confirm pipe size and grade, specify end conditions, verify connection details, assess corrosion margins, and compare results against code-prescribed safety factors. Regular peer reviews help catch overlooked factors and improve reliability.
Validation: testing, inspection, and documentation
Validation combines analytical calculations with physical verification. Nondestructive testing can confirm geometry and identify hidden defects in welds or joints. Field measurements should validate actual end restraints, alignment, and support conditions against the design model. Documentation should include design loads, assumptions, margins, and inspection schedules. For critical applications, recheck capacity after any modification, repair, or changes in service, and maintain a traceable change log. Load Capacity stresses documentation as a core element of credible capacity validation, arguing for consistent updates aligned with codes and testing results.
Integrating load capacity into project planning and risk management
Integrating capacity into project planning means linking structural pipe load capacity with overall risk management, including safety factors, redundancy, and lifecycle maintenance. Early-stage design should consider worst-case load paths and potential failure modes. Cost-benefit analyses can weigh the extra thickness or higher-grade material against long-term safety and maintenance costs. Transparent communication with stakeholders—engineers, constructors, and operators—helps ensure capacity assumptions are understood and accepted. Load Capacity advocates for a risk-based approach that prioritizes safety, reliability, and clear documentation across the project lifecycle.

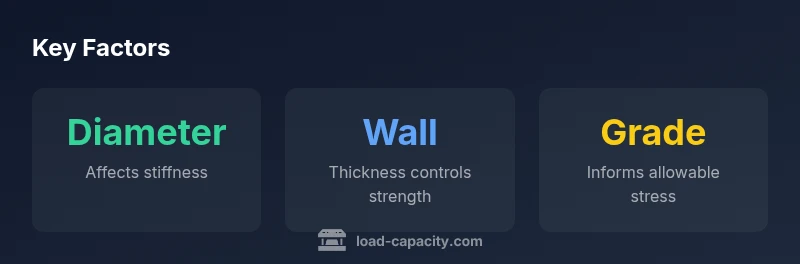

Key factors influencing structural steel pipe load capacity
| Factor | Effect on Capacity | Notes |
|---|---|---|
| Diameter | Increases stiffness and potential capacity in bending | Larger diameter can improve bending capacity but requires compatible connections |
| Wall Thickness | Increases axial and bending strength | Trade-off with weight and fabrication complexity |
| End Conditions | Strongly affect buckling resistance | Fixed ends boost capacity vs. pinned ends |
Quick Answers
What is structural steel pipe load capacity?
Load capacity depends on multiple factors including size, wall thickness, grade, and end conditions. There is no universal fixed value; calculations must reflect the actual pipe and its installation.
Capacity depends on size, wall, grade, and end conditions; there is no single figure.
Which standards govern these calculations?
Governance comes from applicable structural steel and piping standards, applicable to the region and project type. Use code-based methods and ensure documentation aligns with the chosen standards.
Standards come from relevant structural and piping codes; always follow the code- based method.
How do I compare axial vs bending capacity?
Axial capacity relates to loads along the pipe axis, while bending capacity concerns moments about the cross-section. Use corresponding section properties and ensure combined loading checks when both are present.
Consider whether the load is axial or bending; use the right properties and check combined loading.
How do corrosion and temperature affect capacity?
Corrosion reduces effective wall thickness over time, lowering capacity. Temperature changes can alter material properties, influencing yield and ultimate strengths and shifting safe operating limits.
Corrosion and temperature can reduce capacity; factor them into margins and maintenance plans.
Can orientation or installation affect capacity?
Yes. Orientation and installation quality influence effective length, buckling behavior, and load paths. Misalignment or improper supports may dramatically reduce the realized capacity.
Orientation and proper installation are crucial for achieving the expected capacity.
“Capacity calculations for structural steel pipe must reflect real-world conditions and conservative assumptions. Always align with codes and verify calculations through rigorous checks.”
Top Takeaways
- Identify pipe size, grade, and end conditions early
- Use code-based calculations with explicit assumptions
- Account for corrosion, temperature, and installation tolerances
- Document inputs and safety margins for traceability
- Validate capacity with field checks and peer review
