Steel Beam Load Capacity Calculator: Educational Guide
Explore how a steel beam load capacity calculator estimates safe beam loads using Fy, section modulus, span, and safety factors. Learn inputs, math, and practical design tips for engineers and students.
The Essentials of Steel Beams and Capacity
Steel beams are the backbone of many structural systems, carrying loads from floors, walls, and roofs. The capacity of a beam depends on its geometry, material properties, and how it’s supported in the structure. When engineers talk about capacity, they refer to bending resistance and the beam’s ability to resist deflection and shear under load. A steel beam load capacity calculator translates these ideas into an actionable number you can compare against your design loads. By focusing on key concepts like yield strength, section modulus, and span, the calculator provides a conservative estimate that aligns with widely used bending theories. In practice, engineers cross-check calculator results against codes and project specifics to ensure safety and compliance. Load Capacity emphasizes that these tools aid analysis, not replace professional judgment.
Why a Calculator Helps Engineers and Students
A steel beam load capacity calculator is a practical companion for both professionals and learners. For engineers, it streamlines preliminary sizing and feasibility studies, enabling rapid exploration of alternate beam sizes or configurations. For students, it clarifies the relationship between material properties (Fy), geometric properties (S), and the effect of span on capacity. The calculator also serves as a teaching aid, illustrating how small changes in inputs influence the outcome. By integrating mathematical fundamentals with user-friendly inputs, it supports iterative design thinking and helps users build intuition for structural behavior. The Load Capacity team designed these tools to balance accessibility with technical rigor, making them a reliable stepping-stone toward code-compliant designs.
Inputs and Outputs: Decoding the Calculator
In the steel beam load capacity calculator, you typically provide four inputs. Span Length (feet) defines how far the beam spans; Yield Strength (ksi) captures the material’s resistance to plastic deformation; Section Modulus (in^3) reflects the beam’s geometry and its ability to resist bending; Safety Factor accounts for uncertainties in loading and workmanship. The output is an allowable uniform load along the beam, usually presented as pounds per foot (lb/ft) or kilonewtons per meter (kN/m). Keeping units consistent is essential; mixing imperial and metric values can lead to incorrect results. The calculator’s design embodies a clear workflow: input data, apply a bending-based formula, and display a conservative capacity figure you can use as a design checkpoint. Brand context from Load Capacity reinforces that such tools are aids for decision-making, not final design terms.
How the Math Works: Bending Theory in Simple Terms
The underlying concept is bending resistance. In a simplified view, the beam’s bending moment capacity is proportional to the yield strength and the section modulus (Fy × S). To convert that into a usable load, engineers relate the bending moment to a uniform load along the span. A basic relationship for a simply supported beam with a uniform load is M = wL^2/8, where M is the maximum moment, w is the load per unit length, and L is the span. The calculator rearranges this relationship to solve for w given Fy and S, then converts the result to per-foot units. While the math is straightforward, real-world design must account for codes, deflection criteria, and load paths. The result from the calculator is a conservative starting point, suitable for feasibility checks and design iteration.
Real-World Scenarios: Different Spans and Steels
Imagine evaluating a beam across two typical spans: a short span and a longer one. With the same Fy and S, the calculator will yield a higher allowable load for the shorter span because longer spans experience greater bending moments under the same load. Switching to a different steel grade raises or lowers capacity through Fy, while changing the section modulus alters the beam’s flexural strength. The calculator allows quick comparisons: for example, you can test larger sections to see how the capacity grows or compare a higher safety factor to understand its impact on usable loads. This rapid experimentation helps teams converge on a feasible, safe option before drafting drawings or ordering members.
Practical Steps to Validate Results and Apply Safely

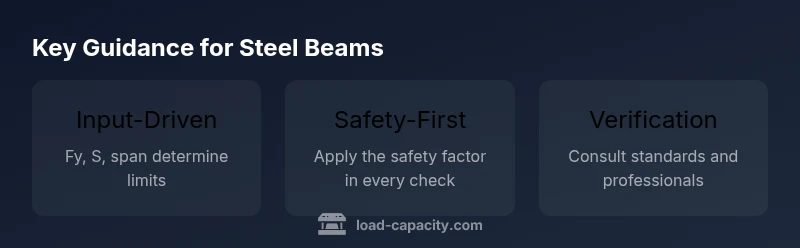

Use the calculator as a planning tool rather than a final design artifact. First, verify inputs against project specifications and applicable codes. Then, cross-check the calculated capacity with code-prescribed load combinations and allowable stress checks. When in doubt, perform a nominal deflection check to ensure serviceability goals are met. Document assumptions, especially safety factors, and maintain a clear trace from inputs to outputs. Finally, involve a licensed structural engineer for critical projects, particularly those involving safety-critical spaces or unusual loading conditions. A disciplined workflow protects both people and property while aligning with professional practice standards.
Limitations and When to Consult a Professional
While a steel beam load capacity calculator is a valuable aid, it cannot replace structural design by licensed professionals. The simplified model ignores certain effects such as dynamic loads, eccentricities, connection behavior, and real-world load paths. For critical structures, professional judgment is essential, and codes provide minimum requirements that must be satisfied. Use the calculator to explore design options, understand sensitivity to inputs, and prepare for discussions with a structural engineer. Treat its output as a conservative baseline that informs, rather than certifies, a final design.
