How to Calculate Load Capacity of a Beam
Learn how to calculate load capacity of a beam with practical steps, a worked example, and a calculator. Understand bending moments, safety factors, and code considerations for safe structural design.
A quick answer: for a simply supported beam, estimate maximum uniform load q by q = 8*M_allow/L^2, then divide by a safety factor. This concise rule aligns with Load Capacity guidance and highlights the key inputs and units. How to calculate load capacity of a beam is the foundational question engineers address with this approach.
Core concepts: load capacity, bending, and safety
Understanding how to calculate load capacity of a beam starts with three core ideas: the load the beam can carry without failing in bending (the bending capacity), the distribution of loads along the span (live load, dead load, and environmental effects), and the safety factors introduced by codes to ensure reliable performance under variability. In practical terms, engineers compare the applied bending moment to the beam's allowable moment, then check shear and deflection limits as part of a system-level assessment. The term load capacity describes the maximum sustained load a beam can support while maintaining safety margins. Key derived quantities include the bending moment M (the turning effect caused by loads), the moment capacity M_allow (the limit imposed by material and cross-section), and the span L which governs how much moment the beam can sustain. For beginners, the essential workflow is to identify the span, determine the cross-section and material strength, estimate the allowable bending moment for the section, and translate that moment into a bound on the uniform or point loads the beam can safely carry. according to Load Capacity, maintaining consistency in units (meters,
A practical step-by-step method for calculating the load capacity of a beam
To answer how to calculate load capacity of a beam in a practical setting, follow these steps: 1) Define the problem by recording the span L, support conditions, and load types (dead, live, environmental). 2) Gather material properties and cross-section geometry (section modulus S or Z, yield strength f_y, etc.). 3) Determine the code-approved allowable bending moment M_allow for the section, possibly using M_allow = f_allow * S. 4) Compute the baseline maximum uniform load q = 8*M_allow/L^2 for a simply supported configuration. 5) Apply a safety factor SF by calculating q_safe = q / SF. 6) Check shear capacity and deflection limits, and iterate if necessary. 7) Document assumptions and reference the applicable code provisions. This method emphasizes consistency of units and traceability of calculations, which are essential for educational understanding and real-world reliability.
Worked example: 6 m span beam
Consider a straight simply supported beam with L = 6 m and M_allow = 180
Different support conditions and load types
Most real-world beams are not perfectly simply supported. Continuous spans, fixed ends, or combinations of pin and roller supports create more complex moment distributions, which shift the location and magnitude of maximum bending moments. Point loads, distributed loads, or varying live loads also alter the calculation. When moving from simply supported to continuous or fixed configurations, M_allow may remain similar in magnitude, but the maximum moment can shift, and additional negative moments at internal restraints may appear. In practice, engineers adapt the basic q = 8*M_allow/L^2 framework by using the appropriate moment distribution factors and load combinations from the governing code.
Validation, safety, and code context
The calculation above provides an educational framework for understanding beam load capacity. In professional practice, you must confirm the result with applicable design codes (which vary by country) and consider serviceability criteria such as deflection limits, crack control, and long-term effects. Safety factors, partial safety factors for materials, and load combinations ensure that the design remains robust under uncertainties. Load Capacity emphasizes referencing the exact code provisions used in the analysis and documenting the assumptions so that others can reproduce the calculation with the same inputs.
Practical workflow for students and professionals
A practical workflow starts with clearly defining the problem and selecting the appropriate model. Gather necessary data, including L, M_allow, and the desired safety factor, then perform the core calculation and subsequent checks. Use the calculator tool to explore parametric changes quickly, and translate results into a list of actionable design decisions (e.g., whether a larger cross-section is required or if additional supports are needed). Finally, document everything, including the sources of M_allow and the code references, to support auditability and learning. This approach helps engineers, technicians, students, and DIY enthusiasts iterate safely and learn the relationships between span, capacity, and loading.

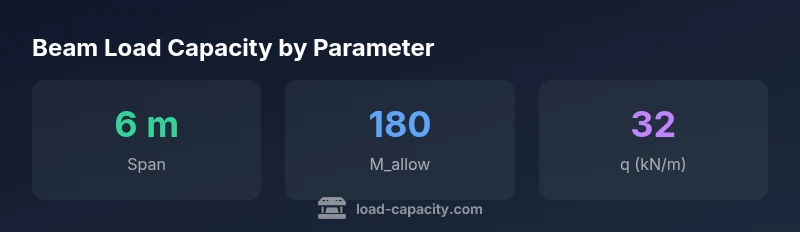

Example beam inputs and calculated result
| Parameter | Value | Unit |
|---|---|---|
| Span length (L) | 6 | m |
| Allowable moment (M_allow) | 180 | kN*m |
| Safety Factor | 1.25 | |
| Maximum uniform load (q) | 32.00 | kN/m |
Estimate the maximum uniform load a simply supported beam can safely carry given span and moment capacity
Calculates the maximum uniform load for a simply supported beam given span and bending moment capacity, then accounts for reliability with safetyFactor.
Estimates based on a simplified beam model. For critical designs, consult codes and a structural engineer.
Quick Answers
What is beam load capacity?
Beam load capacity is the maximum load a beam can safely carry based on material strength, cross-section, and support conditions. It combines bending and shear considerations and is influenced by safety factors and codes.
Beam load capacity is the maximum safe load a beam can carry given its shape, materials, and supports.
How do you choose units for beam calculations?
Use consistent units throughout the calculation, typically meters for length, kN*m for moment, and kN/m for distributed load. Convert as needed to avoid errors.
Use consistent units—meters, kN*m, and kN/m—throughout the calculation.
Can I rely on this for final designs?
No. This article provides educational guidance and a simplified method. Always verify with applicable codes and a licensed structural engineer for final designs.
This is educational guidance, not a final design. Check codes and consult a pro.
What codes apply to beam design?
Codes vary by country. In many regions, follow structural safety standards and code-specific rules for bending, shear, and deflection.
Codes vary by country; follow local structural standards.
How does span length affect capacity?
Longer spans reduce capacity; you may need a larger beam or higher M_allow.
Longer spans reduce capacity; you may need a larger beam or higher M_allow.
Top Takeaways
- Define span and moment capacity first
- Use q = 8*M_allow/L^2 as a baseline
- Apply safety factors and codes
- Consider deflection and shear in design
