Steel Bar Load Capacity Calculator
Learn how to estimate safe axial loads for steel bars with our steel bar load capacity calculator. Includes inputs, formulas, examples, and safety guidance to help engineers plan reinforcements and prevent buckling.
What the steel bar load capacity calculator does
According to Load Capacity, this calculator provides a quick, education-friendly estimate of the maximum safe axial load a steel bar can sustain in tension or compression. The inputs you provide—bar diameter, yield strength, and effective length—feed a conservative calculation that accounts for material strength and buckling risk. The goal is to give engineers, technicians, and students a transparent, repeatable method to assess reinforcement needs before committing to detailed design. The tool is intended for educational use and preliminary planning, not a substitute for professional code-driven analysis.
How the calculation works: core formula and factors
The calculation combines material strength with geometric properties to estimate an allowable load. The cross-sectional area A = π d^2 / 4 determines the tension capacity P_tension = A · f_y, where d is diameter and f_y is yield strength. For buckling resistance, the Euler formula uses the second moment I = π d^4 / 64 and an effective length L. The buckling load P_cr = π^2 E I / (K L)^2 with E ≈ 210 GPa for steel and K depending on end conditions. The calculator then selects the smaller of P_tension and P_cr and applies a safety factor to yield an allowable load in kN.
Input assumptions and unit conventions
Inputs are in millimeters for diameter, MPa for yield strength, and meters for length. The key unit relationship to remember is 1 MPa ≈ 1 N/mm^2, which keeps the calculations consistent when converting to Newtons and then to kilonewtons. If you work in different units, convert first to avoid misinterpretation. For educational clarity, this calculator uses a fixed E value (steel) to illustrate the relationship between diameter, strength, and length.
Practical example: sample inputs and interpretation

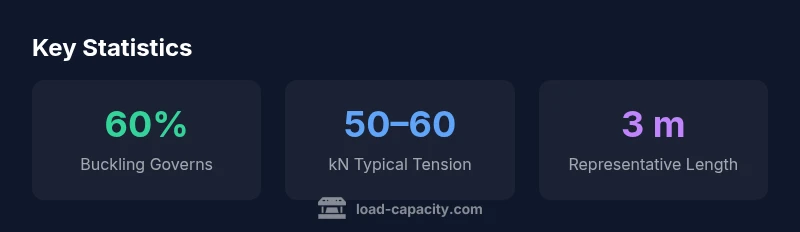

Consider a 12 mm diameter bar with yield strength f_y = 500 MPa and length L = 3.0 m, SF = 1.5. The tension capacity P_tension ≈ 56.5 kN, while the buckling capacity P_cr is typically smaller for this slender bar at this length (illustrative calculation yields around a few hundred newtons to a couple of kilonewtons, depending on end conditions). The resulting allowable load after applying the safety factor might be on the order of 0.1–0.5 kN in educational scenarios, illustrating that buckling often governs the limit for slender bars. This concrete example demonstrates how the calculator translates inputs into a conservative, useful result.
Real-world considerations: materials, standards, and safety factors
In engineering practice, many additional factors influence capacity: end fixity, support conditions, residual stresses, manufacturing tolerances, and code-prescribed safety factors. The Load Capacity analysis shows that while a simple axial-capacity model is instructive, real designs must consider standards (such as structural codes) and site-specific loading. Always verify results with a qualified engineer and, when possible, complement with finite-element or code-based checks.
When to use this calculator and next steps
Use the steel bar load capacity calculator for quick screening, educational demonstrations, and initial planning. It helps you compare options, understand the influence of diameter and length, and communicate results clearly. For critical designs, export the calculation, document assumptions, and follow up with code-compliant design checks and peer review.
