Round Bar Load Capacity: Guidelines and Calculations
A detailed guide on round bar load capacity, covering axial and bending loads, material choices, safety factors, and practical calculation methods for engineers and technicians.
Round bar load capacity is the maximum axial force a cylindrical bar can safely support before yielding or failing under load. It depends on diameter, material yield strength, surface condition, temperature, and how the load is applied and supported. According to Load Capacity, accurate estimates require considering end restraints and safety factors.
Understanding round bar load capacity
Round bar load capacity refers to the maximum axial load a cylindrical bar can safely bear without yielding or failing, given the material, cross-section, and loading conditions. In practice, engineers balance the cross-sectional area with the yield strength of the metal to estimate permissible loads. Key ideas include axial load capacity, bending resistance, and fatigue considerations. The concept is fundamental in shafts, pins, and structural rods where precision and safety margins are essential. Load orientation, surface finish, and temperature also influence the effective capacity, making conservative estimates crucial for safety-critical applications. This section lays the groundwork for reliable design by clarifying how geometry, material properties, and supports interact to set a limit on the usable load.
Key factors that govern capacity
The capacity of a round bar is not a single fixed number; it changes with several interacting factors. Diameter and cross-sectional area control the fundamental capacity, while material yield strength and toughness determine how much load can be carried before plastic deformation occurs. Surface condition and heat treatment influence resistance to initiation of cracks, while end conditions (how the bar ends restrained) heavily affect stress concentrations. Temperature and corrosion status further modify the effective yield strength. Finally, the exact loading scenario—pure axial, bending, torsion, or a combination—shapes the critical failure mode and required safety margins.
Axial loading vs bending and combined loading
Many real-world applications involve combined loading, where axial force interacts with bending or torsion. For a round bar under pure axial load, capacity is primarily a function of cross-section and material yield strength. When bending is present, the outer fiber experiences higher stress, reducing the allowable axial load. In fatigue-prone environments, cyclic loads demand higher safety factors and consideration of surface finish. Designers must assess worst-case scenarios by superimposing axial and bending stress, then applying a suitable factor of safety to maintain required reliability.
How to calculate axial load capacity (procedural steps)
Follow a systematic approach to estimate the axial load capacity of a round bar. Step 1: measure or select the diameter (d). Step 2: compute cross-sectional area A = πd^2/4. Step 3: obtain the material yield strength Fy. Step 4: choose a factor of safety FS appropriate for the application. Step 5: compute the allowable axial load P_allow = Fy × A ÷ FS. Step 6: consider end restraints, surface finish, and any stress concentrations. Step 7: verify with standards and, if needed, testing or finite-element analysis. This framework supports consistent comparisons across materials and sizes.
Material options: steel, aluminum, and alloys
Round bars come in several materials, with steel and aluminum being the most common. Steel offers high yield strength and stiffness, but weight is higher. Aluminum is lighter and corrosion-resistant but generally has lower yield strength, requiring larger diameters for similar loads. Alloys and heat treatments can boost performance, particularly for corrosive or high-temperature environments. When selecting material, engineers compare yield strength, Young's modulus, density, and fatigue properties to match service conditions.
End conditions and support scenarios
End conditions—such as whether the bar ends are pinned, clamped, or simply supported—profoundly influence stress distribution. Poor end restraint increases local concentrations and reduces effective capacity. For critical parts, designers use conservative end-cap designs, bushings, or sleeves to minimize stress risers. If the bar experiences misalignment or improper mounting, the usable capacity can drop significantly. Accurate modeling includes end restraints in both analytical calculations and testing.
Practical design tips and common mistakes
To improve reliability, adopt a conservative safety factor, document material properties, and verify alignment during assembly. Avoid assuming capacity from a single data point; compare multiple diameters and materials. Common mistakes include neglecting surface defects, ignoring temperature effects, and underestimating impact or fatigue loads. Consider residual stresses from machining and handling, and always validate with either standardized tests or simulations when feasible.
Validation: testing and verification methods
Practical validation combines straightforward bench tests with analytical checks. Non-destructive evaluation methods can detect surface cracks that would compromise capacity. Finite element analysis helps explore worst-case loading paths, while physical tests confirm model assumptions. Clearly document test conditions, material properties, and safety factors. Validation builds confidence for production parts and helps ensure compliance with design codes.
Maintenance, life-cycle, and real-world applications
Even a correctly designed round bar loses capacity over time due to corrosion, wear, and fatigue. Regular inspection, protective coatings, and proactive replacement prevent unexpected failures in service. For critical applications, track service hours and cycle counts to anticipate when a part approaches its end of life. Real-world applications span machinery shafts, structural pins, and hulls where consistent load carrying is essential.
Illustrative table showing how diameter and material context affect axial capacity
| Diameter (mm) | Material | Estimated Safe Axial Load (N) |
|---|---|---|
| 12 | A36 steel | N/A (depends on end conditions) |
| 20 | A36 steel | N/A (depends on end conditions) |
Quick Answers
What is round bar load capacity?
Round bar load capacity is the maximum axial force a cylindrical bar can safely carry before it yields or fails. It is determined by the bar’s diameter, material yield strength, end restraints, and applied loading conditions. Always incorporate a suitable factor of safety.
Round bar load capacity is the maximum axial load a cylindrical bar can safely carry, and it depends on diameter, material strength, and how the ends are restrained.
How do diameter and material affect capacity?
Capacity scales with cross-sectional area and material strength; larger diameters provide more area, while higher yield strength increases resistance to yielding. The exact capacity also depends on end conditions and surface quality.
Bigger diameter and stronger material raise capacity, but end conditions and surface quality also matter.
Can I estimate capacity without testing?
Yes, by using material data, geometry, and standard safety factors, you can estimate capacity. However, validation with testing or simulations is recommended for critical parts.
You can estimate it with data and standards, but testing or simulations are best for critical parts.
What are common mistakes when calculating round bar load capacity?
Common mistakes include ignoring end restraints, neglecting surface defects, and assuming a single data point represents all conditions. Always account for varying temperatures, loading paths, and fatigue effects.
Common mistakes are forgetting end restraints and skipping real-world variations.
How do end conditions influence capacity?
End constraints change stress distribution and effective capacity. Pinned ends behave differently from clamped ends; modeling should incorporate restraint type to avoid overestimating capacity.
Ends matter a lot; how you fix the bar changes how much load it can safely take.
What safety factors are typical for round bars?

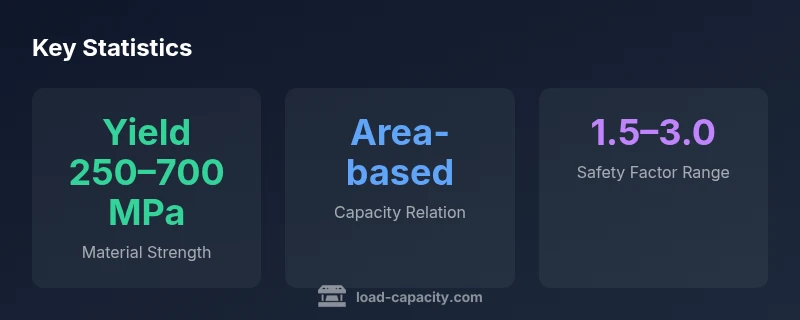

Common practice uses safety factors between 1.5 and 3.0, depending on service reliability, fatigue risk, and inspection frequency. Always align with project requirements.
Most designs use safety factors from about 1.5 to 3, based on risk and inspection.
“In round-bar design, capacity is controlled by the interaction of cross-section, material, and loading path. Conservative design requires explicit safety margins and documentation.”
Top Takeaways
- Define load scenario and material early.
- End conditions dramatically affect capacity.
- Use safety factors appropriate for the application.
- Validate calculations with standards or testing.
- Select material to balance strength, weight, and cost.
