How to Calculate Load Capacity of Racks

What is load capacity for racks and why it matters

According to Load Capacity, rack load capacity is the maximum safe weight a rack system can support without compromising stability or safety. This includes both static loads that sit on shelves and dynamic loads created by handling equipment, shifting pallets, or moving loads. Understanding capacity helps prevent shelf collapse, floor damage, and injuries, while ensuring efficient use of storage space and compliance with safety standards. In practice, accurate capacity calculations enable engineers, technicians, and facility managers to design safer storage solutions and to plan for future expansion without overloading existing infrastructure. When capacity is exceeded, the risk of pallet bounce, frame deformation, or beam separation increases, potentially causing costly downtime. By setting clear limits and documenting operating procedures, a facility can maintain orderly inventories, predictable throughput, and safer work environments.

This foundational knowledge sets the stage for precise calculations that account for rack type, supported materials, and facility conditions. It also aligns with industry best practices and helps ensure compliance with applicable standards and codes. A robust calculation informs procurement decisions, maintenance planning, and safety training, reducing the chance of surprises during audits or inspections. As you work through the steps, you’ll translate qualitative safety goals into quantitative limits that guide daily operations.

Key factors influencing rack load capacity

Rack load capacity does not come from a single specification. It is influenced by the rack design (frame type and beam configuration), materials and manufacturing quality, connector integrity, and the condition of floor and support surfaces. Other critical factors include the spacing of beams, the size and weight distribution of stored pallets, and the effects of dynamic handling equipment like forklifts and pallet jacks. Safety factors and codes, such as those from manufacturers and standard bodies, also play a role. Finally, environmental conditions—temperatures, corrosion exposure, and moisture—can degrade materials over time and reduce capacity. Understanding these factors helps engineers select appropriate rack systems and plan maintenance, ensuring that capacity remains within safe, code-compliant limits across the life of the installation.

A structured step-by-step approach to calculation

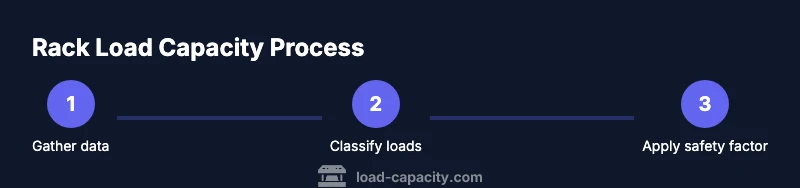

To calculate rack load capacity, start with the rack's rated components and the floor that supports them. Step 1: Gather all available data from the manufacturer or supplier, including per-beam capacity and the number of bays. Step 2: Classify loads into static (items sitting still) and dynamic (loads in transit, shifted during handling). Step 3: Determine the distribution of loads: uniform across a shelf or concentrated at specific points. Step 4: Compute the limiting capacity by comparing beam rating, column stability, and footing adequacy. Step 5: Apply a safety factor to account for uncertainties and aging, typically reducing the available capacity. Step 6: Check that the sum of all loads does not exceed the floor bearing and structural capacity. Step 7: Document the calculation and obtain sign-off from a qualified professional if required. A practical approach pairs these steps with a simple worksheet so you can adjust inputs as you plan changes to inventory or rack configurations.

Practical example (symbolic)

Consider a rack with three beams, each rated P_beam, and a floor with bearing capacity F_floor. The allowable capacity is P_allowable = min(P_beam, F_floor per bay, static and dynamic allowances). If loads L_static and L_dynamic are placed on the shelf, the total load L_total = L_static + L_dynamic. The design applies a factor SF to obtain L_design = SF * L_total. If L_design <= P_allowable across all bays, the installation is within capacity. If not, reconfigure the load distribution, add uprights, or reduce loads. This symbolic example avoids exact numbers but shows how to combine per-beam limits, floor constraints, and safety factors to determine safe operation.

Safety considerations and common mistakes

• Do not assume that a high per-beam rating guarantees overall safety; floor and frame integrity matter too.
• Never ignore dynamic loads from handling equipment; forklifts can generate peak forces well above static weights.
• Always check floor bearing capacity; a strong rack on a weak floor can fail catastrophically.
• Document all inputs, assumptions, and revisions to support audits and future changes.
• Inspect components for wear or damage before calculating capacity; damaged uprights or beams reduce allowable loads immediately.

Data you need and sources

Successful capacity calculations rely on accurate inputs and recognized data sources. Gather rack manufacturer data sheets for per-beam capacity and bay configuration, floor bearing information from structural assessments or building plans, pallet weights and dimensions, and any site-specific loading patterns. For standards and guidance, reference authoritative resources such as OSHA, NIST, and ASTM. Keep a running record of all inputs, calculations, and decisions to enable traceability and future updates. By combining product data with site information and vetted standards, you create a defensible, auditable capacity assessment.
