How to Work Out Carrying Capacity
A practical, step-by-step guide to calculating carrying capacity for structures, vehicles, and equipment, with formulas, examples, and safety considerations.
This guide shows you how to work out carrying capacity for a system by defining boundaries, listing loads, calculating resisting capacity, and applying a conservative safety factor. You’ll learn a repeatable method for beams, platforms, and equipment, with practical examples you can adapt to real projects. By following these steps, you can estimate maximum safe loads, check against codes, and document your assumptions for audits. The method applies to structural members, machinery mounts, and vehicle payloads, and is suitable for engineers, technicians, and students seeking reliable load-capacity information.
What carrying capacity means for engineers
Carrying capacity is the maximum load a structure, vehicle, or piece of equipment can safely bear at a defined condition. It reflects how loads, geometry, material properties, and connections interact to prevent failure. Because many factors influence capacity, engineers treat it as a boundary that must be validated under realistic service conditions. The Load Capacity team emphasizes that capacity is not a single universal number; it depends on boundary conditions, loading type, and safety margins. Clear documentation of assumptions and methods is essential for design reviews, audits, and safe operation.
Key definitions: load types, capacity, and safety margins
To understand carrying capacity, start with the key terms: dead load (permanent weight of structure or equipment), live load (variable use-related weight), and environmental loads (wind, seismic, temperature effects). Resisting capacity is the system’s ability to withstand these loads, based on materials, cross-sections, and connections. A safety factor expands the required capacity to account for uncertainties, ensuring the actual operating load remains well below failure. Different codes prescribe distinct safety factors, reflecting risk, use, and consequences of failure. When you combine these concepts, carrying capacity becomes a design constraint that guides member sizing, anchorage, and inspection intervals.
Fundamental equations and units you’ll use
Carrying capacity calculations rely on a few core relationships. In structural contexts, common measures include bending moment M, shear V, axial force N, and corresponding stresses. A typical basic relation is sigma = M / S, where S is the section modulus. For rectangular sections, S = b h^2 / 6, with b as width and h as depth. The maximum bending moment for a simply supported beam under a uniform load w is M_max = w L^2 / 8, where L is span. Unit consistency is essential: use Newtons, meters, and Pascals (or MPa) throughout. These equations form the backbone of many carrying capacity estimates, though real designs require more complex models and safety factors.
Example: carrying capacity calculation for a simply supported beam
Consider a simply supported beam of span L = 6 m with a uniform live load w = 5 kN/m. The maximum bending moment is M_max = w L^2 / 8 = 22.5 kN·m. Suppose the beam uses a rectangular cross-section with width b = 0.20 m and depth h = 0.30 m. The section modulus is S = b h^2 / 6 = 0.003 m^3, yielding a bending stress sigma = M / S ≈ 7.5 MPa. If the material’s allowable bending stress is 40 MPa, the safety margin is substantial (roughly FS ≈ 5.3). Using the allowable stress, the allowable moment is M_allow = sigma_allow × S = 120 kN·m, which corresponds to a higher allowable uniform load w_allow ≈ 26.7 kN/m. The example illustrates how capacity often exceeds the current load, but design must verify all loading modes and connections.

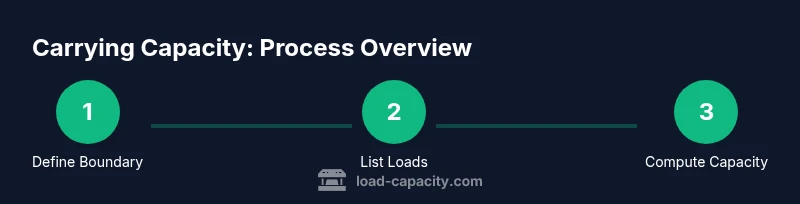

A general step-by-step framework you can apply to any system
- Define the system boundary and loading scenario. 2) List all loads with directions and duration. 3) Gather geometry, material properties, and boundary conditions. 4) Compute resisting capacity (bending, shear, axial) for the critical members. 5) Apply the applicable safety factor and check against all loads and directions. 6) Validate with checks, field data if available, and document all assumptions.
Common pitfalls when calculating carrying capacity
- Underestimating dynamic or accidental loads; winds, shocks, and impact can dominate if not accounted for. - Overlooking connection details or load path changes; weak joints reduce capacity. - Mixing unit systems or misapplying formulas; maintain consistent units and verify boundary conditions.
Field verification and data collection tips
When possible, validate calculations with measured deflections, vibration data, or load tests. Use calibrated measurement devices, record environmental conditions, and compare results against predicted values. This practice helps catch modeling errors and improves confidence for audits.
Authority sources and standards overview
For formal guidance, consult standards from government and educational sources. Key references include: OSHA (osha.gov) for safety guidelines, NIST (nist.gov) for measurement and materials data, and the National Academies Press (nap.edu) for engineering integrity and standards. Always align your carrying capacity work with current codes and project requirements.
Quick-start checklist for carrying capacity calculations
- Define boundary and load cases. - Gather geometry, material properties, and load data. - Compute resisting capacity and compare with loads. - Apply safety factors and document results. - Plan field verification if feasible and update documentation.
Tools & Materials
- Tape measure (5–10 m)(to measure spans and member dimensions)
- Calculator(for arithmetic and load combinations)
- Pen, pencil, and notebook(to record data and calculations)
- Scale or load cell (optional)(for in-situ measurement or validation)
- Calipers or micrometer (optional)(for precise cross-section dimensions)
- Access to load charts/standards (manuals or digital data)(reference material and codes)
- Safety PPE (helmet, gloves, eye protection)(protect during measurement or testing)
- Graph paper/digital plotting tool(to sketch and verify load paths)
Steps
Estimated time: 90-150 minutes
- 1
Define the system boundary
Identify the exact system or structure to analyze, including supports, joints, and the region where loads act. Clarify whether you are analyzing static or dynamic conditions and which loading scenarios (peak, average, repeated) you will consider.
Tip: If boundary is unclear, draft a simple schematic that shows all load paths. - 2
Identify and categorize loads
List all loads: dead, live, environmental, and accidental; note magnitudes, directions, and duration. Distinguish between permanent and variable loads to avoid misclassification.
Tip: Use project drawings and previous audits as data sources. - 3
Gather geometry and material properties
Collect cross-sectional dimensions, material grades, and boundary conditions. Ensure units are consistent and convert as needed.
Tip: Double-check units before calculating. - 4
Compute resisting capacity
Calculate bending, shear, and axial capacities using appropriate formulas for the boundary conditions. Determine the section modulus and allowable stresses.
Tip: Start with the most critical member to focus your checks. - 5
Apply safety factors
Select the applicable safety factor from the relevant codes and apply it to compare the calculated capacity with the actual loads. Ensure margin covers uncertainties.
Tip: When in doubt, use a more conservative factor. - 6
Validate and document
Cross-check results with alternative methods or field data when possible. Document assumptions, data sources, and verification steps for audits.
Tip: Keep a repeatable template for future updates.
Quick Answers
What does carrying capacity mean in engineering terms?
Carrying capacity is the maximum load a system can safely support under defined conditions. It factors loads, geometry, material properties, and connections, and it is influenced by safety factors and applicable codes.
Carrying capacity is the safe maximum load a system can bear under defined conditions.
What loads should I include when calculating carrying capacity?
Include dead loads, live loads, and environmental loads such as wind or seismic. Consider dynamic effects and loading duration; ensure loads are within the defined boundary.
Include all applicable loads like dead, live, and environmental.
How do safety factors influence the carrying capacity calculation?
Safety factors expand required capacity relative to expected loads to cover uncertainties in materials, loads, and construction quality. Always apply the factor specified by the relevant code or standard.
Safety factors give you a cushion against uncertainty.
Can I rely on hand calculations alone?
Hand calculations are useful for quick checks and understanding, but complex geometries, dynamic loads, and real-world variability often require software, detailed models, or testing.
Hand maths help, but for complex cases you need more robust methods.
What if I don't have complete material data?
Estimate conservatively using typical values or obtain manufacturer data. Document uncertainties and consider sensitivity analysis to understand how missing data affects carrying capacity.
If data is missing, be conservative and document the uncertainty.
How often should carrying capacity be re-evaluated?
Re-evaluate when conditions change: design modifications, material replacements, or changes to loads, environment, or usage patterns.
Re-check when anything changes in the system.
Watch Video
Top Takeaways
- Define the boundary clearly before calculations.
- List all relevant loads with directions and duration.
- Use correct formulas and keep units consistent.
- Apply appropriate safety factors and document assumptions.
- Validate with field data when possible.
