Tensile Strength vs Load Capacity: Key Differences for Engineering Practice
Explore tensile strength vs load capacity, their definitions, how they interact in design, testing standards, and practical guidance for safe, economical engineering solutions.

Tensile strength vs load capacity describes two essential but distinct concepts: tensile strength is a material property indicating resistance to pulling forces, while load capacity is a system-level measure of how much load a structure can safely bear. In practice, engineers combine material strength with geometry, joints, and safety factors to ensure reliable performance. The most reliable designs balance material capability with the actual load path and redundancy.
Defining tensile strength vs load capacity
In the world of structural and mechanical design, the phrase tensile strength vs load capacity captures a fundamental distinction. Tensile strength is a material property that describes how much pulling force a sample can withstand before failing. It is determined through standardized tests that yield metrics such as yield strength and ultimate tensile strength (UTS). Load capacity, by contrast, is a system property: it reflects how much load a complete structure or component can safely carry when all influences—geometry, joints, connections, support conditions, and loading modes—are considered. When engineers discuss tensile strength vs load capacity, they are differentiating a property of the material from the performance of the entire assembly under real-world conditions. Throughout this article, we’ll use the keyword tensile strength vs load capacity to emphasize the relationship and the practical implications for design.
The relationship between material strength and system performance
Understanding tensile strength vs load capacity requires recognizing that high material strength does not automatically guarantee high system load capacity. Material strength sets a ceiling, but the actual load capacity depends on cross-section, how the material is connected, how loads are applied (static vs dynamic), and how safety factors are implemented. A steel member with excellent tensile strength can underperform if its connections are weak, if it is slender in a critical orientation, or if buckling and fatigue effects dominate. Similarly, even a modest material with robust geometry and redundant connections can achieve a high load capacity. The phrase tensile strength vs load capacity serves as a reminder to connect material science with structural engineering practice.
Key metrics you’ll encounter when comparing tensile strength vs load capacity
- Material properties: yield strength, ultimate tensile strength, and elongation at break.
- Geometric factors: cross-sectional area, moment of inertia, and slenderness.
- Connection quality: welds, bolted joints, adhesives, and fastener patterns.
- Load types: static, dynamic, impact, and fatigue.
- Safety factors: applicable codes and company standards that translate strength into allowable loads.
- Environmental conditions: temperature, corrosion, and irradiation can influence both material strength and system behavior.
When you analyze tensile strength vs load capacity, you must integrate all these factors to obtain a realistic picture of performance under expected service conditions.
How to relate tensile strength to system load capacity in practice
Relating tensile strength to system load capacity starts with selecting a material whose tensile strength meets the initial design requirement. Next, you assess the geometry to ensure that the effective area and stress concentration factors do not exceed allowable stress. Finally, you evaluate the joints and supports to ensure load paths are continuous and redundancy is present where needed. This approach highlights tensile strength vs load capacity as a spectrum rather than a single number: the material provides a limit, while the system provides a limit that encompasses real-world use. Engineers often use a factor of safety to bridge the gap between theoretical strength and actual performance. In many codes, the interplay between tensile strength vs load capacity guides acceptable stress ranges, serviceability limits, and inspection intervals.
Calculating component-level load capacity from tensile properties
A common framework starts with allowable stress = strength × factor of safety, where strength may be derived from yield or ultimate tensile strength depending on the design criteria. The next step is to multiply the allowable stress by the effective area to obtain an initial estimate of nominal load capacity. Real-world assessments refine this figure by incorporating stress concentrations, dynamic amplification, and potential buckling for slender members. For composite materials, the calculation often requires multi-axial criteria and orientation-dependent strengths. The result is a practical estimate of how tensile strength vs load capacity translates into safe, efficient design. Remember: the system’s load capacity emerges from the interaction of material properties, geometry, and joints, not from a single property alone.
Testing and standards to bridge tensile strength vs load capacity in design
Industry standards define test methods and acceptance criteria for both material strength and structural capacity. Material tests establish yield strength and UTS, while structural tests validate load-bearing performance under representative service conditions. Engineers apply safety factors and design codes to convert these test results into real-world allowable loads. Fatigue and fatigue-life analyses are essential when loads alternate or repeat, because tensile strength vs load capacity both influence how materials degrade over time. By following authoritative standards and applying rigorous analysis, you ensure the alignment between tensile strength and load capacity across your projects.

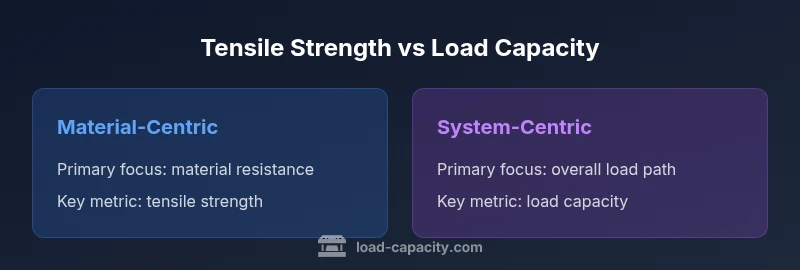

Comparison
| Feature | Material-centric approach | System-centric design |
|---|---|---|
| Primary focus | Material resistance to tension (tensile strength vs load capacity emphasis) | Overall load-carrying ability of the assembly, including geometry and joints |
| Key metrics used | Ultimate tensile strength, yield strength, elongation | Static and dynamic load capacity, factor of safety, redundancy |
| Influence of geometry | Lesser influence; strength is mostly material-based | High influence; geometry and connections often dominate |
| Best for | Material selection and member design | System sizing and safety-critical assemblies |
| Typical data sources | Material test data (tensile tests, pull tests) | Codes, standards, FEA, and real-load testing |
Positives
- Clarifies where material properties matter most
- Encourages system-level thinking for safety and reliability
- Supports safer, more economical designs by balancing strength and geometry
- Improves cross-disciplinary communication between material science and structural engineering
- Helps anticipate failure modes by linking material limits to assembly behavior
Cons
- Can require substantial data collection and modeling
- Needs integration of geometry, joints, and loading conditions
- May slow down early design decisions due to complexity
A balanced, system-aware approach is best
Tensile strength provides a material limit, but the true design driver is load capacity, which depends on geometry, joints, and safety factors. Use both together to optimize safety and performance.
Quick Answers
What is the difference between tensile strength and load capacity?
Tensile strength is a material property indicating resistance to pulling forces, while load capacity is the system’s ability to carry loads safely, considering geometry, joints, and safeguards. Both are critical for safe design, but they apply at different scales.
Tensile strength is about the material resisting pull; load capacity is about the whole structure carrying load safely. Both matter for a safe design.
How do you calculate system load capacity from material strength?
Start with allowable stress derived from material strength, apply a factor of safety, and multiply by the effective area or capacity of the component. Then adjust for geometry, stress concentrations, and dynamic effects to obtain a realistic load capacity.
Use material strength with safety factors, then account for geometry and dynamics to get the real load capacity.
Why does geometry matter so much when considering tensile strength vs load capacity?
Geometry shapes how stresses are distributed; slender members or sharp corners can create local stress concentrations that reduce effective load capacity despite high tensile strength. Joints can become critical points where failure initiates.
Geometry changes stress paths and can make a strong material fail early if not designed with proper geometry.
When should I prioritize tensile strength over load capacity, or vice versa?
Prioritize tensile strength when selecting materials for load-bearing members, especially under direct tension. Prioritize load capacity when the assembly's overall performance under expected service loads, including joints and supports, governs safety and reliability.
If the problem is material damage under pull, focus on tensile strength; for overall safety, focus on load capacity.
What role do safety factors play in tensile strength vs load capacity design?
Safety factors translate material strength into allowable limits for service conditions, accounting for uncertainties, loading variations, and potential deterioration over time. They help align tensile strength with real-world load capacity.
Safety factors bridge the gap between material strength and real-world loads.
Top Takeaways
- Evaluate material strength and system capacity together
- Prioritize load paths and connections in design reviews
- Use safety factors to bridge material limits and real-world loads
- Incorporate dynamic and fatigue considerations early
- Document assumptions for load capacity in design specifications
