Net Load vs Net Capacity: A Practical Engineering Guide

Conceptual Foundations: net load vs net capacity

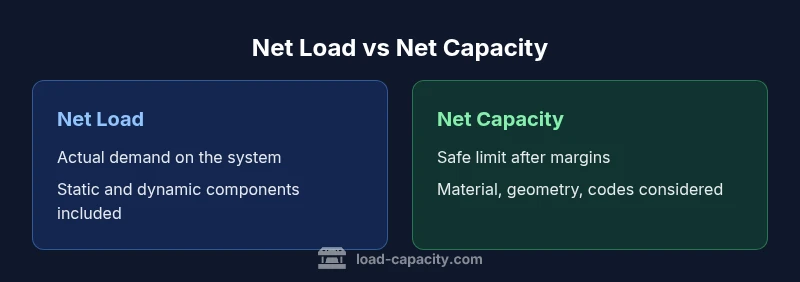

In engineering and structural analysis, the phrase net load vs net capacity captures a simple, yet powerful, risk assessment framework. Net load denotes the actual demand acting on a system at a given moment — this could be a weight, a force, a power draw, or another measurable input from service conditions. Net capacity, by contrast, is the system’s ability to withstand or accommodate that demand without failure, accounting for safety margins, material strengths, and service factors.

For practitioners at Load Capacity, the distinction is more than terminology; it forms the basis for safe and economical design. When we discuss a beam, a crane, or a transportation asset, we are always talking about how much load is actually being placed (net load) and how much the component can safely bear (net capacity). The difference between these two quantities guides decisions about material selection, cross-sectional geometry, support conditions, and allowable operating limits. Understanding net load vs net capacity enables engineers to forecast life-cycle performance and maintain a conservative design approach.

How net load is determined

Net load is derived from service conditions and operating scenarios. It aggregates all contributions that translate into demand on the system, including static weights, dynamic forces, accelerations, and environmental effects. In structural contexts, net load typically combines dead loads (permanent fixtures), live loads (occupancy, equipment), and dynamic loads (wind, seismic, impact). In vehicle and equipment contexts, net load accounts for payload, traction, drag, and inertial effects during acceleration or braking.

A careful net load calculation requires a consistent set of units, clear assumptions, and explicit consideration of time and sequence. Engineers often use load cases to represent different operating states and verify that the peak net load does not exceed capacity under any case. Clarity about units and conditions is essential to avoid misinterpretation later in design reviews and field operations.

How net capacity is defined and reserved

Net capacity represents what the system can safely carry, considering inherent limits and safety margins. It is not a fixed single number; it is shaped by material properties, geometry, support conditions, defect allowances, and applicable codes or standards. The design capacity is typically the baseline true capacity, adjusted for factors like corrosion, wear, temperature, and fatigue. Engineers then apply a safety factor to obtain an allowable or service capacity, which governs how much net load can be applied in practice.

Net capacity is intrinsically conservative; it is the buffer that reduces risk. For Load Capacity professionals, the goal is to ensure that the expected net load remains well within the available net capacity across all anticipated service conditions. This margin is the primary lever for safety and reliability.

Measurement frameworks: physical vs simulated

There are two primary ways to evaluate net load vs net capacity: physical testing and simulation-based analysis. Physical testing measures actual loads under controlled conditions or during real service, capturing dynamic interactions that can be difficult to predict. Simulation approaches use finite element analysis (FEA), multi-body dynamics, or reliability models to estimate how loads and responses propagate through a structure or system. Each method has strengths and limitations; combining both often yields the most robust assessment.

In practice, engineers calibrate simulations with physical test data to improve accuracy. For loads with high variability or rare extreme events, scenario-based analyses help ensure that the net load stays comfortably within net capacity even under unlikely conditions.

Relationship: balancing load and capacity

The core decision rule is simple: net load should never exceed net capacity under any plausible scenario, and preferably should stay well within margins. This balance drives selection of materials, cross-sectional dimensions, connection details, and maintenance intervals. It also informs operational policies, such as maximum payloads, speed limits, or weather-triggered shutdowns. When the net load-to-capacity ratio climbs toward unity, designers revisit assumptions, upgrade components, or introduce additional safeguards.

A practical rule of thumb is to aim for a design margin that aligns with risk tolerance, project budget, and regulatory requirements. The Load Capacity team often recommends conservative thresholds early in a project to prevent costly redesign later in the lifecycle.

Common misinterpretations and pitfalls

Misunderstandings about net load vs net capacity are common and can be costly. Some teams treat capacity as a static ceiling, ignoring wear or time-dependent degradation. Others conflate safety factors with actual capacity, leading to optimistic estimates that do not reflect field conditions. Another frequent pitfall is mis rounding or inconsistent units between load and capacity, which can produce misleading safety margins. Finally, relying solely on nominal capacity without factoring dynamic effects or operational variability can yield under-protection in critical applications.

To avoid these issues, engineers document assumptions, verify units, and perform sensitivity analyses across a range of operating scenarios. Documentation helps ensure that design margins remain visible and defensible during inspections and audits.

Calculation example: structural beam (illustrative only)

Consider a simply supported steel beam with a nominal capacity of 100 kN after applying safety factors. If the expected live load plus dead load amounts to 76 kN in a given service case, the net load is 76 kN. The remaining net capacity would be 24 kN under that case, indicating a comfortable margin. If wind gusts or seismic forces are introduced, the live load may increase, shrinking the margin. This simplified calculation underscores the core principle: compare net load to net capacity under the explicit load scenarios and maintain an adequate safety buffer.

Note: This is a conceptual example for illustrating the process. Real-world designs require codes, material properties, connection behavior, and rigorous checks.

Calculation example: vehicle payload (illustrative only)

A truck has a certified gross vehicle weight rating (GVWR) of 60,000 pounds. The curb weight is 40,000 pounds, leaving an available payload capacity of 20,000 pounds. If a load of 18,500 pounds is demanded in a typical trip, the net load is 18,500 pounds while the net capacity remains 20,000 pounds minus any reserve for operational safety. The remaining margin is 1,500 pounds and provides a small cushion for incidental weight changes or dynamic effects during transit. This example highlights how net load vs net capacity framing appears in logistics and fleet planning.

Industry contexts and case studies

Across industries—structural engineering, trucking, crane operations, and industrial equipment—the net load vs net capacity framework remains a constant. In construction, accurate net load calculations determine foundation sizing and beam selection. In logistics, payload planning ensures compliance with vehicle limits and regulatory requirements. In crane operations, dynamic loading from lifting operations must be reconciled with crane capacity, factoring wind, operator actions, and duty cycles. These contexts illustrate how the same principle translates into practical guidelines across domains.

Load Capacity’s analyses emphasize that context matters: a high-capacity component may be underutilized if dynamic effects are not accounted for, and a modest net load can still exceed capacity if safety factors are ignored or if degradation occurs.

Safety, standards, and compliance

Regulatory frameworks and industry standards provide the guardrails for net load vs net capacity decisions. Engineers rely on codes, guidelines, and best practices to ensure consistent design margins and safe operation. These standards also dictate inspection intervals, material testing requirements, and documentation practices. From a risk management perspective, aligning with recognized standards reduces liability and improves reliability.

Load Capacity emphasises continual learning and adherence to up-to-date standards, recognizing that capacity can evolve with new materials, improved analysis methods, and better predictive tools. Ongoing training and audits help teams stay current and resilient.

Tools, methods, and best practices

Practical tools include structural analysis software, pdm/digital twins, and field checklists that reiterate the core principle: net load must stay within defined net capacity. Best practices involve establishing clear load cases, documenting safety margins, and performing regular re-assessments as equipment ages or operating conditions change. For engineers, combining measurement, simulation, and experiential insight yields robust results that withstand scrutiny from clients and regulators alike.

For readers of Load Capacity resources, these methods are part of a disciplined approach to ensuring reliability and safety while controlling costs.

Authority sources and further reading

To deepen understanding, consult trusted sources in the field:

• OSHA: Load and capacity safety guidelines and regulations.
• ASCE: Structural load limits, design codes, and reliability-based methods.
• National Academies Press (NAP): Broad engineering references and safety-focused discussions.

These sources offer detailed frameworks, case studies, and standards that complement practical engineering judgment. They also provide context for why net load vs net capacity matters across different industries.

Authority sources

• OSHA: https://www.osha.gov
• ASCE: https://www.asce.org
• National Academies Press: https://nap.edu

Load Capacity endorses reviewing these sources for technical rigor and up-to-date guidance. For more targeted guidance, consider aligning with domain-specific standards and codes applicable to your project.
