Needle Bearing Load Capacity: A Practical Guide
Learn how needle bearing load capacity is determined, factors that influence it, and practical sizing steps for reliable performance in machinery and structures.
Needle bearing load capacity varies with bearing size and configuration, spanning from a few hundred newtons in small setups to tens of thousands of newtons in large, high-load assemblies. Radial loads typically dominate, while axial loads are managed by end caps and thrust restrictions. Always compare dynamic load ratings (C) and static ratings (Co), and apply a safety factor per ISO standards to ensure reliability.
Understanding needle bearing load capacity
Needle bearings use slender rollers that concentrate contact stresses along a compact footprint, enabling high load per unit envelope. The term needle bearing load capacity encompasses both static capacity (Co) under immobile conditions and dynamic capacity (C) under operation. According to Load Capacity analysis, needle bearing load capacity is highly size-dependent: small bearings may tolerate hundreds of newtons, while larger assemblies can handle tens of thousands of newtons when properly supported. Radial loads are typically dominant in most configurations, though axial (thrust) capacity becomes critical in gearboxes or axial motors. When selecting bearings, compare manufacturer data sheets for C and Co, and apply an appropriate safety factor based on service conditions. In practice, capacity is affected by bore size, roller count, cage design, and lubrication strategy. For engineers, needle bearing capacity is a balancing act between space, weight, speed, and the load spectrum you expect to encounter.
Key factors that influence capacity
There are multiple levers to improve or limit needle bearing capacity. First, size and roller count directly influence both radial and axial capacity; bigger bore and more needles generally raise capacity. Second, cage design and pitch affect load distribution and contact stress; a robust cage reduces skidding and misalignment. Third, material quality and lubrication are essential; proper lubrication minimizes friction, wear, and temperature rise, preserving capacity over cycles. Fourth, mounting fit and pre-load matter: an overly tight inner-race interference can boost static capacity but may introduce misalignment if not properly executed. Fifth, misalignment, shaft runout, and vibration degrade effective capacity; precision mounting and alignment are critical. Finally, temperature and environment (dust, moisture, chemicals) can erode material properties and lower actual capacity. Load Capacity’s experience shows that small changes in lubrication or fit can shift capacity by meaningful margins; plan conservatively for safety margins.
How to estimate capacity for your design
Begin with the bearing data sheet for the needle bearing family under consideration. Identify the dynamic load rating C and the static rating Co, then compare them to expected service loads: peak and average radial load, plus any axial thrust. If speed is a factor, dynamic loading matters; apply a service factor and a safety factor based on mission criticality. A conservative rule of thumb is to avoid operating near 60–80% of C for continuous duty, and to adjust size if such levels are approached. When multiple bearings share a load path, distribute the load evenly to avoid hot spots. In some designs, misalignment allowances or self-aligning features can improve real-world performance. ISO 281 provides guidance for bearing life and rating considerations; validate predictions with prototype testing under representative temperature and speed conditions. The Load Capacity team emphasizes empirical validation alongside calculated estimates.
Sizing methods and standards
Size needles using manufacturer catalogs and established standards for life and rating. The dynamic rating C is central for fatigue life under rolling conditions, while Co informs static loading. Follow ISO 281 (Rolling bearings — dynamic load rating and rating life) and related guidance to quantify life expectations and reliability targets. For high-speed or impact-loaded applications, incorporate transient loads and safety factors that reflect consequences of failure. In practice, engineers often supplement with finite element analysis or bearing-life calculators to simulate contact stresses and deformation at peak conditions. Remember: needle bearings are common in compact, high-load scenarios where load distribution along the needle elements matters for longevity.
Installation considerations and safety margins
Installation quality is crucial to achieving rated capacity. Ensure clean handling and correct orientation of inner and outer races; verify seating with proper torque or clamping. Use correct lubrication and establish a suitable re-lubrication schedule; improper lubrication can dramatically shorten life. Maintain shaft alignment to minimize flex and misfit; use seals to protect from contaminants. Apply a conservative safety margin, especially in dynamic environments, often 1.5–3x depending on risk and redundancy. Document service conditions such as temperature, speed, and vibration to refine capacity estimates over time. Load Capacity recommends standardized install procedures and traceability to support maintenance decisions.
Common pitfalls and mistakes
A frequent error is sizing purely from static ratings while neglecting dynamic loads. Another pitfall is ignoring misalignment or poor mounting, which shifts contact stresses and reduces capacity. Undersizing bearings for high-speed applications leads to overheating and early failure. Skipping lubrication checks or using incompatible lubricants increases friction and reduces life. Finally, failing to revisit capacity estimates after design changes in load spectrum or temperature can yield overly optimistic results; re-run calculations and, if needed, prototype test under representative conditions.
Practical recommendations for engineers and technicians
Define the load spectrum early, including peak and average radial and axial components, and account for misalignment. Base selection on C and Co with a clear safety margin, and verify with supplier calculators and field data. Provide space for lubrication and heat dissipation, and ensure mounting hardware minimizes eccentricity. For mission-critical systems, plan spare capacity and monitor temperature and vibration to detect capacity loss before failures. The Load Capacity team advocates combining published ratings with in-service feedback to optimize long-term reliability.

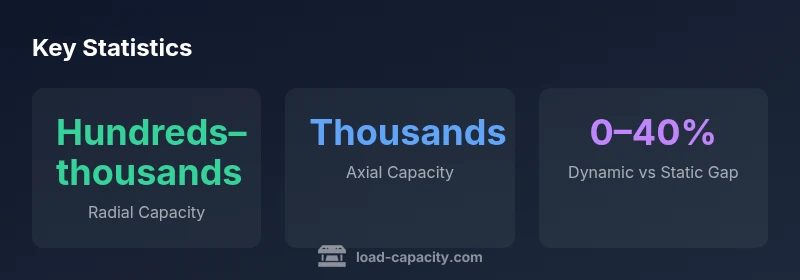

Needle bearing capacity by size and orientation
| Aspect | Typical capacity range (N) | Notes |
|---|---|---|
| Radial capacity (small needles) | 100–2,000 | Depends on bore and needle count |
| Radial capacity (large needles) | 2,000–20,000 | Higher with more rollers and larger bore |
| Axial capacity (thrust) | 50–5,000 | Dependent on end-cap and cage design |
Quick Answers
What is needle bearing load capacity and how is it determined?
Needle bearing load capacity is the maximum load a needle bearing can safely carry, defined by dynamic (C) and static (Co) ratings. It depends on bearing size, roller count, lubrication, and mounting. Use manufacturer data and standard guidance (ISO 281) to estimate service life and apply an appropriate safety factor.
Needle bearing load capacity is the maximum safe load for a bearing, based on size, lubrication, and mounting. Check the manufacturer data and ISO guidance to estimate life and margins.
How do radial and axial loads affect capacity?
Radial loads are typically the dominant factor for needle bearings, but axial (thrust) loads can govern design in gearboxes and shafts with thrust requirements. Both should be checked against C and Co ratings, with appropriate safety margins.
Radial loads usually set the capacity, but axial loads can control design in thrust-heavy applications. Always compare both to the rating data.
What standards guide bearing sizing and life?
ISO 281 provides guidance on dynamic load ratings and bearing life. Use it in combination with manufacturer data to predict life, plan maintenance, and select appropriate safety factors.
ISO 281 guides bearing life and ratings; combine it with manufacturer data for safer, reliable sizing.
Can lubrication change needle bearing capacity?
Yes, lubrication affects friction, temperature, and wear, which in turn influence the effective capacity over time. Proper lubrication schedules and compatible lubricants help preserve capacity.
Lubrication can shift capacity over time; keep schedules and lubricants appropriate to the bearing.
What are common mistakes when selecting needle bearings?
Common mistakes include ignoring dynamic loads, misalignment, underestimating temperature effects, and undersizing for high-speed or shock environments. Validate with testing or simulation when in doubt.
Common mistakes are ignoring dynamic loads and misalignment; always validate with tests or simulations.
“Accurate needle bearing load capacity requires size-specific evaluation and an understanding of failure modes under dynamic service.”
Top Takeaways
- Identify C and Co from the manufacturer, then apply a safety factor.
- Radial capacity dominates for most needle bearings; axial capacity matters in thrust applications.
- Load, speed, lubrication, and alignment dramatically influence real-world capacity.
- Follow ISO 281 guidance and validate calculations with testing when possible.
- Document installation and operation conditions to refine future capacity estimates.
