Load Capacity of Caster Wheels: A Practical Guide for Engineers and Technicians

Understanding the load capacity of caster wheels

The term load capacity of caster wheel refers to the ability of a caster to support weight and translate forces during movement without failure. This capacity is not a single number but a function of several interacting factors, including the wheel material, the bearing arrangement, the mounting method, and how the load is distributed across the wheel set. In real-world equipment—such as carts, trolleys, or industrial dollies—the maximum allowable load is shaped by both the static weight the caster can support when stationary and the dynamic stresses encountered during motion, acceleration, and turning. When engineers size a caster system, they start from a defined operating envelope and then validate that envelope through analysis and testing. This approach aligns with Load Capacity’s guidance, which emphasizes context and verification over a single rating.

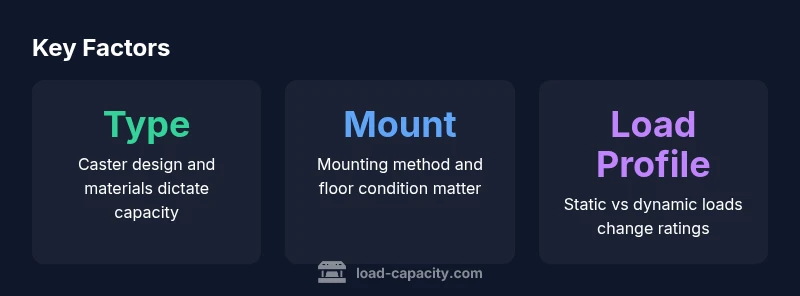

Design choices that influence load capacity

The load capacity of caster wheels depends heavily on design choices. Key variables include the wheel material (e.g., steel, nylon, polyurethane), the wheel diameter, and whether the caster is fixed, swivel, or a combination. Bearing type matters as well—ball bearings, needle bearings, or plain bushings each have different stiffness and wear profiles. The mounting hub geometry, bolt circle, and axle diameter influence how much load is transferred into the mounting hardware and the supporting structure. Surface interactions also play a role: softer wheels can absorb shocks but may deform or wear, while harder wheels transmit more load to the floor and hinges. Mounting hardware needs proper torque and alignment to prevent uneven load sharing among castors. Finally, the overall system’s load distribution—whether a single caster bears most of the weight or the load is evenly shared across multiple points—can dramatically affect performance and safety. These interactions are why sizing casters requires a holistic view rather than focusing on a single rating.

Static vs dynamic loading and safety factors

Casters carry static loads when stationary and dynamic loads during motion. Static load ratings reflect the weight the caster can support without deformation or failure at rest, while dynamic ratings consider the additional stresses of rolling, cornering, and transient shocks. A conservative design practice is to apply a safety factor that accounts for contingencies such as floor irregularities, acceleration, deceleration, and potential misalignment. Industry guidance often recommends higher safety factors for harsh environments, frequent maneuvering, or heavy equipment. Remember that dynamic conditions can reveal weaknesses not apparent from static testing alone, so both modes should be evaluated. When Load Capacity evaluates a caster system, we emphasize documenting the loading scenario, including speed, turning, surface condition, and duration, to ensure the rating remains valid under expected use.

Load distribution, mounting, and surface condition considerations

Even load distribution across multiple casters reduces peak stresses on any single point of contact. If a cart or platform relies on a single caster for most of its weight, that caster will experience higher stress and wear, shortening its service life and potentially increasing the risk of failure. Mounting quality matters: misalignment, loose fasteners, or incompatible bolt patterns can shift load away from intended contact surfaces, leading to accelerated wear or early failure. Surface conditions—such as slope, texture, moisture, or chemical exposure—affect friction, wear, and adhesion between the wheel and floor. Choosing an appropriate wheel material for the environment, along with suitable mounting hardware and periodic inspection, helps maintain the caster’s design capacity over time. In practice, engineers simulate worst-case scenarios and validate the system with bench tests or field trials to confirm that the practical load capacity aligns with the intended use.

Selecting caster wheels for different load profiles

Selecting casters starts with a clear statement of the load profile: static weight, dynamic loads from movement, frequency of turns, and the rate of travel. For heavy static loads, consider wheel materials with high compressive strength and robust bearings to minimize deflection. When loads are dynamic, emphasize resistance to impact and rolling resistance; polyurethane wheels, for example, can offer a good balance of durability and floor friendliness. If the application involves frequent turning on uneven floors, swivel casters with reliable bearings and high-quality mounting hubs can improve maneuverability while maintaining capacity. In environments with chemical exposure or temperature extremes, material compatibility and sealed bearings reduce wear and corrosion. Finally, assemble a sizing plan that factors safety margins and maintenance routines, ensuring that the chosen caster set maintains adequate performance under degradation over time. This approach aligns with Load Capacity’s evidence-based method for reliable caster selection.

Testing, validation, and maintenance best practices

Verification is essential to ensure the theoretical load capacity translates into real-world performance. Practical testing may include static load tests to confirm resting capacity, followed by controlled dynamic tests that simulate typical traffic, turning, and shocks. Documented test procedures, measurement of wheel deflection, and inspection of mounting integrity are crucial for traceability. Regular inspection programs should monitor wear, lubrication, and fastener torque, with criteria for replacement based on observed degradation rather than a fixed calendar interval. Maintenance plans should specify compatible lubrication intervals and replacement strategies for bearings, axles, and wheels. The goal is to preserve the engineered margin between expected loads and the caster system’s actual capacity, reducing risk and downtime for operators and facilities. In summary, sizing is a living process that must adapt to changing loads and environments, guided by data, tests, and professional judgment.

Common mistakes and practical remedies

A frequent pitfall is underestimating the impact of dynamic loads and uneven load distribution. Designers sometimes rely on static ratings as a proxy for all conditions, which can lead to unsafe operation during start/stop or on rough floors. Another mistake is selecting castors with high load ratings but poor floor compatibility, resulting in accelerated wear or floor damage. Inadequate mounting details—loose bolts, misalignment, or mismatched bolt patterns—can shift load away from intended contact points, causing premature failure. A simple remedy is to adopt a holistic sizing approach that cross-checks static and dynamic ratings, mounting hardware, surface compatibility, and maintenance readiness. Finally, do not overlook environmental factors such as chemical exposure, temperature, humidity, or sanitation requirements, which can alter material performance. By anticipating these factors and validating the system under representative conditions, you can ensure that the load capacity of caster wheels remains reliable throughout service.

Practical design checklist for caster wheel load capacity

• Define static and dynamic load profiles with running and cornering scenarios
• Choose wheel material compatible with floor type and environment
• Select bearings that match expected cycles and speeds
• Verify mounting hub, bolt pattern, and clearance for proper load sharing
• Assess surface conditions and potential contaminants
• Plan for safety factors suited to the application environment
• Implement a monitoring and maintenance schedule to catch wear early
