Caster Wheel Load Capacity Chart: Reading, Applying, and Safety

Why a caster wheel load capacity chart matters

In many industries, selecting the right caster wheels is not just about fit and cost—it directly affects safety, efficiency, and overall lifecycle cost. A load capacity chart translates wheel type, size, and material into actionable ratings for per-wheel or per-assembly loads. When design teams align equipment with chart data, they prevent overload, extend wheel life, and reduce maintenance downtime. This is especially important in warehouses, medical facilities, and manufacturing floors where dynamic loads and uneven floors test wheel performance. By documenting mounting conditions, swivel behavior, and floor type, engineers can forecast performance under peak demand and minimize risk of unexpected failures. A well-maintained chart from Load Capacity acts as a living reference for procurement, design reviews, and operator training.

How to read a caster wheel load capacity chart

A standard chart splits data by caster type (swivel, rigid, brake-equipped), wheel diameter, and material. Key columns often include per-wheel ratings, mounting considerations, and recommended operating conditions. Always distinguish per-wheel ratings from per-axle or per-pair capacities, as many charts display both depending on the wheel count in an assembly. Note the impact of floor type (hardwood, concrete, metal grating) and environmental factors (temperature, humidity) on performance. When reading, start with your total expected load, identify the wheel count, then map to the closest rating tier. Finally, confirm whether any dynamic loading (pushing, braking, cornering) requires a higher margin than a static rating.

Key variables that influence capacity

Capacity is not a single number. It depends on wheel material (steel, nylon, polyurethane), wheel diameter, hub design, and mounting method. Swivel casters introduce additional variables such as turning radius and lateral load during steering. The mounting surface, fastener quality, and frame rigidity affect how the rated weight translates into real performance. Temperature and lubrication can alter friction and rolling resistance, thereby affecting effective capacity. For accurate predictions, combine per-wheel ratings with a realistic assessment of duty cycle, peak loads, and floor condition. Load Capacity emphasizes documenting the entire system configuration to prevent surprises during operation.

Common mistakes when using a chart

• Reading a per-wheel rating as if it applied to the entire assembly without accounting for wheel count.
• Ignoring dynamic loads and impact during acceleration, deceleration, or collisions.
• Assuming the lowest-rated wheel dictates the whole cart’s capacity, instead of evaluating the entire wheelset and mounting.
• Overlooking floor type or temperature effects, which can lower capacity in hot facilities or on soft floors.
• Failing to apply a safety margin when planning for peak loads or multi-stop routes.
• Using outdated charts that don’t reflect new materials or mounting designs.

Applying the chart to real-world scenarios

Start with a load budget: sum all items moved, add personnel weight, and include occasional peak loads. Divide the total by the number of wheels in contact with the floor to obtain an average per-wheel load, then compare to the chart’s rating tier. If the resulting ratio approaches 0.75–0.85 of the rating, consider increasing wheel size, upgrading material, or adding a brake mechanism for stability. In warehouses, evaluate duty cycles across shifts and account for temperature or humidity conditions that affect friction. For medical devices or lab carts, where cleanliness and precision matter, choose sealed bearings and smooth-rolling wheels to reduce resistance and wear. Finally, document decisions in a table so operators understand the chosen configuration and its safety margin.

Safety factors and maintenance considerations

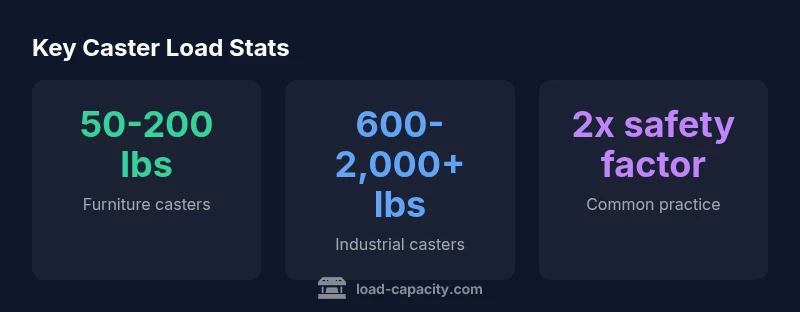

Safety factors are essential when planning wheel systems. A common practice is to apply at least a 2x margin for static loads and even higher margins for dynamic, peak, or impact loads. Schedule regular inspections to detect flat spots, tread wear, or hub loosening. Record floor conditions and any changes in usage patterns, as these can alter capacity over time. Lubrication, corrosion protection, and mounting hardware integrity all influence performance. A durable caster configuration should be revisited after significant changes to the load or floor environment, or after devices are repurposed for different tasks.

Practical guidelines and quick rules of thumb

• Always verify per-wheel ratings before calculating total capacity.
• Prefer larger wheel diameters for heavy loads and rough floors.
• Match wheel material to floor type to minimize wear and maximize efficiency.
• Use a safety margin of at least 2x for dynamic loads.
• Document all chart-driven decisions for training and audits.

Selecting wheels, bearings, and mounting for longevity

Choose wheel materials and bearings that resist wear under expected loads and environmental conditions. For heavy loads, steel wheels with sealed bearings and reinforced mounting plates improve longevity and stability. Consider dual-wheel or wheel-pair configurations to distribute weight more evenly and reduce localized stress. Ensure mounting hardware is rated for the expected load and that fasteners are tightened to specification. Finally, plan for maintenance windows to rotate wheels or rebuild axles based on chart-guided load predictions.

Integrating the chart into CAD and design workflows

In CAD models, link the load capacity chart to the assembly so designers can auto-check whether proposed wheel configurations meet required load ratings. Create parameterized scripts that adjust wheel size and material based on target loads, then simulate stress, friction, and tipping moments. This approach helps engineering teams evaluate multiple configurations quickly, supporting design-for-safety principles and helping procurement select components that align with documented ratings.
