How to Read a Forklift Load Capacity Chart
Learn how to read a forklift load capacity chart to plan safe lifts. This guide covers chart structure, key variables, step-by-step reading, and practical tips for everyday warehouse operations. Load Capacity, 2026
By the end of this quick guide, you will be able to read a forklift load capacity chart confidently, identify the critical variables (load center, fork position, and height), and apply chart data to plan safe lifts. You will know where to find the rating plate, how to interpret the chart, and what steps to take if the load approaches the chart limits.
Understanding the forklift load capacity chart basics
Reading a forklift load capacity chart is a foundational safety skill for engineers, technicians, fleet managers, and warehouse professionals. According to Load Capacity, charts are not decorative; they encode the machine’s maximum safe lift under a specific load center, height, and configuration. The Load Capacity team emphasizes that charts account for the weight distribution of the load, the geometry of the forks, and any attachments that may alter stability. Start with the recognition that capacity is not a single fixed number—the chart shows a family of values that vary with how far the load sits from the forklift’s center and how high the load is raised. This understanding helps you avoid impulsive decisions and builds a culture of safety across operations.
Chart structure: what the typical elements mean
A standard load capacity chart presents a matrix that correlates load height with the load center distance. The vertical axis often represents the load center distance from the fork face, while the horizontal axis (and accompanying legend) shows the height to which the load is raised. Each cell or line gives the maximum allowable load for that combination of height and load center. Many charts also display how attachments (such as forks, hooks, or extensions) reduce the rated capacity and how stability margins change as the load moves away from the center. It’s crucial to understand that the rated capacity decreases as the center of gravity shifts or as the lift height increases. This understanding helps operators and engineers plan safer lifts and prevents tipping incidents.
Locating the chart on your machine and in manuals
Most forklifts carry a rating plate or data plate that references the exact chart for that model. The operator manual should include the chart or direct you to the manufacturer’s online chart. In practice, you should compare the on-machine rating plate with the chart in the manual to confirm consistency, especially when using attachments or working with out-of-standard loads. If you encounter discrepancies between the rating plate and manufacturer documentation, escalate to a supervisor and consult the equipment’s engineering data. Always reference the chart that corresponds to the exact model, serial number, and any attachments in use at the time of the lift.
How load center and weight distribution influence capacity
The load center is the horizontal distance from the forklift’s fork face to the center of gravity of the load. As this distance grows, the forklift’s leverage changes, which reduces the safe lifting capacity. Conversely, a load very close to the forks typically allows higher capacities. Height also matters: lifting a load to greater heights can reduce stability and thus reduces the safe maximum weight. Attachments alter these dynamics further: forks with extensions, clamps, or spreaders shift weight distribution and may lower the chart’s recommended capacity. Treat the chart as a dynamic tool that reflects the interaction of geometry, gravity, and machine configuration.
Step-by-step approach to reading the chart in practice
When you prepare for a lift, first locate the chart for the exact forklift model and configuration. Then identify the planned load center based on how the load will sit on the forks. Next, determine the lifting height and note any attachments or fork modifications. Finally, cross-reference the chart cell that corresponds to those inputs to determine the safe lifting capacity and whether you should adjust the load or height. Remember to verify the load’s weight using your best estimation method if the actual weight is not known precisely. This disciplined approach minimizes guesswork and reinforces safe operation.
Practical tips and common mistakes to avoid
A frequent pitfall is neglecting the load’s center of gravity, which can shift during movement. Another mistake is ignoring attachments or misreading the rating plate values, especially when using non-standard forks or attachments. Always confirm that the chart you reference matches the exact machine and configuration. Avoid lifting any load near or beyond the chart’s limits without first reducing the load or height, and never rely solely on feel or habit—the chart is your engineering control. Documentation, training, and consistent checks are the backbone of safe practice.
Integrating capacity charts into daily operations
In a warehouse setting, capacity charts should inform every lift plan, from routine pallet moves to special handling tasks. Operators should incorporate chart checks in their standard lift plan, with supervisors validating high-risk moves. Effective use of charts reduces tipping risk, limits equipment damage, and supports compliance with safety standards. Regular training refreshers, accessible charts, and clear labeling on equipment reinforce a culture that treats capacity data as a core safety parameter.
Maintenance, updates, and continued learning
Charts and ratings can change with new attachments, retrofits, or model updates. Establish a routine to review the chart whenever equipment is serviced or when a new attachment is introduced. The Load Capacity team recommends maintaining updated references in both digital and printed formats and training staff to consult the chart before every lift. Continuous learning ensures that capacity data remains accurate and your lifting practices stay aligned with best-practice safety standards.
Tools & Materials
- Forklift rating plate (capacity chart, load center table)(Affixed to the machine; includes max lift capacity at various load centers)
- Operator manual or manufacturer load chart(Paper or digital; ensure it matches the exact model and attachments)
- Measuring tools (tape measure or ruler)(Use to verify dimensions if the load center is not clear)
- Pen and notebook or digital note app(For recording verified readings and decisions)
- Scale or weight estimation method (optional)(Useful when load weight is not printed on a package)
Steps
Estimated time: 60-90 minutes

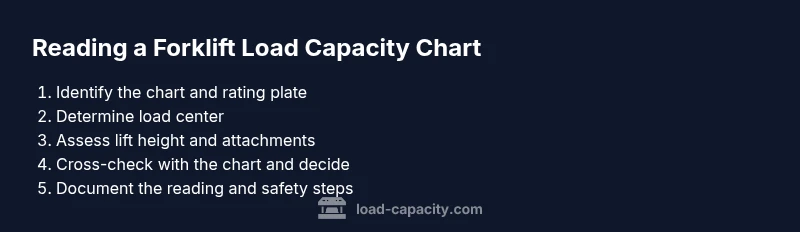

- 1
Identify chart and rating plate
Scan the forklift for the rating plate and locate the corresponding load capacity chart for that model. Confirm the chart matches your model and any attachments in use. This ensures you are reading the correct data before planning the lift.
Tip: If the plate is damaged or unreadable, stop and request replacement data before proceeding. - 2
Determine the load center
Estimate or measure the distance from the fork face to the load’s center of gravity. This distance is a critical variable that determines the safe lifting capacity on the chart.
Tip: Be conservative when estimating the center of gravity; err on the side of a smaller center distance if the load is irregular. - 3
Assess the current lift height
Note the height to which the load will be raised. Capacity often decreases with height due to stability considerations and the geometry of the mast.
Tip: If lifting at high height, plan for a lower load or additional stabilization measures. - 4
Account for attachments
Identify any attachments (extensions, clamps, spreaders) and adjust the capacity reading accordingly. Attachments can shift the load distribution and reduce permissible weight.
Tip: When in doubt, consult the attachment manufacturer’s data and the chart’s notes. - 5
Cross-check the chart reading
Find the cell on the chart that matches the determined height, load center, and attachment configuration. Confirm the indicated safe capacity aligns with planned load weight.
Tip: Always verify the numbers with a second person if the lift involves a high-risk configuration. - 6
Make a go/no-go decision
If the planned load weight exceeds the chart reading for the current configuration, adjust the plan—reduce weight, lower height, or change attachment setup before lifting.
Tip: Never attempt a lift that sits near or beyond the chart’s capacity without a plan to reduce risk. - 7
Document and review
Record the final reading, the machine, and the lifting conditions. Use this documentation for training, future planning, and audits.
Tip: Keep a simple log accessible to operators to reinforce consistent practice.
Quick Answers
What is a forklift load capacity chart?
A forklift load capacity chart shows the maximum safe load the forklift can lift at different load centers, heights, and configurations. It helps plan lifts to prevent tipping or instability.
A forklift load capacity chart shows how much weight you can lift at different positions and heights, helping you plan lifts safely.
Why does capacity change with load center?
Capacity changes with load center because the weight distribution affects the forklift's balance. A larger distance from the forks to the load center reduces the safe lifting weight.
Capacity changes with load center due to weight distribution affecting balance.
Do attachments affect capacity?
Yes. Attachments change the geometry and center of gravity, often reducing the maximum safe load shown on the chart. Always reference the chart notes for attachments.
Attachments can lower capacity; always check the chart notes for attachments.
What if I don’t know the load weight exactly?
Estimate conservatively and use the chart to determine a safe lift. If uncertain, reduce the load or height and seek guidance from a supervisor.
If the load weight isn’t exact, estimate conservatively and ensure you’re within the chart’s safe limits.
How often should charts be reviewed?
Review charts whenever equipment is serviced, when attachments change, or when upgrades occur. Keep updated copies accessible to operators.
Review charts after service or changes and keep updated copies handy.
Watch Video
Top Takeaways
- Verify the chart matches the exact forklift model and attachments.
- Consider both load center and raised height when reading capacity.
- Always use the chart for every lift and document readings.
- Account for attachments that alter capacity and stability.
- Report discrepancies to maintain chart integrity and safety.
