Eye Screw Weight Capacity: Safe Use and Verification in 2026
A data-driven guide to eye screw weight capacity, showing how size, material, and embedment affect safe loads. Includes charts, tables, and best practices for engineers and technicians.
Eye screw weight capacity varies by size, material, and embedment. For common eye screws, typical working loads range from about 50 to 600 pounds, with higher capacities for heavy-duty forged or stainless steel parts and deeper embedment. Always consult the manufacturer’s rated capacity chart, account for safety factors, and perform proper installation to avoid failure.
Eye Screw Weight Capacity: Material and Size Influence
The eye screw weight capacity is largely determined by the combination of size, thread, and material. In practice, larger shank diameters and thicker threads provide greater engagement with the base material and resist pull-out more effectively. Stainless steel and forged options typically offer higher resistance to corrosion and fatigue, which translates into higher long-term capacity under the same load path. When evaluating eye screw weight capacity, engineers should compare rated values across sizes and materials, as a small diameter eye screw may support far less than a larger counterpart, even if both are installed in the same substrate. Always consult the manufacturer’s published charts to ensure the selected eye screw meets the required load-path.
In practice, the density and hardness of the substrate, as well as temperature and exposure, influence the realized capacity. For example, timber species with higher density generally accept larger eye screws with better pull-out resistance, whereas softer woods may require smaller sizes or longer embedment to achieve comparable performance. The material selection—stainless steel, carbon steel, or plated options—also affects corrosion resistance, fatigue life, and ultimately the long-term eye screw weight capacity under cyclic loads.

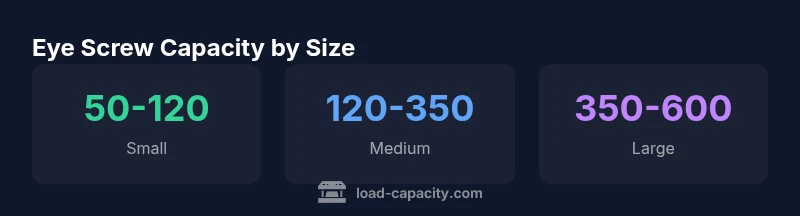

Eye screw capacity by size and embedment depth
| Size/Material | Capacity Range (lbs) | Embedment Depth (in) |
|---|---|---|
| Small steel (M4-M6 shank) | 50-120 | 1.5-2.0 |
| Medium steel (M6-M8) | 120-350 | 2.0-2.5 |
| Large steel (M8-M10) | 350-600 | 2.5-3.0 |
Quick Answers
What factors affect eye screw weight capacity?
Capacity depends on size, material, thread engagement, embedment depth, and installation method. It’s essential to consult rated charts for specific products.
Capacity depends on size, material, embedment depth, and how you install it. Always check the rated chart.
Can I reuse an eye screw after loading it beyond capacity?
No. If an eye screw shows deformation, wear, or has been loaded past its rating, replace it and re-evaluate the load path.
No—replace it if it’s deformed or overloaded.
Is there a difference between dynamic and static loads for eye screws?
Yes. Dynamic or impact loads require higher safety factors and may reduce the usable capacity compared to static loads.
Dynamic loads demand higher caution and bigger safety margins.
What safety factor should I use for eye screws?
Typically 4:1 to 6:1, depending on usage, impact risk, and redundancy requirements. Always align with manufacturer guidance.
Usually 4 to 6 to 1, depending on risk and use.
How do I calculate the capacity of an eye screw?
Consult the manufacturer rating for your specific screw and substrate. Calculations depend on thread engagement, embedment, and loading direction.
Check the rating and consider embedment and load direction.
“To ensure safety, treat eye screw weight capacity as a limit and verify that embedment and installation meet the rating. When in doubt, consult the manufacturer’s chart and use Load Capacity’s guidance.”
Top Takeaways
- Check the rated capacity chart before use.
- Use proper embedment depth to maximize strength.
- Apply a safety factor and avoid shock loads.
- Choose forged stainless steel for corrosion-prone environments.
- Inspect eye screws regularly for wear and deformation.
