4 leg bridle sling capacity: Key considerations for safe lifting
Understand how 4 leg bridle sling capacity is determined, including WLL, load angles, material choices, and best practices for safe lifting in industrial rigging and structural work.
4 leg bridle sling capacity is not a fixed value; it depends on the sling’s rated working load limit (WLL), leg angle, and hardware. For safe lifts, always reference the manufacturer’s WLL tables and apply angle-correction factors. When using a four-leg bridle, ensure even load sharing and keep the load geometry within the rated configuration.
Four-leg bridle sling capacity: core concepts
The term 4 leg bridle sling capacity refers to the maximum safe load a four-leg bridle sling assembly can support under specified conditions. Unlike a single strap, a four-leg configuration distributes weight across four legs, which can improve stability and reduce peak loads on any one component when rigged properly. However, capacity is still governed by the weakest element in the chain: the sling material, eye-end fittings, hardware, and the load geometry. The 4 leg bridle sling capacity is therefore not a single fixed figure but a function of the combined ratings of the sling and the rigging geometry. In practice, operators should consult the manufacturer’s WLL data and apply angle corrections for the actual lift. This ensures the 4 leg bridle sling capacity aligns with real-world demands and reduces the risk of unexpected sling failure under load.
Geometry and load distribution: why capacity isn't fixed
Capacity is inherently tied to how load is shared among the four legs. If one leg carries more than its peers due to uneven attachment points or a misaligned load, the effective 4 leg bridle sling capacity decreases. In well-balanced lifts, each leg should carry approximately one quarter of the total load when the load is centered and the attachment points are symmetrically placed. Real-world factors like shackle orientation, hook position, and sling angle influence this balance. The 4 leg bridle sling capacity hinges on achieving a symmetric load path; any deviation can change the distribution and reduce effective capacity.
Material and construction effects on WLL
Sling materials—polyester, nylon, aramid (Kevlar), and steel chain—offer different strengths, elongation characteristics, and abrasion resistance. In a 4 leg bridle sling setup, these material properties directly impact the 4 leg bridle sling capacity. For instance, aramid slings typically provide high strength-to-weight ratios, while steel chains offer rugged durability but heavier weight. Hardware such as eye bolts, shackles, and connectors also contribute to the overall WLL. The 4 leg bridle sling capacity is therefore a composite value reflecting both material performance and connection quality. When selecting a sling type, consider environmental exposure, heat, and potential chemical degradation that could alter the effective capacity of the system.
Load angle corrections and capacity reductions
The load angle—the angle between each leg and the vertical line—significantly affects the 4 leg bridle sling capacity. As the angle widens from vertical, the vertical force carried by each leg decreases, reducing overall capacity. Typical industry guidance uses angle-correction factors; common lift angles such as 45° to 60° can lead to noticeable reductions in capacity, sometimes by double-digit percentages. The 4 leg bridle sling capacity should be evaluated with the manufacturer’s angle correction tables and the actual geometry of the lift. Proper training ensures riggers apply these corrections consistently to avoid underestimating risk.
Real-world rigging scenarios: case studies
Consider a workstation lift where a heavy crate is rigged with a 4 leg bridle sling. In a balanced setup with symmetric attachment points, the 4 leg bridle sling capacity closely approaches the combined WLL when angle corrections are modest. If a hoist angle deviates and one leg experiences a higher tension due to a misalignment, the effective capacity can drop quickly, making a lift that seemed safe before the angle correction invalid. The key takeaway from real-world case studies is that a robust plan, including load measurements, point-by-point checks, and explicit authority to stop the lift if angles drift, dramatically improves outcomes. The 4 leg bridle sling capacity is maximized through careful planning and strict adherence to WLL data and corrective factors.
Inspection, maintenance, and certification considerations
A four-leg bridle sling setup is only as safe as its components. Regular inspection of each leg, eye fittings, shackles, and connectors is essential to preserve the intended 4 leg bridle sling capacity. Look for fraying, heat damage, corrosion, or deformation in hardware and ensure tags or certification documentation are up to date. Damaged components should be removed from service immediately. Storage and handling practices also affect long-term capacity: avoid sharp bends, excessive bending radii, and knotting—the 4 leg bridle sling capacity can degrade if the sling is deformed or misused.
Practical selection: choosing the right 4-leg bridle sling
Selecting the right 4 leg bridle sling involves balancing WLL, material behavior, and load geometry. Start with the expected load, determine the number of legs required to achieve safe distribution, and verify the leg lengths are compatible with attachment points. Factor in environmental conditions—heat, chemicals, and abrasion can reduce capacity. If the load is irregular, a more detailed rigging analysis may be required to ensure the 4 leg bridle sling capacity is sufficient. Always check the exact WLL at the specific angle you intend to use, and prefer equipment rated for the most severe condition anticipated.
Best practices for safe lifting with four-leg bridles
In practice, maximize the 4 leg bridle sling capacity by achieving symmetry in load paths and regularly training riggers on angle correction factors. Conduct a pre-lift review of the WLL data and verify all hardware is rated for the load. Maintain clear communication among team members and use a lift plan that documents leg length, attachment points, and expected angles. The 4 leg bridle sling capacity is reliable only when the gear is in good condition, properly rigged, and used within specified parameters.

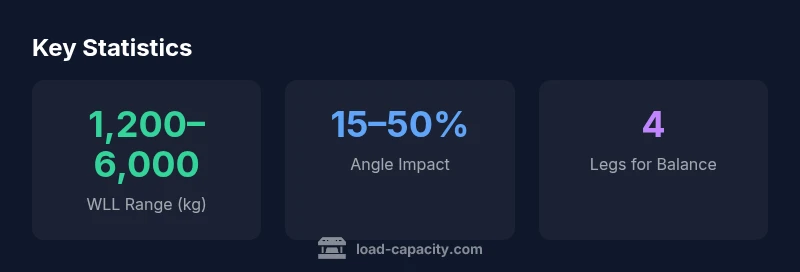

Estimated working load limits for common 4-leg bridle sling configurations
| Configuration | Estimated WLL Range (kg) | Notes |
|---|---|---|
| 4-leg polyester bridle sling | 1200–5000 | Depends on material and leg length |
| 4-leg nylon/polyester blend | 1000–4500 | Angle sensitivity moderate |
| 4-leg steel chain sling | 2500–7000 | Higher strength; heavier and rigid |
| 4-leg aramid (Kevlar) sling | 3000–7500 | High strength-to-weight; inspect closely |
Quick Answers
What defines the 4 leg bridle sling capacity?
The 4 leg bridle sling capacity is defined by the combined Rated Capacity of the sling and the rigging geometry. It depends on the material, hardware, leg length, and load angle. Always reference the manufacturer’s WLL data for the exact configuration you plan to use.
The capacity comes from the sling’s rating and how you set up the rigging. Check the manufacturer’s data for your exact setup and angle.
How do I calculate capacity for a given configuration?
Start with the sling’s WLL per leg, verify that the load can be shared evenly, and apply the angle-correction factors from the supplier's tables. For complex shapes, perform a rigging analysis or use a certified lifting plan.
Begin with the sling’s rating, check that all legs share load evenly, and apply angle corrections from the tables.
Can I use a four-leg bridle sling for a circular or irregular load?
Yes, but you must assess the load path and constraints to ensure each leg shares load as intended. Irregular shapes often require custom rigging or additional supports to preserve the 4 leg bridle sling capacity.
You can, but make sure the load path lets each leg share load properly; irregular shapes may need extra guidance.
What are common mistakes that reduce four-leg bridle sling capacity?
Common mistakes include unequal leg lengths, asymmetric attachment points, poor load alignment, and failure to apply angle corrections. Regular inspections and pre-lift planning reduce these risks.
Unequal legs, bad alignment, and skipping angle corrections are the usual culprits. Plan ahead and inspect.
Is training required for rigging with four-leg bridles?
Yes. Rigging with four-leg bridles involves understanding WLL, angle corrections, load distribution, and equipment inspection. Proper training improves safety and ensures adherence to standards.
Yes. Training covers ratings, angles, load paths, and inspections to keep lifts safe.
“The safest lifts with four-leg bridles come from strict adherence to rated capacities, balanced load sharing, and careful management of load angles.”
Top Takeaways
- Verify each leg shares load evenly before lift.
- Always consult WLL and angle factors from the manufacturer.
- Choose sling material matching load and environment.
- Inspect equipment before use and replace damaged parts.
