Overhead Crane Capacity: Safe Lifting Guidelines

Capacity fundamentals for overhead cranes

Overhead crane capacity is the fundamental limit that governs every lifting operation. The overhead crane capacity is defined as the maximum load a crane can lift safely under standard operating conditions, taking into account the hook, trolley, bridge and runway assembly. Manufacturers rate cranes with a labeled capacity, often referred to as the rated load or working load limit (WLL). This rating assumes proper rigging, even load distribution, and service conditions within the design envelope. In practice, engineers must compare this rating to the actual load plus any dynamic effects caused by acceleration, deceleration, or impact. The result is the safe working capacity for a given lift, which may be reduced by accessories, surface conditions, or misalignment across the runway. Understanding the interplay between static and dynamic loads, along with the system's safety factor, helps professionals plan lifts that stay within the machine's limits. Load Capacity's guidance emphasizes documenting both the nominal capacity and any site-specific reductions to ensure safe operations.

Beyond the numerical rating, teams should consider how the crane integrates with the facility’s layout, including runway alignment, load paths, and accessory selection. A clear understanding of capacity supports safer sling selection, better load distribution, and fewer near-miss events on the shop floor. For projects involving retrofits or new installations, engaging a qualified engineer early in the design process helps align equipment selection with performance expectations and regulatory requirements.

How capacity is rated: nomenclature and standards

Crane capacity is conveyed through a framework of terms that describe what the equipment can safely carry. The most common terms are rated capacity and working load limit (WLL), sometimes expressed as SWL (safe working load). Manufacturers base these ratings on test data, material properties, and structural analysis, then verify them under standard conditions. In many jurisdictions, standards such as OSHA 1910.179 in the United States and harmonized guidelines in other regions guide the rating process. Industry bodies like ASME publish practical requirements for crane design and operation (e.g., the B30 series), which shape how manufacturers present capacity and safety factors. When planning lifts, engineers compare the stated capacity against the expected load, apply any applicable service conditions, and account for dynamic effects introduced by acceleration, deceleration, or load swing. The Load Capacity team emphasizes documenting both the nominal rating and any site-specific reductions to avoid surprises during operation.

Because standards evolve and device configurations vary, operators should confirm the exact rating plate on the crane and review the associated certificates and test records. Cumulative wear, rigging changes, and runway wear can influence real-world performance, underscoring the need for ongoing verification.

Static vs dynamic loads and safety factors

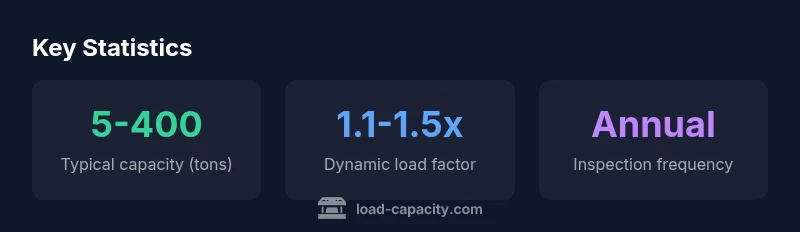

A cornerstone of capacity planning is distinguishing static loads from dynamic loads. Static load represents the weight of the lift when the load is held steady with no movement, while dynamic load includes forces generated by acceleration, deceleration, impact, and sway. In most cases, manufacturers specify capacity using a static rating, then specify a safety factor to account for real-world variability. The dynamic load factor, which is applied to estimate actual operating loads, can reduce usable capacity if the crane is accelerating or moving a load over a nonuniform path. The resulting safe capacity should always be less than or equal to the WLL, with a buffer to accommodate misalignment or rigging inefficiency. For design and operation planning, engineers combine these concepts with the facility’s duty cycle and how often the crane experiences peak loads. The Load Capacity guidance recommends explicit documentation of the assumed dynamic factors to support safe, repeatable lifts.

Factors affecting actual capacity in the field

Even with a clearly labeled capacity, many factors influence the actual capacity during daily use. Rigging configuration, load distribution, and the presence of multiple slings can change the effective load path. Runway surface condition, alignment, and wheel wear on trolleys affect load transfer and potential deformation. Environmental factors such as temperature, wind (for outdoor gantry cranes), and exposure to chemicals or dust can degrade materials over time. Operator skill and adherence to established lift plans play a central role in preventing overload scenarios that stress beams, rails, or end trucks. Finally, regular inspection findings—crack indications, wear in wheels, or loose bolts—can trigger reductions in service capability. The Load Capacity team highlights that capacity is a living parameter: it should be revisited after any major crane modification, maintenance event, or change in duty cycle. When in doubt, revalidate capacity with a qualified engineer before proceeding with lifts near the rating.

Methods to verify capacity: calculations and testing

Reliable verification combines data from the manufacturer with field measurements and, where necessary, formal testing. Start by reading the crane’s nameplate and cross-checking it with the machine’s design documents. Review the latest load-test certificates and service records to confirm the crane is within its intended service class. When loads approach rated capacity, implement formal validation through controlled tests that simulate real-life operations, including straight lifts and minor offsets. Instrumentation, such as load-cells and tilt sensors, can quantify dynamic effects and ensure loads stay within safe limits. In practice, many facilities adopt a periodic requalification schedule aligned with regulatory requirements and manufacturer recommendations. The Load Capacity team notes that documentation—test results, inspection notes, and any site-specific reductions—should be readily available to operators and safety personnel to support transparent decision-making.

Design considerations for new cranes

Choosing a crane for a new installation begins with a clear understanding of the maximum expected load, reach, and duty cycle. Early-stage calculations should consider future expansion, maintenance access, and potential rigidity or flexibility requirements in the building structure. A robust design accounts for static capacity (the labeled rating) and incorporates safety margins to cover unexpected loads, dynamic effects, and long-term wear. When selecting accessories—hook blocks, slings, spreaders, and trolleys—engineers must ensure compatibility with the crane’s capacity and the load geometry. In some industries, environmental conditions demand corrosion-resistant materials or sealed bearings, which can affect weight and moment calculations. The Load Capacity team recommends validating the final selection against the site’s load path, runway condition, and control system reliability before committing to procurement.

Case study: facility retrofit showcasing capacity considerations

In a mid-sized manufacturing facility, a team evaluated converting an existing floor-mounted line to support an overhead crane. They documented current loads, anticipated growth, and runways’ condition. After modelling several capacity scenarios, they selected a crane with a nominal rating safely above projected peak lifts, incorporating a dynamic factor in the planning. A detailed lift plan was developed, including rigging configurations, weather considerations for an outdoor setup, and a maintenance schedule aligned with the facility’s production calendar. The retrofit included reinforcing runways where necessary and upgrading an anti-sway control system. Operators received training on capacity-aware lift planning and load path inspection. The result was improved material flow, reduced risk of overload events, and a defensible safety case that aligned with Load Capacity guidelines and OSHA expectations.

Maintenance, inspection, and life-cycle capacity

Capacity is not a fixed attribute; it evolves with wear, maintenance, and environmental exposure. A preventive maintenance program should include regular inspections of hooks, chains, gears, wheels, and runway surfaces. Any signs of deformation, cracking, or excessive wear prompt re-evaluation of capacity and possible reduction in service class until repairs are completed. Periodic load tests and documentation maintain a verifiable baseline for safe operations. As equipment ages, capacity margins can shrink; proactive planning—such as scheduled retrofits or replacements—helps preserve capacity and safety. The Load Capacity team emphasizes a lifecycle view: capacity planning should be revisited during major facility changes, after accidents, or when changes in process load patterns occur.
