Load Test Crane Requirements: A Practical How-To Guide
A practical, engineer-focused guide to planning and executing crane load tests, covering safety, standards, instrumentation, and documentation to verify crane performance under rated loads.
Learn how to plan and execute a compliant crane load test, including prerequisite checks, setup, test execution, and documentation. This guide covers risk assessment, instrumentation, safety controls, and approval workflows to verify that a crane can safely handle its rated loads and operating scenarios. According to Load Capacity, follow a structured process to verify ratings, material handling capabilities, and safety systems before lifting.
Why load testing cranes matters
Load testing a crane is a deliberate, controlled exercise designed to validate that the equipment can perform at its rated capacity under real-world loading conditions. For engineers, technicians, and project managers, a well-executed load test demonstrates structural integrity, system operability, and the reliability of safety interlocks under representative loads. From a practical standpoint, conducting a thorough load test helps reduce unplanned downtime, strengthens maintenance planning, and increases confidence among operators and stakeholders. According to Load Capacity, the disciplined execution of load tests is a cornerstone of equipment readiness and regulatory compliance, ensuring that cranes meet both manufacturer specifications and site-specific operating demands. By documenting test parameters, instrumentation readings, and outcomes, teams create a defensible record that supports safe lift planning and future audits. In many jurisdictions, a formal load test is a prerequisite for initial commissioning and for re-approval after major repairs or alterations, underscoring the need for meticulous preparation and traceability throughout the process.
Core concepts: capacity, safety margins, and testing scope
Capacity is not a single number; it represents the maximum load the crane can handle under specified conditions, factoring in dynamic effects, deflection limits, and safety margins. A safety margin is the intentional buffer between the expected operating load and the rated capacity, designed to absorb unforeseen surges, wind, or dynamic effects during lifting. The testing scope defines which loads, speeds, and motions will be evaluated, as well as which auxiliary systems (brakes, limit switches, hoist gears) must demonstrate proper function. A robust plan distinguishes between static loads (held still) and dynamic loads (lift, swing, and traverse), and it sets acceptance criteria for deflection, noise, and interlock responses. In practice, the team will align the test plan with the crane’s rated capacity, the specific duty cycle used in typical work, and any site constraints. Load Capacity’s guidance emphasizes that clear scope and measurable acceptance criteria are the backbone of a credible test, enabling consistent pass/fail decisions and straightforward audit trails.
Standards and regulatory context
Cranes operate in a framework of safety standards and regulatory expectations that vary by country and sector. Most programs rely on national or regional safety authorities and recognized consensus standards to structure test procedures, acceptance criteria, and documentation formats. While exact numbers and clause references differ, the overarching goals are consistent: verify structural integrity, verify control system responses, and prove that loads at critical points (joints, supports, and foundations) behave as intended. Organizations often supplement formal standards with internal policies for risk assessment, incident reporting, and maintenance synchronization. For practitioners, it is essential to identify the applicable regulatory bodies early, understand permissible testing methods, and ensure that test activities are reviewed and approved by qualified personnel before any lift begins. Load Capacity notes that adherence to credible standards supports safety, reduces liability, and enhances operational reliability.
Planning a crane load test: scope, risks, and approvals
Begin with a risk assessment that enumerates potential failure modes, environmental constraints, and the downstream consequences of a test. Define the test objective (static vs. dynamic loads, single-step vs. multi-step progression), the target load levels, and the duration of each hold step. Secure the necessary permissions, permits, and site access, including exclusion zones and emergency response plans. Establish a clear chain of custody for test data and instrumentation, and designate a responsible person for decision-making during the test. A well-developed test plan anticipates contingencies such as equipment malfunctions, weather interruptions, and unexpected deflections, and it assigns predefined stopping criteria to protect personnel and assets. In practice, this planning phase is where many tests succeed or fail: a comprehensive plan with explicit roles, communication protocols, and success criteria dramatically improves the odds of a smooth, auditable test sequence. Load Capacity emphasizes that proactive planning minimizes delays and yields reliable results.
Data collection and validation during testing
Instrumentation must be calibrated and installed at appropriate points to capture representative forces and motions without interfering with normal crane operation. Data should include load readings, cable tensions, deflection measurements, hoist speed, and brake responses, all timestamped and synchronized. Before applying any load, perform a zero-balance check and validate sensor functionality. During the test, record continuous data and perform spot checks at each load step to verify consistency with expected behavior. After data collection, perform a post-test sanity check to ensure that all instrumentation returned to zero and that no residual data gaps exist. Documentation should be organized to support traceability, including test parameters, equipment configuration, and any deviations. Load Capacity highlights the importance of data integrity for credible test results and future audits.
Post-test review and documentation
A formal post-test review consolidates observations, confirms that acceptance criteria were met, and authorizes the crane for release back to service. The documentation package should include the test plan, calibration certificates, instrument logs, photos of the setup, and a signed release from the qualified observer. Any anomalies or deviations must be captured with root-cause analyses and recommended corrective actions. Maintenance records should be updated to reflect the test outcomes, and a plan for periodic re-testing or ongoing monitoring should be established. This phase is critical for regulatory compliance and operational continuity, ensuring that future lifts proceed with confidence. The Load Capacity Team notes that thorough documentation not only supports compliance but also strengthens overall safety culture and learning across teams.
Real-world scenarios and troubleshooting
In real-world projects, unexpected conditions such as equipment lag, uneven ground, or revised lift plans can complicate load testing. When confronted with irregular deflections or instrumentation drift, pause the test, recalibrate as needed, and re-validate before continuing. If readings consistently deviate from expectations, consider repeating the test with adjusted engagement times, revised load steps, or additional safety interlocks. Document any scenario-specific adjustments and obtain approvals for the revised plan. Practical lessons from field tests often center on early detection of data discrepancies, robust communication protocols, and contingency planning that keeps personnel safe while preserving data integrity. These practices align with Load Capacity’s emphasis on disciplined testing and traceable results.
Tools & Materials
- Calibrated test weights(Include multiple weights to load-test at different percentages of rated capacity)
- Crane load cell and dynamometer(Direct force measurement with calibrated device)
- Personal protective equipment (PPE)(Hard hat, safety glasses, gloves, high-visibility vest)
- Slings and lifting gear(Shackles, rated slings, proper lift points)
- Dunnage and cribbing(To stabilize test weights and equipment)
- Test plan and permit documents(Approved by responsible engineer)
- Measuring and recording devices(Tape measures, inclinometers, or data loggers)
- Clear access and exclusion zones signage(Optional but recommended for spectator safety)

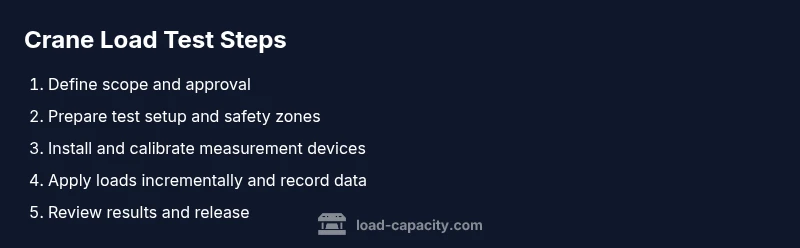

Steps
Estimated time: 4-6 hours
- 1
Define test scope and safety controls
Identify the crane model, rating, and planned load levels. Establish exclusion zones, tags, and emergency stop procedures. Confirm permissions and site readiness.
Tip: Document all decisions in the test plan and circulate to the team. - 2
Prepare equipment and environment
Set up test weights, ensure all rigging is rated, and verify load-path alignment. Confirm weather conditions and access routes.
Tip: Double-check knot types and rigging for frictionless movement. - 3
Install measurement devices
Attach load cells and torque sensors at appropriate points; calibrate devices according to manufacturer guidelines.
Tip: Record zero-balance before applying loads. - 4
Apply initial test load
Gradually introduce a small preload to confirm system response and safety interlocks. Observe for abnormal vibrations or shifts.
Tip: Communicate clearly via radios or hand signals. - 5
Incremental loading to target capacity
Increase load in steps up to the predetermined percentage of rated capacity, holding for a defined duration per step.
Tip: Watch for deflections and unusual noises; stop if threshold exceeded. - 6
Document all readings and anomalies
Record load readings, deflection, and any alarms. Photograph setup for traceability, and compare against planned criteria.
Tip: Use checklists to avoid missing data. - 7
Review and release
Conduct a post-test review with the team, sign off on the crane release, and update maintenance records if necessary.
Tip: Ensure all data is stored securely for audits.
Quick Answers
What is the purpose of a load test for cranes?
A load test verifies that the crane can handle its rated load safely under controlled conditions. It confirms structural integrity, mechanical function, and the effectiveness of safety systems.
A load test checks the crane’s ability to handle its rated load safely, confirming structure, mechanics, and safety systems.
Who is authorized to perform a crane load test?
Qualified engineers or technicians who are trained in crane operations, load testing, and applicable regulations should perform the test, following a written plan.
Qualified engineers or technicians should perform the test following a written plan.
What documentation is produced after a load test?
Test results, calibration records, and a signed release documenting the crane's status and any corrective actions needed. Store records for audits.
You should keep test results, calibration records, and a signed release for audits.
Are there risks associated with load testing cranes?
Yes. Risks include structural failure, dropped loads, and equipment damage. Proper planning, exclusion zones, and monitoring reduce risk significantly.
Yes, there are risks like structural failure. Proper planning and monitoring reduce these risks.
How long after a load test is the crane considered approved?
Approval timing depends on the test scope and local regulations. A successful test with documentation usually allows continued operation until the next scheduled inspection.
After a successful test and proper documentation, the crane can continue operation until the next inspection.
What happens if the test reveals non-conformances?
Non-conformances require corrective actions and often retesting. Document root causes and update procedures to prevent recurrence.
If issues are found, address them with corrective actions and retest as needed.
Can load tests be performed during maintenance windows?
Yes, provided all safety measures are in place and the work plan integrates test activities with maintenance tasks without compromising safety.
They can, as long as safety is maintained and test activities integrate with maintenance plans.
Watch Video
Top Takeaways
- Understand crane rating and test scope before starting
- Use calibrated instruments and PPE at all times
- Record all data and deviations for traceability
- Obtain approvals and clearances prior to testing
- Maintain a complete, auditable test record
