How to Calculate Crane Load Capacity
Learn step-by-step how to calculate crane load capacity, including radius, boom angle, and safety factors. This guide helps engineers, technicians, and contractors plan lifts safely and ensure compliance.
To calculate crane load capacity, start with the crane’s rated capacity and then adjust for the current configuration. Include radius, boom length, and angle, then apply the load moment and lever-arm effects. Apply the appropriate safety factor and check against the manufacturer’s capacity chart. Verify results with a formal lift plan.
Why Accurate Crane Load Capacity Calculations Matter
Choosing to lift with a crane involves risk. The phrase how to calculate load capacity of crane is not just about avoiding overloads; it’s about safeguarding workers, equipment, and schedules. According to Load Capacity, accurate capacity calculations underpin every safe lifting plan and help prevent accidents that can result in injuries and costly downtime. In practice, capacity depends on configuration, radius, boom length, attachments, and operating conditions. This isn’t a single number; it changes with how the crane is set up, the load attachment, weather, and ground conditions. When you start a lift, you are responsible for ensuring the load does not exceed what the crane can safely handle at that radius and angle. With a clear calculation, you can align expectations, reduce risk, and document compliance for audits. The goal is a repeatable method that engineers, technicians, and operators can apply across projects, improving safety and efficiency over time. The Load Capacity team emphasizes transparent documentation and ongoing verification as the lift plan evolves.
Key Concepts Behind Capacity Assessment
A robust capacity calculation combines the crane rating, radius, boom length, and configuration with real-world factors like outrigger setup and weather. The objective is to determine a safe lift envelope for the given setup. By grounding the calculation in manufacturer charts and industry guidelines, teams minimize surprises during the lift and create a verifiable trail for audits. The process is iterative: as conditions change, recalculation ensures ongoing safety. Throughout, maintain a high level of communication among the rigging team, operator, and site supervisor to prevent misinterpretation of the capacity limits. This approach is central to responsible lifting and aligns with best practices advocated by Load Capacity.
The Role of Inputs: Radius, Boom, and Attachments
Inputs such as the distance from the crane's centerline to the load (radius), the boom length, and the angle of elevation directly influence capacity. Attachments (slings, hooks, blocks) add or subtract from the effective capacity. Ground conditions, outrigger configuration, and any counterweights further modify the safe lifting envelope. The goal is to capture all factors that affect the load moment and to reference the crane’s rated capacity for the specific configuration. Clear input documentation reduces the chance of misinterpretation during the lift plan.
Example Scenario: A Hypothetical Mobile Crane
Imagine a hypothetical mobile crane rated for a certain load at a nominal radius. At a 12-meter radius with a 45-degree boom angle, the capacity may reduce compared to a shorter radius. Suppose the rated capacity chart shows 40 tonnes at the base radius but only 25 tonnes at the 12-meter radius. If the planned load is 20 tonnes, the operator must verify that the moment, attachments, and other factors keep the resulting load within the chart’s envelope. This example demonstrates that capacity isn’t fixed—it’s a function of configuration, geometry, and conditions, all of which must be tracked in the lift plan. The same approach scales to larger cranes and more complex lifts.
Safety Strategies and Compliance
Adherence to safety factors and regulatory guidance is essential. Use the manufacturer’s charts as the primary reference, then apply site-specific safety margins and engineering judgment. Document every step of the calculation within your lift plan, including inputs, assumptions, and verifications. Regularly review capacity calculations after major changes to the setup or the load. The aim is to produce a defensible, auditable record that supports safe lifting operations.
Practical Guidelines for Real-World Lifts
In the field, maintain a simple, repeatable workflow: identify the rated capacity for the exact configuration, measure radius and angles with appropriate tools, compute the moment, cross-check with charts, and finalize with a lift plan. When in doubt, pause and consult a qualified engineer. Clear communication and meticulous documentation reduce risk and improve overall site safety. The Load Capacity team recommends keeping capacity records accessible for review and training.
Documentation and Verification Practices
A well-structured lift plan includes: crane model, serial and capacity chart, radius, boom angle, attachments, outriggers status, weather notes, and a signed confirmation. Verification steps should include a pre-lift inspection, load weight check, and a final review by a responsible supervisor. If any factor raises concern, stop the lift and reassess with updated calculations. This disciplined approach supports safety and compliance across projects.
Adapting Calculations for Tower and Rack Lifts
Different crane families require different considerations. Tower cranes may rely more on structural redundancy and wind loading, while mobile cranes emphasize outriggers, ground bearing, and load distribution. For each type, use the most relevant capacity chart, account for dynamic effects, and adjust the lift plan accordingly. This adaptability ensures the core method remains valid across diverse lifting scenarios.
Common Pitfalls to Avoid
Avoid assuming the rated capacity applies to all configurations. Do not omit outriggers status, ground conditions, or attachment effects. Do not rely on memory; always reference the official charts and document the calculation. When in doubt, escalate to a qualified engineer or your organization’s safety team. Consistent practice reduces near-misses and improves project outcomes.
Involving an Engineer: When it’s Necessary
Critical or unusual lifts should involve a certified professional engineer, especially for high-risk or novel configurations. An engineer can validate the calculation, review the lift plan, and help with any required load testing or additional protective measures. The Load Capacity Team emphasizes seeking expert input when loads approach limits or when unique site conditions arise.
Tools & Materials
- Crane rated capacity chart/manual(Current configuration and WLL chart for the exact crane model)
- Radius/boom angle measurement tool(Inclinometer or angle finder; record at lift height)
- Measuring tape or laser measure(Accurate distance from center to load)
- Load weight source (weights, scales)(Verify actual load weight before lift)
- Calculator or lift planning software(Compute moments and compare to charts)
- Rigging hardware inspection kit(Inspect slings, hooks, shackles for wear)
- Personal protective equipment(Helmet, gloves, safety footwear)
- Lift plan documentation sheet(Record inputs, factors, and approvals)

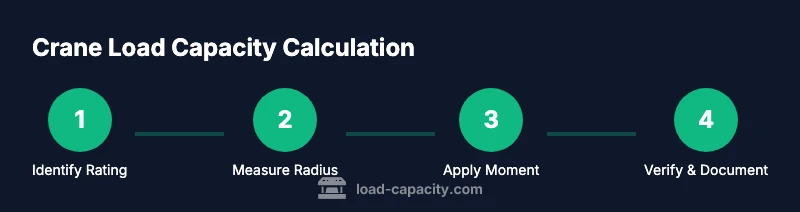

Steps
Estimated time: 25-40 minutes
- 1
Identify rated capacity and configuration
Locate the crane’s capacity chart for the exact configuration and note the base rating at the current setup. Confirm whether attachments or auxiliary equipment alter the WLL. This establishes the reference point for all subsequent calculations.
Tip: Double-check the model, serial number, and configuration flags on the capacity chart before proceeding. - 2
Measure radius and boom angle
Record the horizontal distance from the crane center to the load (radius) and the boom angle at lift height. These two values drive the reduction in capacity from the base rating and must be measured accurately.
Tip: Use a reliable inclinometer and a laser rangefinder if available. - 3
Determine load moment and effective load
Calculate the load moment by multiplying the load weight by the radius. Adjust for any attachments or offsets that shift the center of gravity. This helps compare against the chart’s moment envelope.
Tip: If the load isn’t a simple point, use a CG estimator or attach a load cell for accuracy. - 4
Apply safety factors and regulatory checks
Incorporate project-specific safety margins and any local regulatory requirements. The safety factor protects against uncertainties in weight, weather, and dynamic effects during lifting.
Tip: Document the factor chosen and its justification in the lift plan. - 5
Cross-check against the manufacturer chart
Compare the calculated moment and load against the manufacturer’s chart for the exact radius and angle. Ensure the result sits within the chart’s permissible envelope.
Tip: If the calculation nears the limit, revise the lift plan or choose a closer radius. - 6
Prepare lift plan and approvals
Document inputs, assumptions, and verifications in the lift plan. Obtain approvals from the site supervisor and, if required, a safety officer or engineer.
Tip: Include a contingency plan for unexpected conditions or weight changes. - 7
Finalize documentation and sign-off
Ensure all parties review and sign the lift plan, and store records for audits. Regularly revisit the plan if conditions change during operations.
Tip: Keep digital and physical copies accessible at the lift site.
Quick Answers
What is the difference between WLL and actual capacity?
WLL is the maximum load the crane is designed to lift under standard conditions. Actual capacity varies with radius, boom angle, attachments, and ground conditions, so you must refer to the chart for the specific setup.
WLL stands for working load limit, which is the maximum safe load under standard conditions. Real-world capacity changes with radius, angle, attachments, and ground conditions, so always check the chart for your exact setup.
Why does radius reduce crane capacity?
As the load moves farther from the crane’s center, the moment increases, reducing the allowable load. This geometric effect is why the same load is often lifted safely at a closer radius but not at a greater distance.
The farther the load is from the crane, the greater the moment. That reduces the safe capacity at larger radii, so you must recalculate for each radius.
Do I need to factor outriggers and ground conditions?
Yes. Outriggers and ground bearing can significantly change capacity. Stable, level ground and proper outriggers are essential for valid calculations and safe lifts.
Outriggers and ground conditions matter a lot. Use stable, level ground and ensure outriggers are correctly deployed before lifting.
What should be included in a lift plan?
A lift plan should include crane configuration, rated capacity at the given radius and angle, load weight, attachments, outrigger setup, weather notes, and approvals from responsible personnel.
A lift plan must cover the crane setup, capacity at the current radius, load weight, attachments, outriggers, weather, and approvals.
When should a professional engineer be consulted?
For complex lifts, unusual configurations, or loads near the capacity limit, involve a qualified engineer to validate calculations and documentation.
Bring in a certified engineer if the lift is complex or near capacity to verify calculations and the plan.
How often should capacity calculations be reviewed?
Revisit capacity calculations whenever conditions change (radius, angle, load, weather) or after equipment modifications. Regular reviews improve safety and compliance.
Recheck calculations whenever anything changes—radius, angle, load, or weather—to keep lifts safe and compliant.
Watch Video
Top Takeaways
- Identify the rated capacity for the exact setup.
- Measure radius and boom angle accurately.
- Apply safety factors and verify with manufacturer charts.
- Document the lift plan and approvals.
- Consult a qualified engineer for complex or high-risk lifts.
